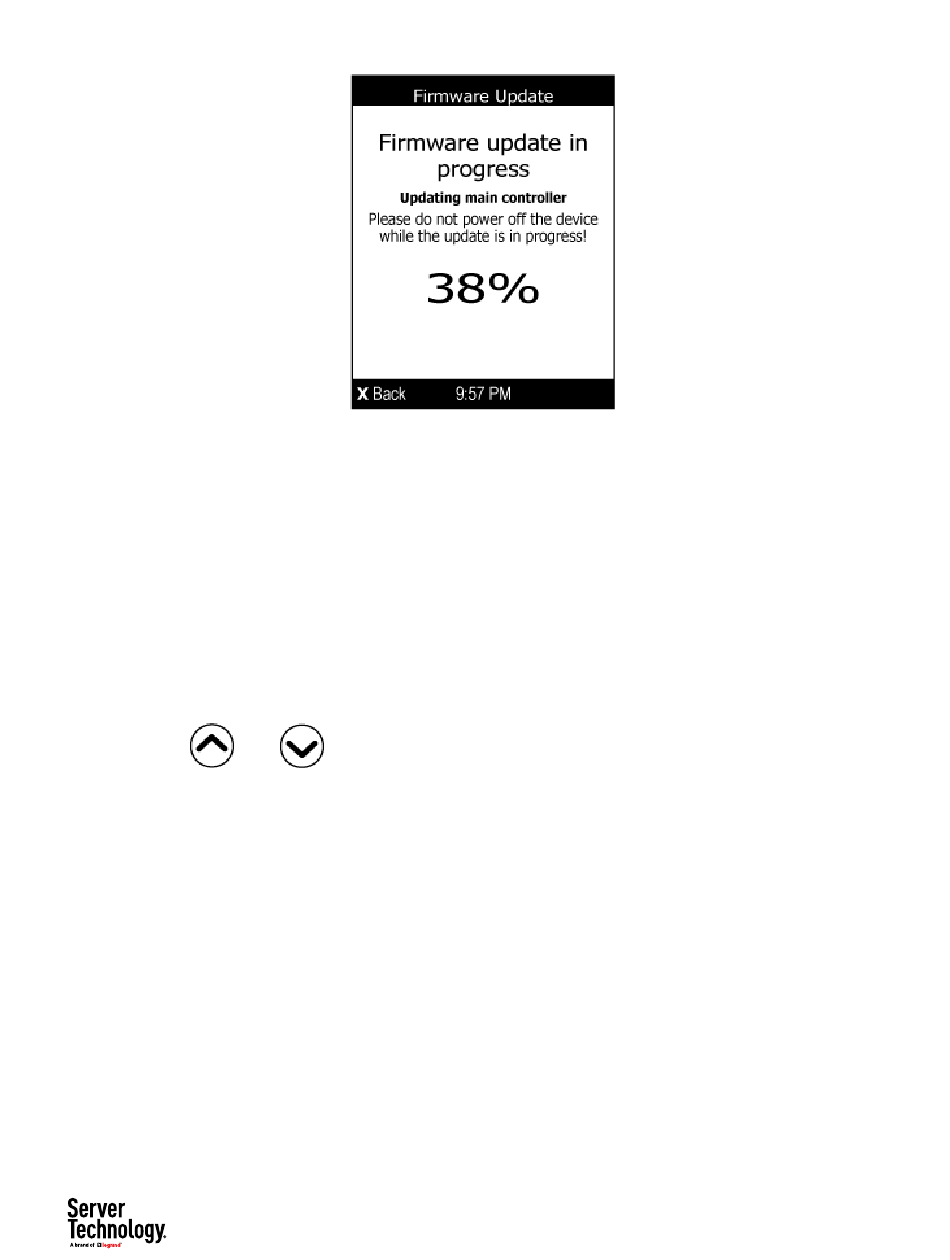

In the end, a message appears, indicating whether the firmware upgrade succeeds or fails.

Manually Changing Zero U LCD Orientation

A Zero U model has a tilt sensor that can detect the orientation of its physical device to automatically
adjust ts LCD content's orientation.
If the LCD's orientation does not meet your need, you can manually configure it.
The factory default is automatic orientation.
▶
To set up the LCD orientation:
1) Press and
2) If the current LCD orientation does not meet your need, repeat the above step until the orientation
you preferred is displayed.

Reset Button

The reset button is located inside the small hole labeled RESET near the display panel.
Pressing this reset button restarts the Xerus software without any loss of power to outlets.

Circuit Breakers

PRO4X models rated over 20A (North American) or 16A (international) contain overcurrent protectors
for outlets, which are usually branch circuit breakers. These circuit breakers automatically trip
(disconnect power) when the current flowing through the circuit breaker exceeds its rating.
simultaneously until you see the LCD shows "Fixed Orientation".
