PDU Linking at the Rack

PDUs with the iX9 controller have a PDU Link port that supports directly connecting two same model,
same firmware version PDUs in a primary-link configuration right at the rack. This connection also
allows for power-sharing between the two PDUs. To allow PDU linking of the connected PDUs, complete
the configuration using the PDU front panel display of the Primary unit. You do not have to say Yes to
PDU Linking to use power sharing.
▶
Requirements
• •
2 PDUs with iX9 controllers
• •
Ethernet cable
▶
To configure PDU Linking at the rack:

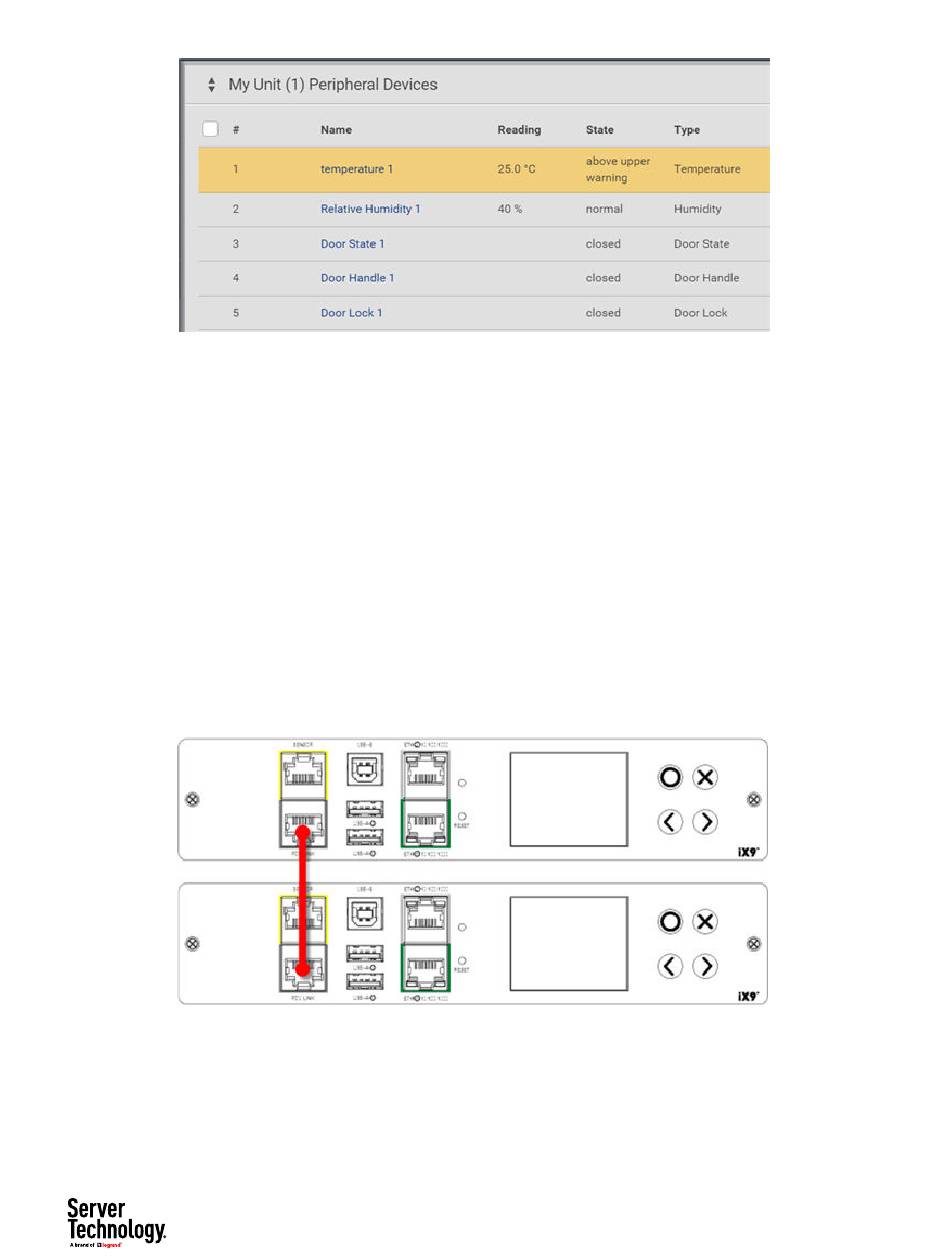

1) Connect the PDU Link port of the first iX9 controller to the PDU Link Port of the second iX9 controller
using a standard network patch cable.
2) The units will detect the connection and display messages on the front panels.
3) On the front panel display of the PDU you want to designate as Primary, select Yes to confirm the
Primary Unit setting.
