Door Status and Control

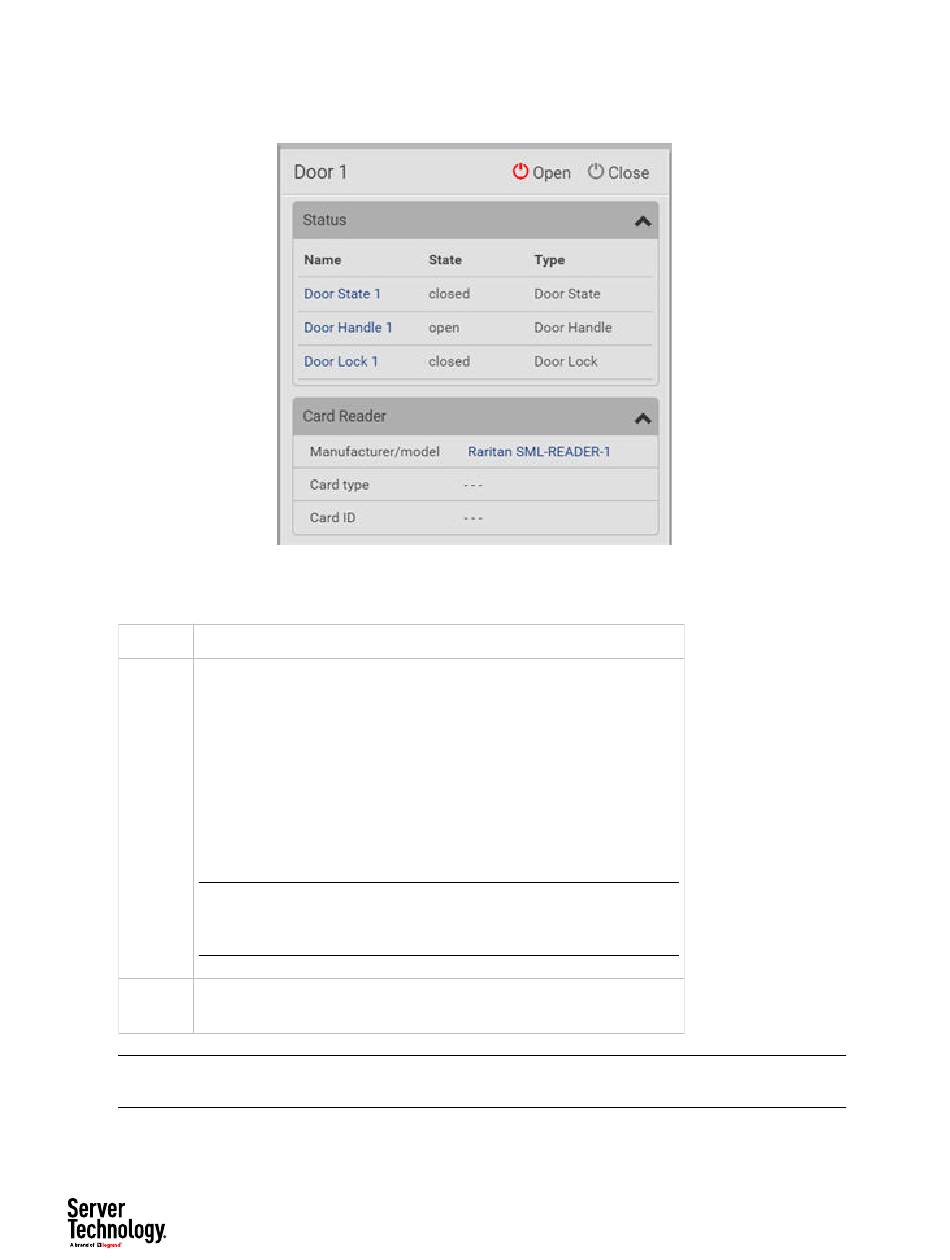

After configuring the door handle type properly, you can see the Status and Card Reader sections.
▶
To view the status of the door and card reader:
Section Description
Status
Shows all sensor states detected by DX2‑DH2C2, including:
• •
Door State: States of contact closure sensors connected to DX2‑DH2C2.
Contact closure sensors detect whether the door is physically opened or
closed.
• •
Door Handle: States of door locks integrated with the door handles.
• • Door Lock: States of the door handle locks.
Door locks and door handle locks are interrelated so their states are
changed one after another. The door handle lock is opened first and
then the door lock.
Exception: If you manually open the door lock with the key shipped
with your door handle, the Door Lock state will enter the open state
while the Door Handle Lock state remains closed.
Card
Shows the data of the smart card scanned by the internal or external card
reader accompanying each door handle connected to DX2‑DH2C2.
Reader
Tip: All sensors of the connected door handles are also listed on the Peripherals page. The same Card
Reader information is also available on the Card Reader page.
