Ocp Trip-Cause Waveform - LEGRAND Server Technology PRO4X User Manual

▶
Front panel display:

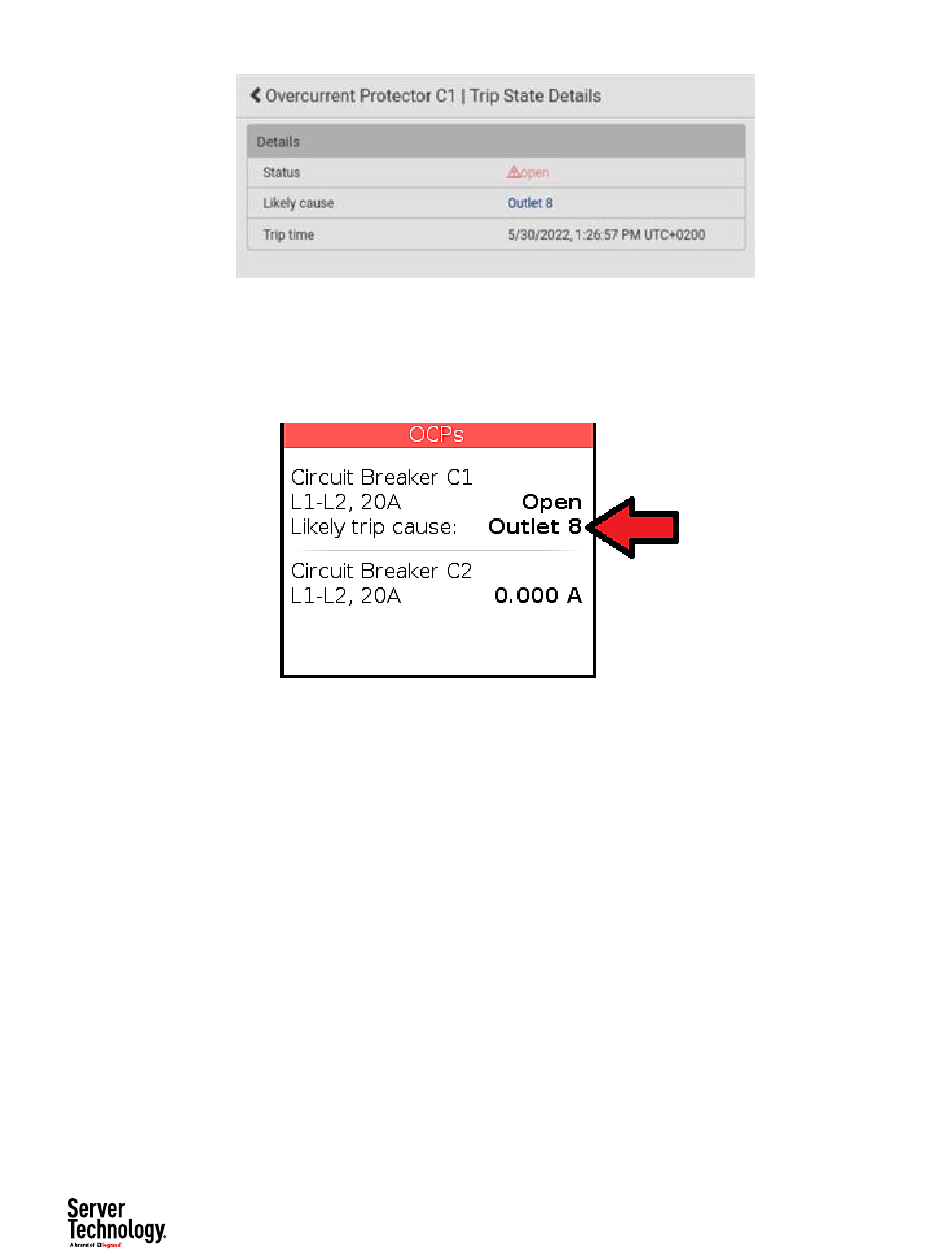

The 'Likely trip cause' message will be displayed for an "open" OCP, indicating which outlet may cause
the OCP-tripped event.
▶
CLI:
• •
Perform the show ocp command in the CLI. If any OCP has tripped, then the outlet that may cause
this event is shown in parentheses in the State field of the tripped OCP.

OCP Trip-Cause Waveform

A waveform is captured for the outlet that showed the highest peak current value when the trip is
detected. The data captured at the time of the trip event is stored persistently and kept until next trip
event.
▶
To view the waveform:
1) In the OCP page, click the OCP with Open status.
• • The individual OCP page opens. A Details link is available if a trip-cause has been detected.
