To add an outlet group:

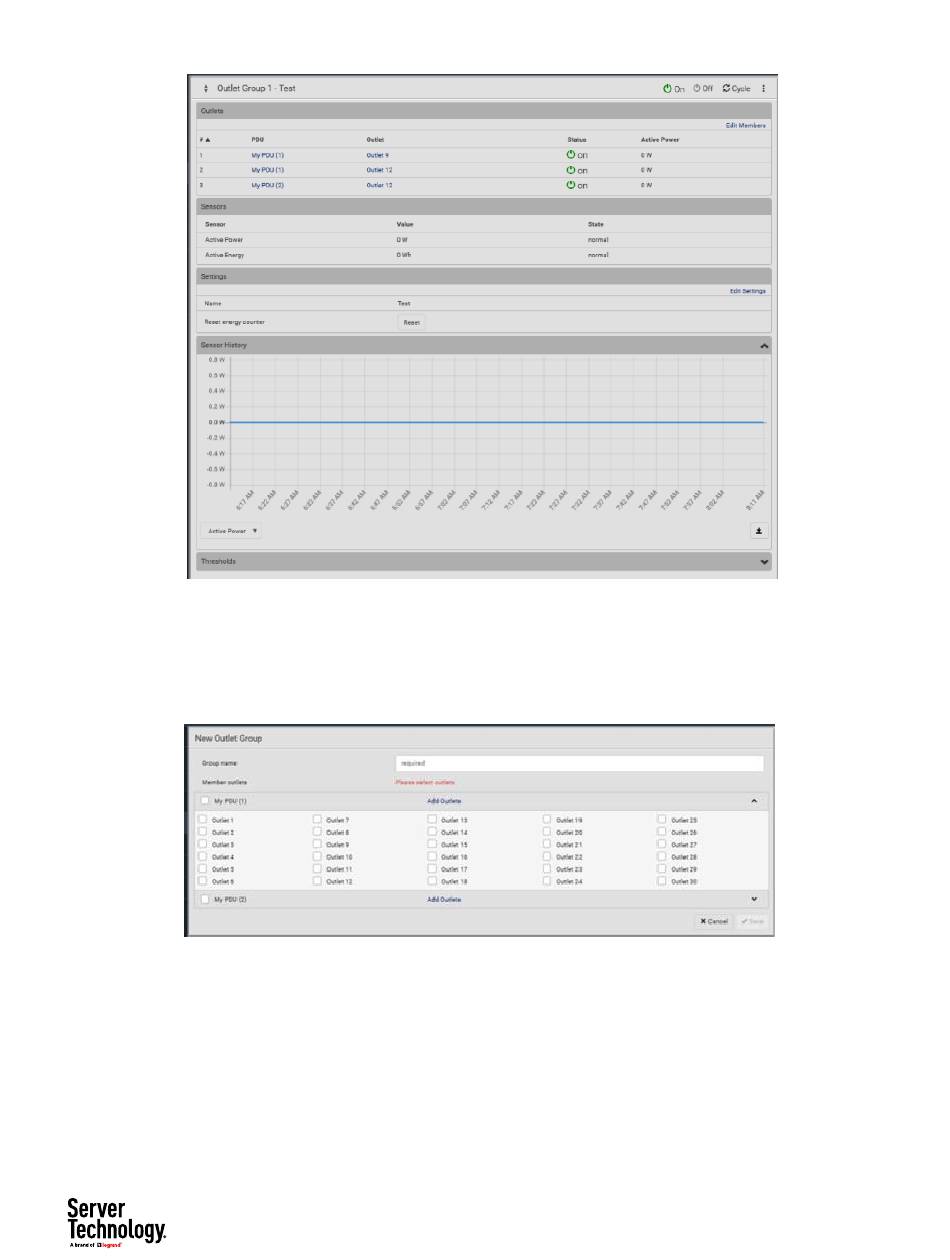

1) On the Outlet Groups page, click Add Group. The New Outlet Group page displays, defaulting to the
outlets in the primary unit.
2) Type a name for the new outlet group.
3) Select individual member outlets for the primary as shown in the default page, or to select all
outlets for the primary, select My PDU (1).
4) To select individual member outlets for the link unit My PDU (2), click Add Outlets. To select all
outlets for the link unit, select My PDU (2). Note: Link units have to be selected by name to display
their outlets.
5) Click Save.
