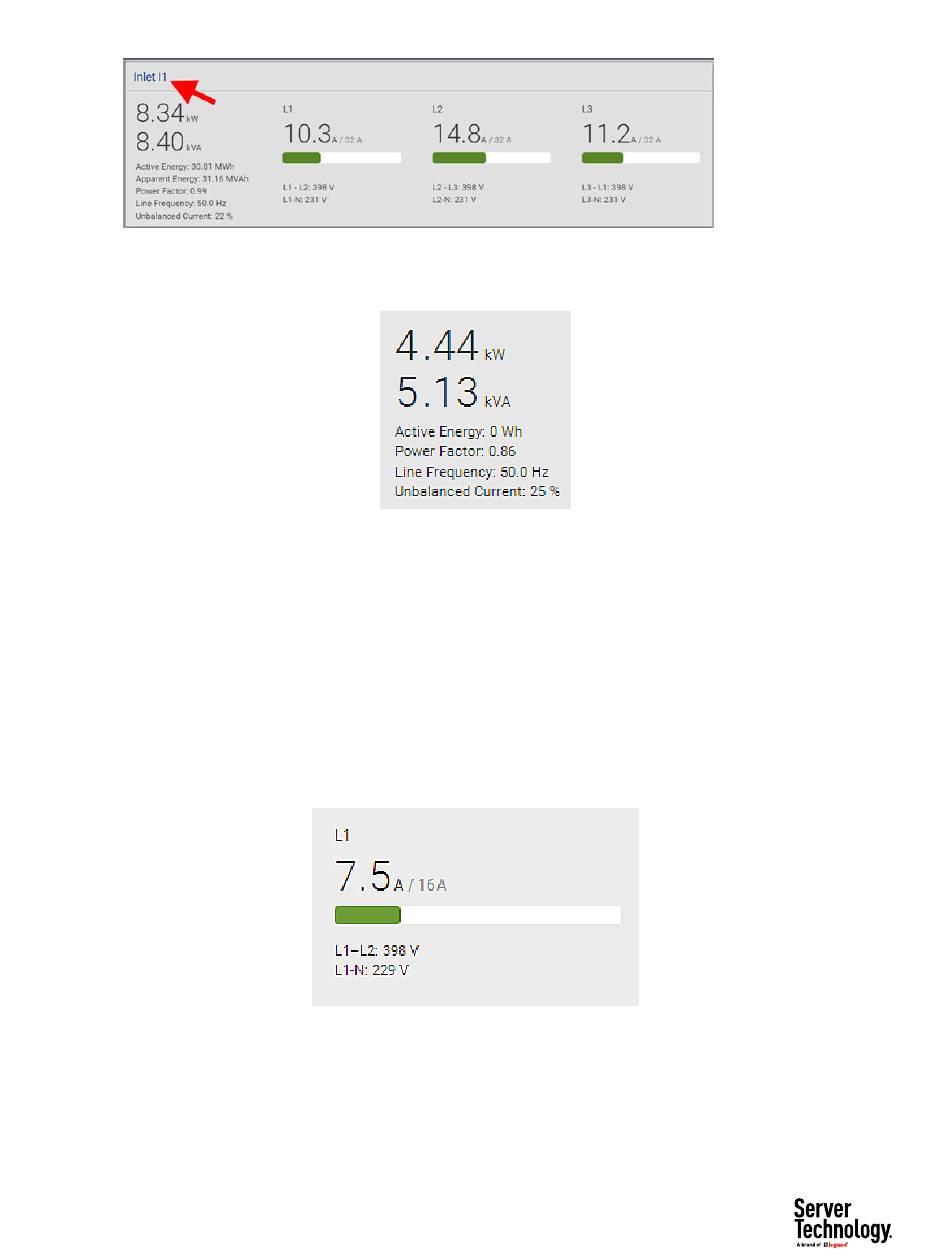

Left side - generic inlet power data:
The left side lists all or some of the following data. Available data is model dependent.
• • Active power (kW or W)
• •
Apparent power (kVA or VA)
• •
Active energy (kWh or Wh)
• •
Power factor
• •
Line frequency (Hz)
• • Unbalanced current (%) - model dependent
▶
Right side - inlet's current and voltage:
The right side shows the current and voltage data per phase. For a single-phase device, it shows only
one line, but for a three-phase device, it shows three lines (L1, L2 and L3).
Inlet data from top to bottom includes:
