Z Coordinate Format - LEGRAND Server Technology PRO4X User Manual

▶
Other operations:

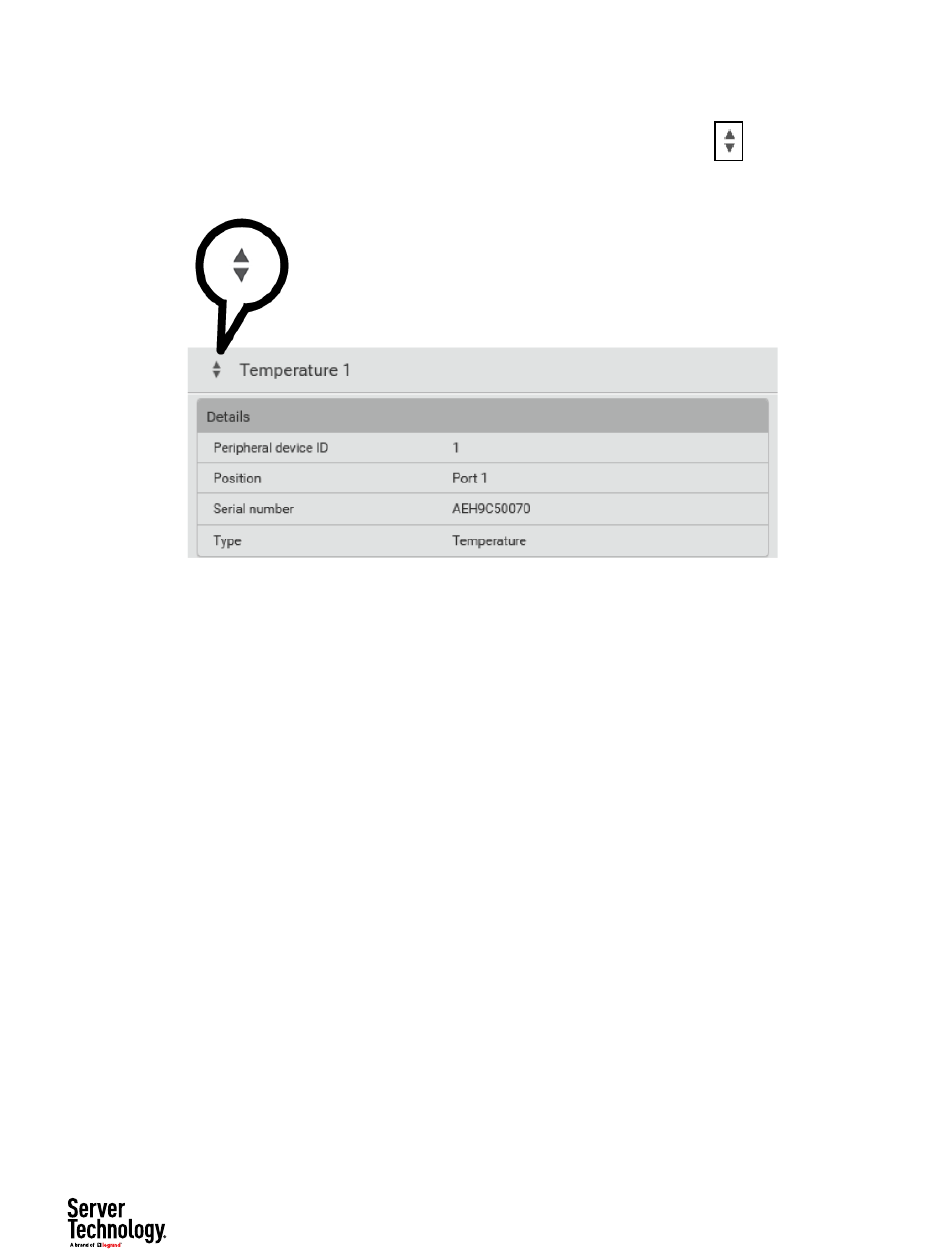

You can go to another sensor's or actuator's data/setup page by clicking the selector
left corner.

Z Coordinate Format

Z coordinates refer to vertical locations of environmental sensor packages. You can use either the
number of rack units or a descriptive text to describe Z coordinates.
▶
To configure Z coordinates:
1) Determine the Z coordinate format in the main Peripheral Device Setup page. Available Z coordinate
formats include:
• • Rack Units: Measurement of the height is in standard rack units. Number from 0-60.
• Free-form: Enter any alphanumeric string to describe the Z coordinate. Up to 24 characters. •
Example, "Top of Rack", "Bottom of Rack".
2) Enter the Z coordinates in the individual sensor settings.
Sensor/Actuator Location Example: X, Y, Z Coordinates
Use the X, Y and Z coordinates to describe each sensor's or actuator's physical location in the data
center.
The X, Y and Z values act as additional attributes and are not tied to any specific measurement scheme.
Therefore, you can use non-measurement values.
