DSAM LED Operation

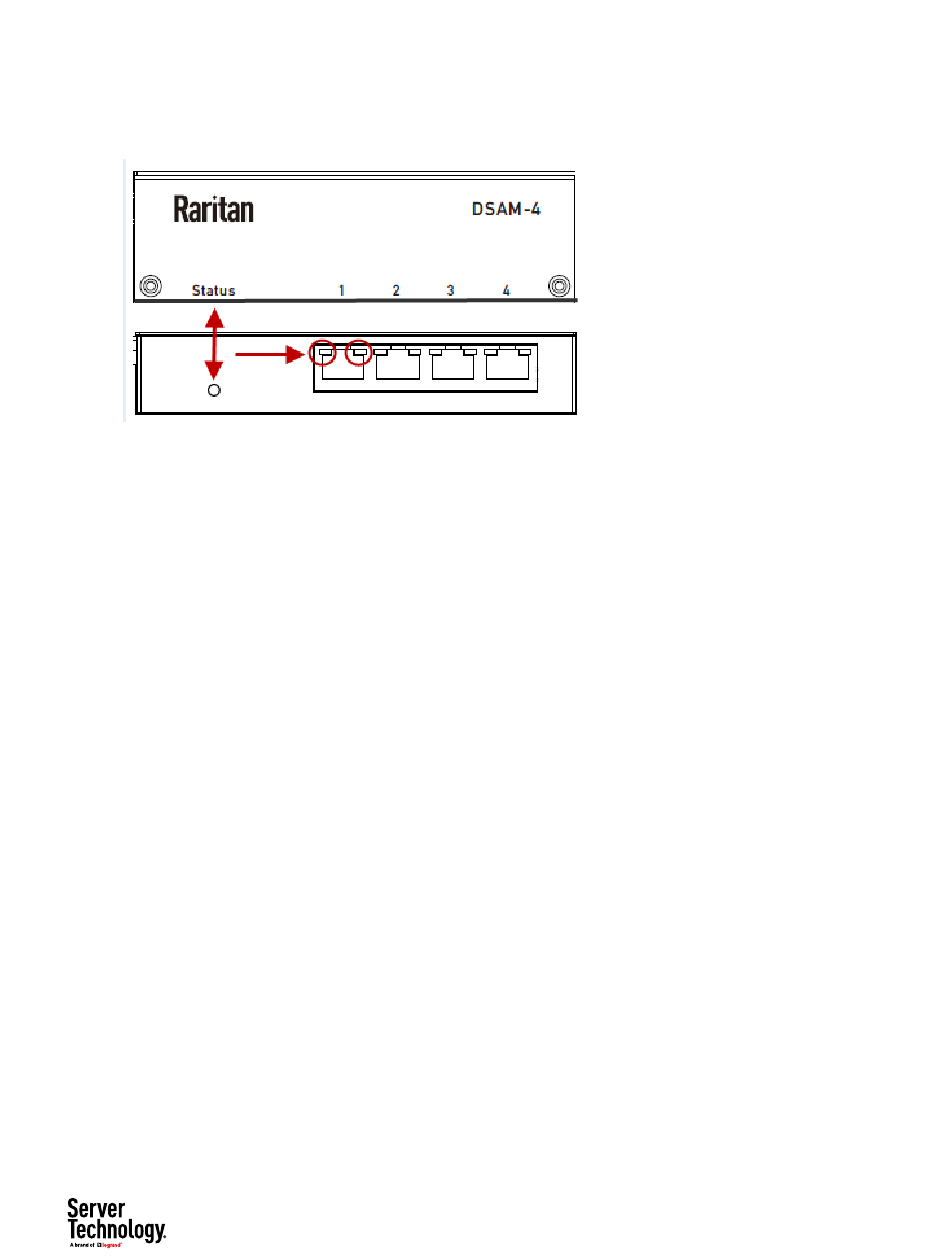

The DSAM unit has one LED for status, and 2 LEDs on each port.
▶
Status LED:
The Status LED is labeled on the unit front. Light is on back. The Status LED gives information at bootup
and upgrade.
• •
Green LED - Slow blink: DSAM booting up but not controlled by PRO4X.
• •
Blue LED - Slow blink: DSAM controlled by PRO4X.
• •
Blue LED - Fast blink: Firmware upgrade in progress.
▶
USB Port LEDs:
Each USB port has a left Green LED and a right Yellow LED.
• • Green LED: Port is set as DCE
• •
Yellow LED: Port is set as DTE
• •
LEDs off: Port is set as AUTO

View DSAM Serial Ports

When a DSAM unit is connected to the PRO4X, a DSAM Serial Ports page is available.
