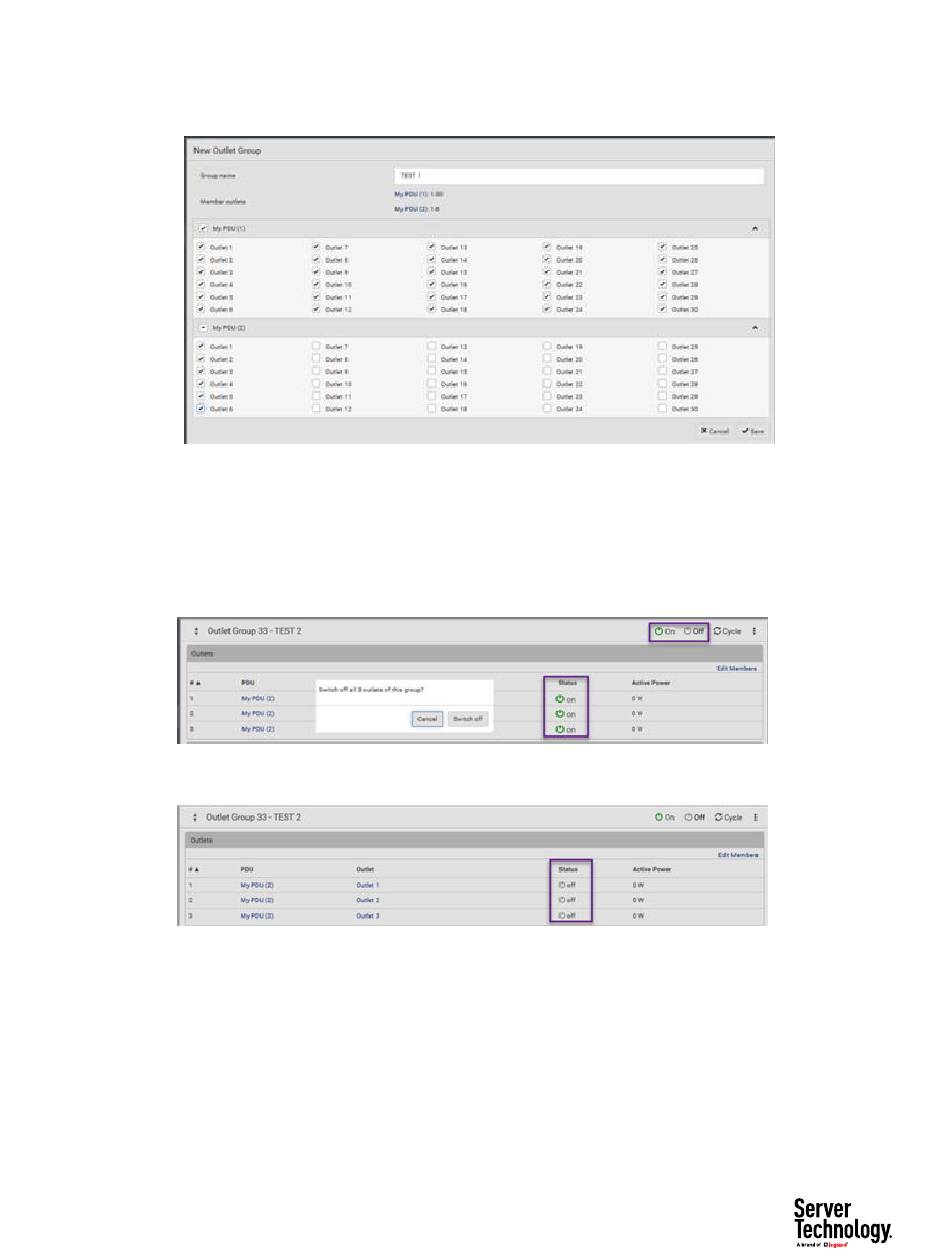

The following example shows the outlet group named "TEST 1" with all outlet members
selected for the primary unit and outlet members 1-6 selected for the link unit.
Controlling Outlets in Groups
1) From the Outlet Groups page, select an outlet group by name.
2) Click the desired control: On, Off, or Cycle. This example shows three outlets in status On. When Off
is clicked, a prompt appears to confirm applying the action to all outlets in the group.
3) Click the Switch button.
4) The status of the outlets in the group appears on the Outlets Group page as Off.

Pairwise Outlet Groups

The PDU Linking feature offers the "pairwise" functionality for outlet grouping. Pairwise creates auto-
named pairs of outlet groups that span multiple PDUs (primary and link units) using the same outlet
label. You can automatically create multiple outlet groups, each containing one pair of outlets between
linked PDUs that can be controlled as an outlet group.
Example: Chain with primary and a single link unit
