Installation Instructions
In-back/Out-back Cooling Kit for D5h/D6h and
D7h/D8h Enclosures VLT® Series FC 102, FC 202,
and FC 302
1.1 Description
The back-channel cooling (in-back/out-back) kit is designed for
the D5h/D6h and D7h/D8h frequency converters. Instead of
airflow entering the bottom of the unit and exiting the top,
the kit directs air in from and out of the back of the unit.
1.2 Kit Part Numbers
Part number
Kit description
176F3530
In-back/out-back cooling kit for the D5h/D6h
176F3531
In-back/out-back cooling kit for the D7h/D8h
Table 1.1 Part Numbers for D5h/D6h and D7h/D8h In-back/
Out-back Cooling Kits

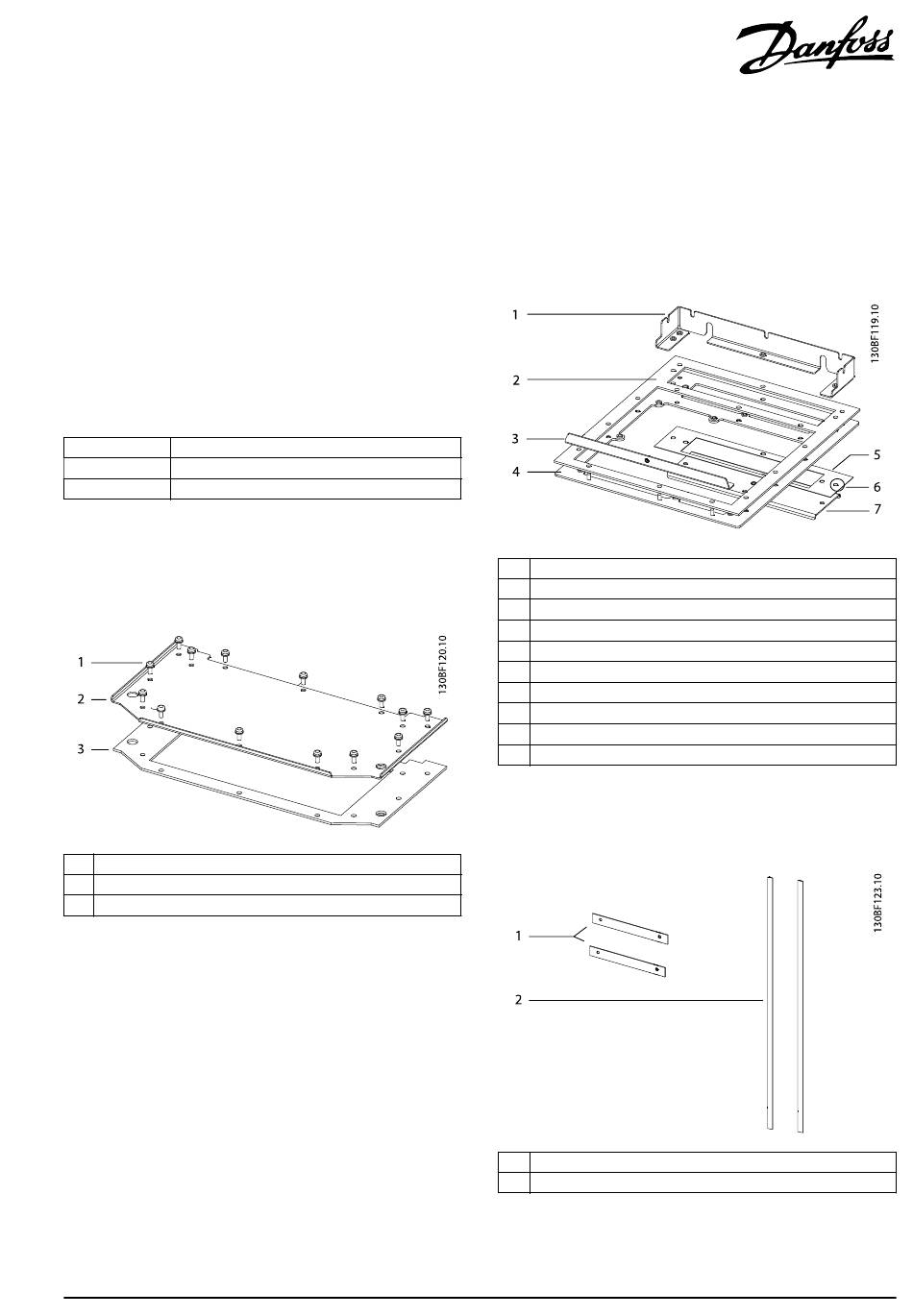

1.3 Items Supplied
Top plate assembly
1
M5x12 screw/washer (12) D5h/D6h or (18) D7h/D8h
2
Top plate (1)
3
Gasket between top plate and frequency converter (1)
Illustration 1.1 Top Plate Components
Base plate assembly
1
2
3
4
5
6
7
Illustration 1.2 Base Plate Components
Enclosure gaskets
1
2
Illustration 1.3 Gasket Set for Enclosure
Danfoss A/S © 10/2016 All rights reserved.
Bottom bracket (1)
Gasket between base plate and frequency converter (1)
Front brace (removed from base of frequency converter)
Base plate (1)
Gasket, bottom cover (1)
Outer hole in bottom cover gasket
Bottom cover (1)
M5 nut (8)
M5x16 Torx screw (2)
M5x12 screw with washer, (5) D5h/D6h or (7) D7h/D8h
Gasket, slot (1) D5h/D6h or (2) D7h/D8h
Gasket, strip (2)
MI70F102

Advertisement

loading

Summary of Contents for Danfoss 176F3530

  • Page 1 Top plate (1) Gasket between top plate and frequency converter (1) Illustration 1.1 Top Plate Components Gasket, slot (1) D5h/D6h or (2) D7h/D8h Gasket, strip (2) Illustration 1.3 Gasket Set for Enclosure Danfoss A/S © 10/2016 All rights reserved. MI70F102...
  • Page 2: Discharge Time

    UPS, and DC-link connections to other frequency converters. • Wait 20 minutes for the capacitors to discharge fully. • Measure the voltage level to verify full discharge before performing any service or repair work. Danfoss A/S © 10/2016 All rights reserved. MI70F102...
  • Page 3 13 mm nuts and three 8 mm nuts. See Illustration 1.7. • For the larger configuration, remove two 17 mm nuts, three 8 mm nuts, and one T25 machine screw. See Illustration 1.8. MI70F102 Danfoss A/S © 10/2016 All rights reserved.
  • Page 4 Lift and slide the frequency converter from the open channel of the options enclosure. Nut, 13 mm Screw, M5x12 Ground plate Nut, 8 mm Illustration 1.8 Removing the Ground Plate (Larger Configuration) Danfoss A/S © 10/2016 All rights reserved. MI70F102...
  • Page 5 Securely fasten the front door of the unit and the of the enclosure. Torque all fasteners in this step to front panel on the options enclosure. 5.1 Nm (45 in-lb). Refer to step 2 in Illustration 1.11. MI70F102 Danfoss A/S © 10/2016 All rights reserved.
  • Page 6 In-back/Out-back Cooling Kit for D5h/D6h and D7h/D8h Enclosures VLT® Series FC 102, FC 202, Installation Instructions and FC 302 Illustration 1.11 Reinstalling the Frequency Converter into the Enclosure Danfoss A/S © 10/2016 All rights reserved. MI70F102...
  • Page 7 Exhaust vent gaskets Label Intake vent gaskets 1) Gasket between vent spacer and mounting backplate/wall is used only on pedestal-mounted units. Illustration 1.12 Installing Sealing Gaskets to Back Panel for the D5h/D6h Frequency Converters MI70F102 Danfoss A/S © 10/2016 All rights reserved.
  • Page 8 Exhaust spacer Exhaust vent gaskets Slot gasket Intake spacer Intake vent gaskets Slot gasket Illustration 1.13 Installing Sealing Gaskets to Back Panel for the D7h/D8h Frequency Converters Danfoss A/S © 10/2016 All rights reserved. MI70F102...
  • Page 9 Drill the 8 screw holes around the intake (bottom) vent openings and insert the 8 M5 X 12 pem studs. Illustration 1.14 Vent Opening Dimensions for the Mounting Illustration 1.15 Vent Opening Dimensions for the Mounting Backplate, D5h/D6h Backplate, D7h/D8h MI70F102 Danfoss A/S © 10/2016 All rights reserved.
