Product Specification - INVT Goodrive 35 Series Operation Manual

inverters
Goodrive35
Fig

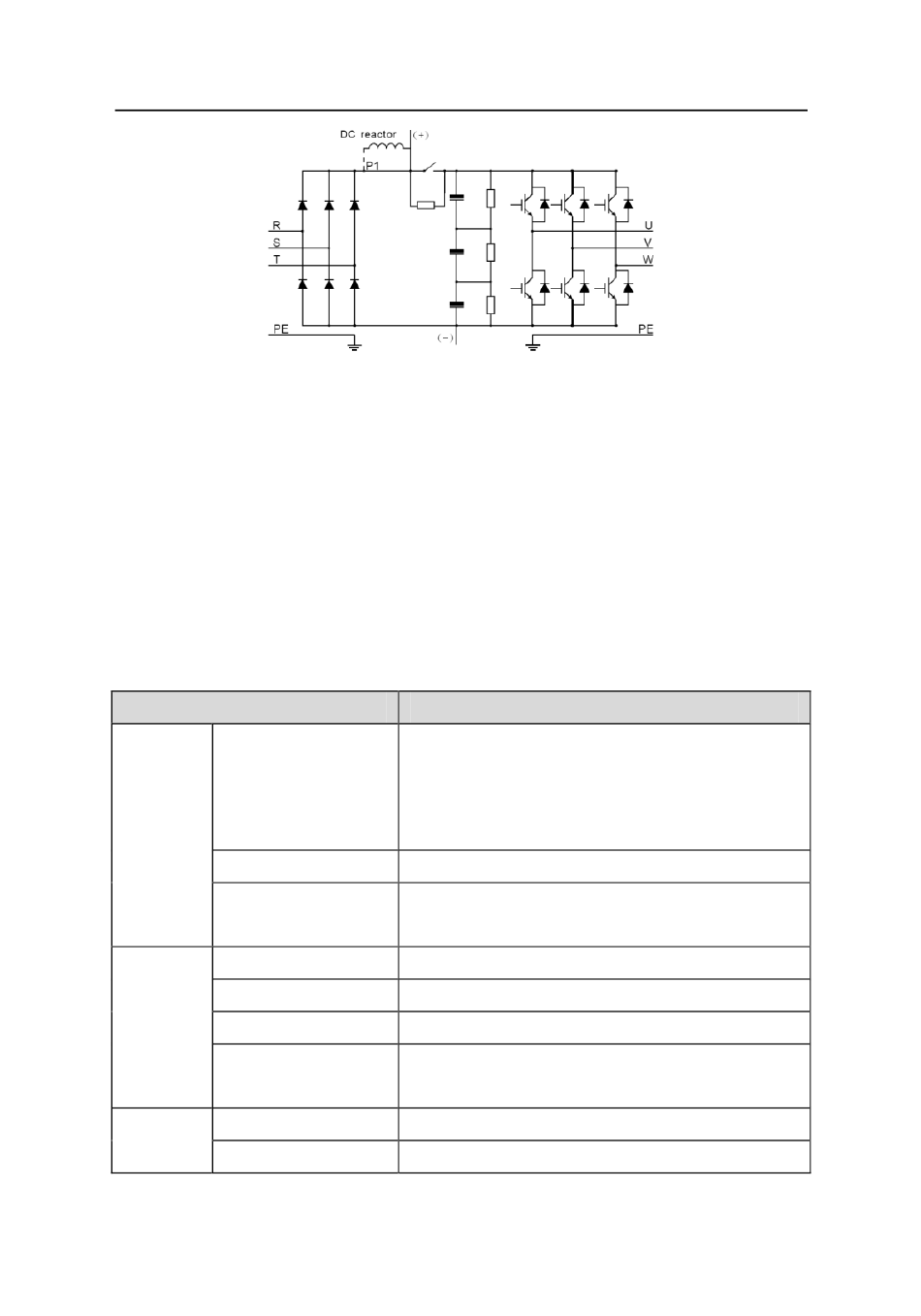

3-3 The simplified main circuit diagram (inverters of 660V)
Note:
1. The inverters of 380V(≥37kW) supports external DC reactors and external braking units,
but it is necessary to remove the copper tag between P1 and(+) before connecting. DC
reactors and external braking units are optional.
2. The inverters of 380V (≤30kW) supports external braking resistors which are optional.
3. The inverters of 660V supports external DC reactors and external braking units, but it is
necessary to remove the copper tag between P1 and (+) before connecting. DC reactors
and external braking units are optional.

3.3 Product specification

Function
Input voltage (V)
Power
input
Input current (A)
Input frequency (Hz)
Output voltage (V)
Output current (A)
Power
Output power (kW)
output
Output frequency
(Hz)
Technical Control mode
control Motor type
AC 3PH 380V(-15%)~440V(+10%)
Rated voltage:380V
AC 3PH 520V(-15%)~690V(+10%)
Rated voltage:660V
Refer to the rated value
50Hz or 60Hz
Allowed range: 47~63Hz
0~input voltage
Refer to the rated value
Refer to the rated value
0~400Hz
SVPWM, SVC and VC
Asynchronous motor and permanent magnet
14
www.barghmaher.ir
Product overview
Specification
