Name Plate; Type Designation Key - INVT Goodrive 35 Series Operation Manual

inverters
Goodrive35
Function
EMC filter

3.4 Name plate

Note: After the CE certification, the icon can be marked.

3.5 Type designation key

The type designation contains information on the inverter. The user can find the type
designation on the type designation label attached to the inverter or the simple name plate.
3.5.1 Model
Key Sign
Abbreviation
①
Rated power
②
Voltage
③
degree
Built-in C3 filter for 380V inverters: meet the degree
requirement of IEC61800-3 C3
No built-in filters for 660V inverters
External filter:optional, meet the degree requirement
of IEC61800-3 C2

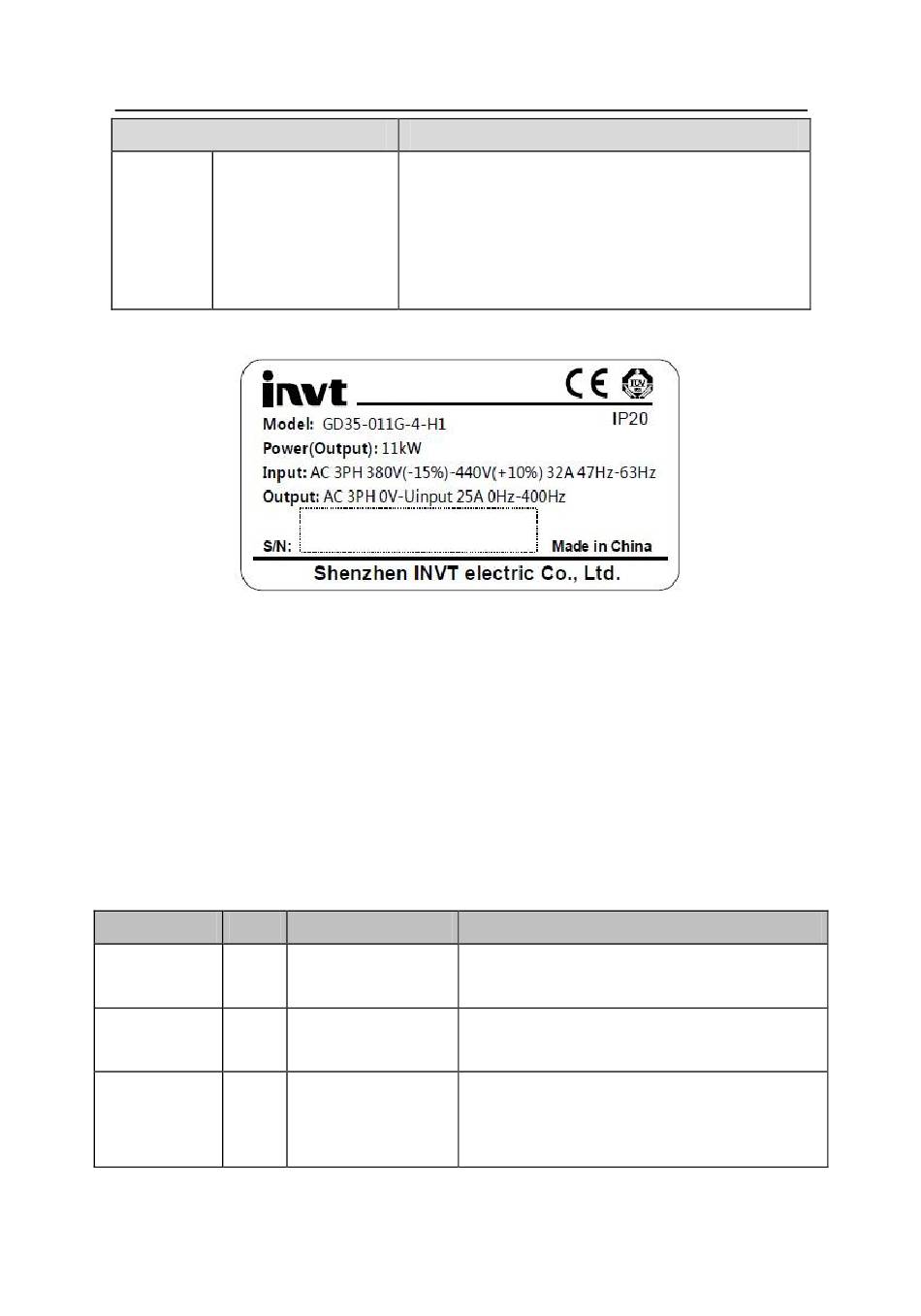

Fig 3-4 Name plate
GD35 – 5R5G – 4 –H1
① ②
Instruction
Goodrive35: Goodrive35 close-loop vector
Abbreviation
control inverters
5R5-5.5kW
Power + Load
G—constant torque load
4:AC 3PH 380V(-15%)~440V(+10%)
Voltage degree Rated voltage:380V
6:AC 3PH 520V(-15%)~690V(+10%)
