inverters
Goodrive35

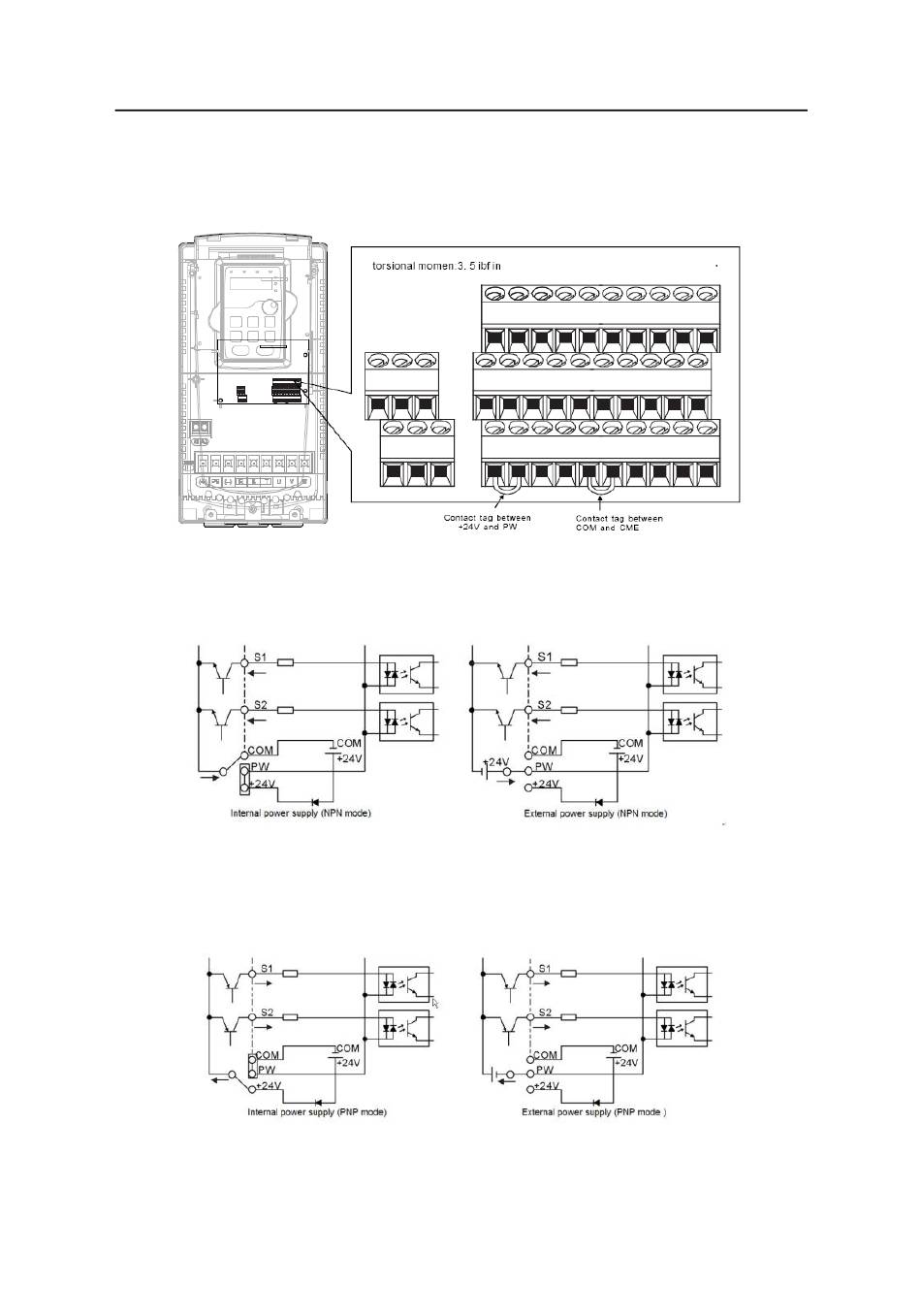

4.4.6 Input /Output signal connection figure
Please use U-shaped contact tag to set NPN mode or PNP mode and the internal or external
power supply. The default setting is NPN internal mode.
If the signal is from NPN transistor, please set the U-shaped contact tag between +24V and
PW as below according to the used power supply.
If the signal is from PNP transistor, please set the U-shaped contact tag as below according
to the used power supply.
Fig 4-22 U-shaped contact tag
Fig 4-23 NPN modes
Fig 4-24 PNP modes
44
www.barghmaher.ir
Installation guidelines
