INVT Goodrive 35 Series Operation Manual page 237

inverters
Goodrive35
H1.

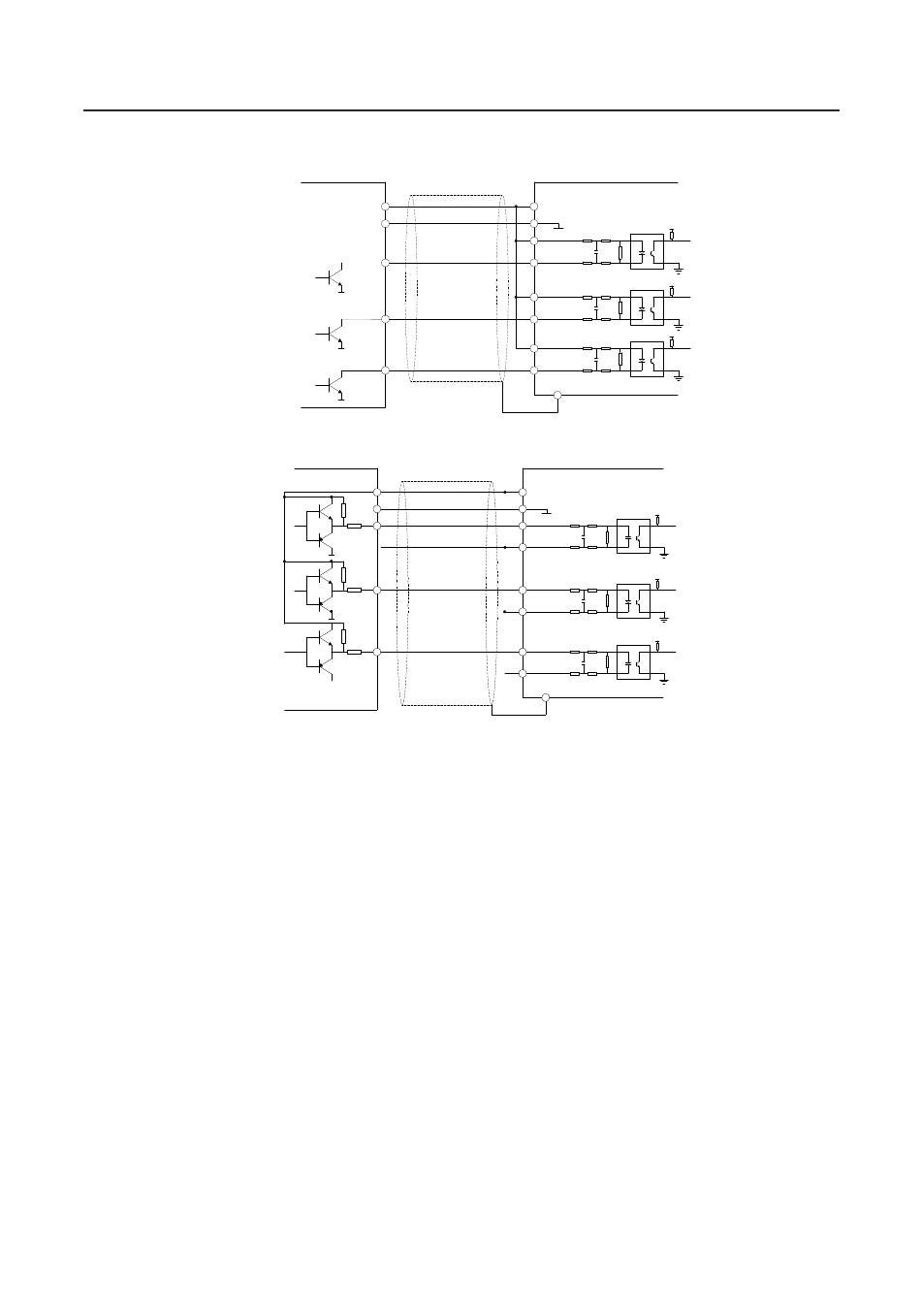

2. Open collector output (suitable to B1, C1 and H1)
3. Complementary output (suitable to B1, C1 and H1)
Note:
1. Above diagrams are given to the features of common encoder and suitable to the H1
interface.
2. The diagram of differential output is given to the H1 interface, C1 Iinterface applies
opto-isolator and H2 interface applies differential chips. The external wiring is the same as
that of H1.
3. If the external current is limited, C1and H1 interface is suitable to encoder signal and pulse
reference signal input with greater voltage.
4. Push-pull output
Use shield cables
Open collector output
VCC
0 V
A
OV
B
OV
Z
OV
Use shield cables
VCC
0 V
A
OV
B
OV
Z
OV
236
www.barghmaher.ir
Basic operation instruction
PWR/+12V
COM1/COM
+5V
+
A A
-
A
+5V
+
B
B
-
B
+5V
+
Z
Z
-
Z
PE
PWR/+12V
COM/COM1
+5V
+
A
A
-
A
+5V
+
B
B
-
B
+5V
+
Z
Z
-
Z
PE
