Goodrive35 inverters
1. The fuse, DC reactor, braking unit, braking resistor, input reactor, input filter, output reactor, output
filter are optional parts. Please refer to Peripheral Optional Parts for detailed information.
2. P1 and (+) are short circuited in factory, if need to connect with the DC rector, please remove the
contact tag between P1 and (+).

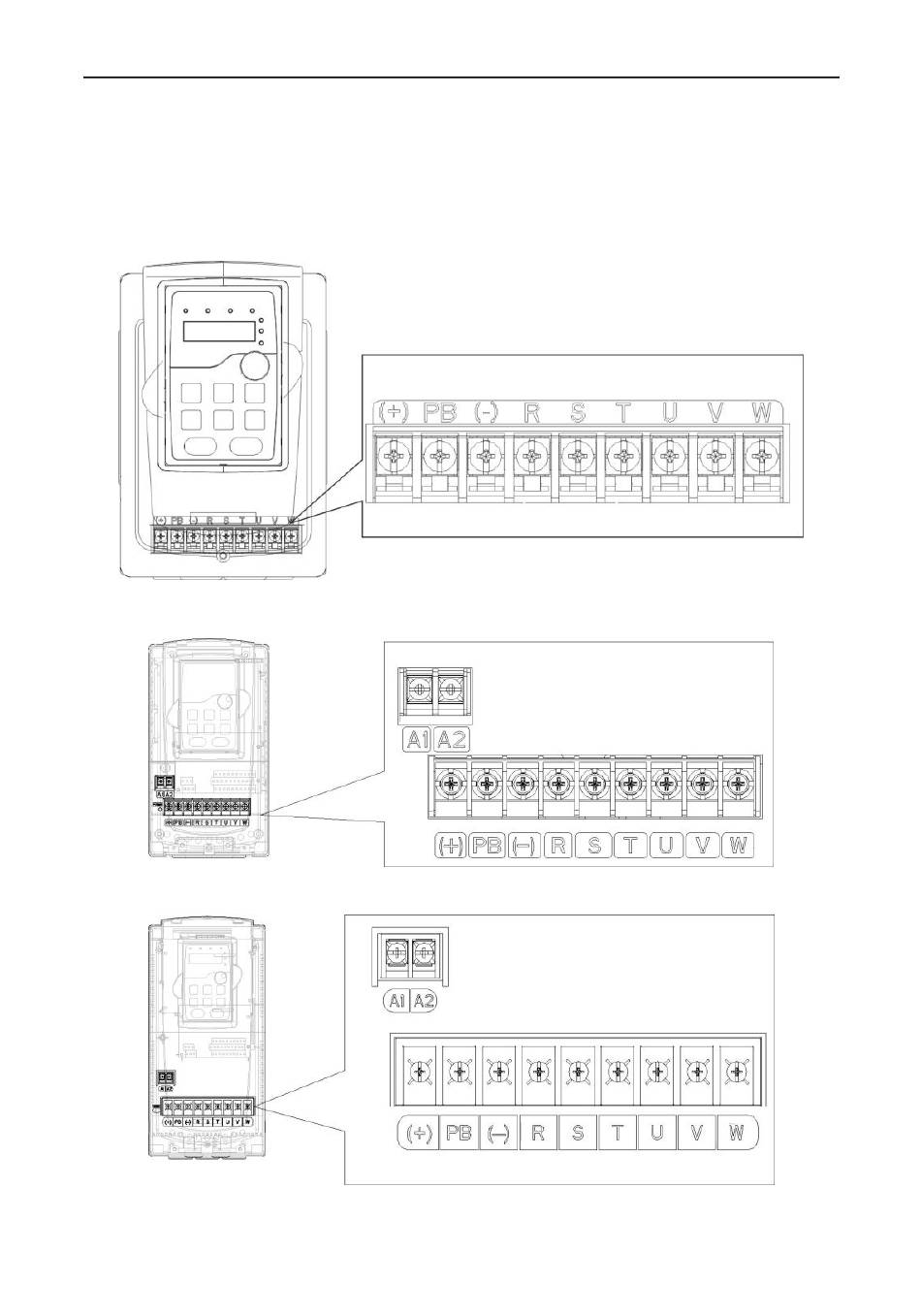

4.3.2 Terminals figure of main circuit
Fig 4-9 Terminals of main circuit for the inverters of 380V 1.5~2.2kW
Fig 4-10 Terminals of main circuit for the inverters of 380V 4~5.5 kW
30
www.barghmaher.ir
Installation guidelines
