Goodrive35 inverters

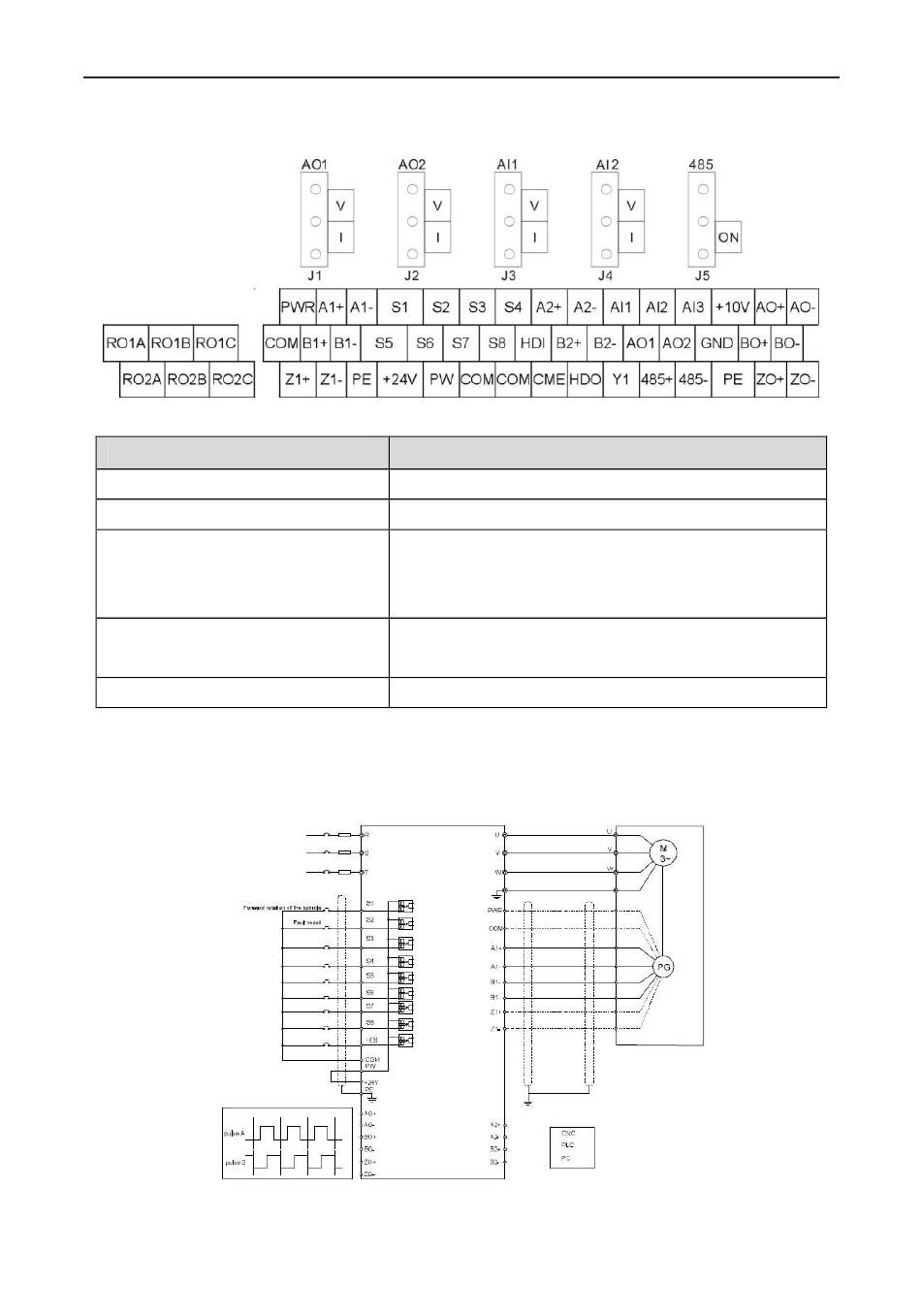

4.4.4 H1 terminal (EC-PG305-12) and the wiring diagram
4.4.4.1 Terminal arrangement
4.4.4.2 The terminal
Terminal
PWR
A1+, A1-, B1+, B1-, Z1+, Z1-
A2+, A2-, B2+, B2-,
AO+, AO-, BO+, BO-, ZO+ and ZO-
COM
Note: refer to section 4.4.1 for detailed information of AO1, AO2, AI1, AI2, 485 and other
terminals.
4.4.4.3 The wiring diagram
Power supply, provide 5V/12V, 200mA power supply
Signal input
Pulse reference signal, default as 5V input. External
current-limiting resistor is needed when the input
voltage is above 10V
Encoder signal output, 5V differential signal and the
ratio of frequency-division is 1:1
Grounding terminal of the encoder
40
www.barghmaher.ir
Installation guidelines
Instruction
