INVT Goodrive 35 Series Operation Manual page 42

Goodrive35 inverters

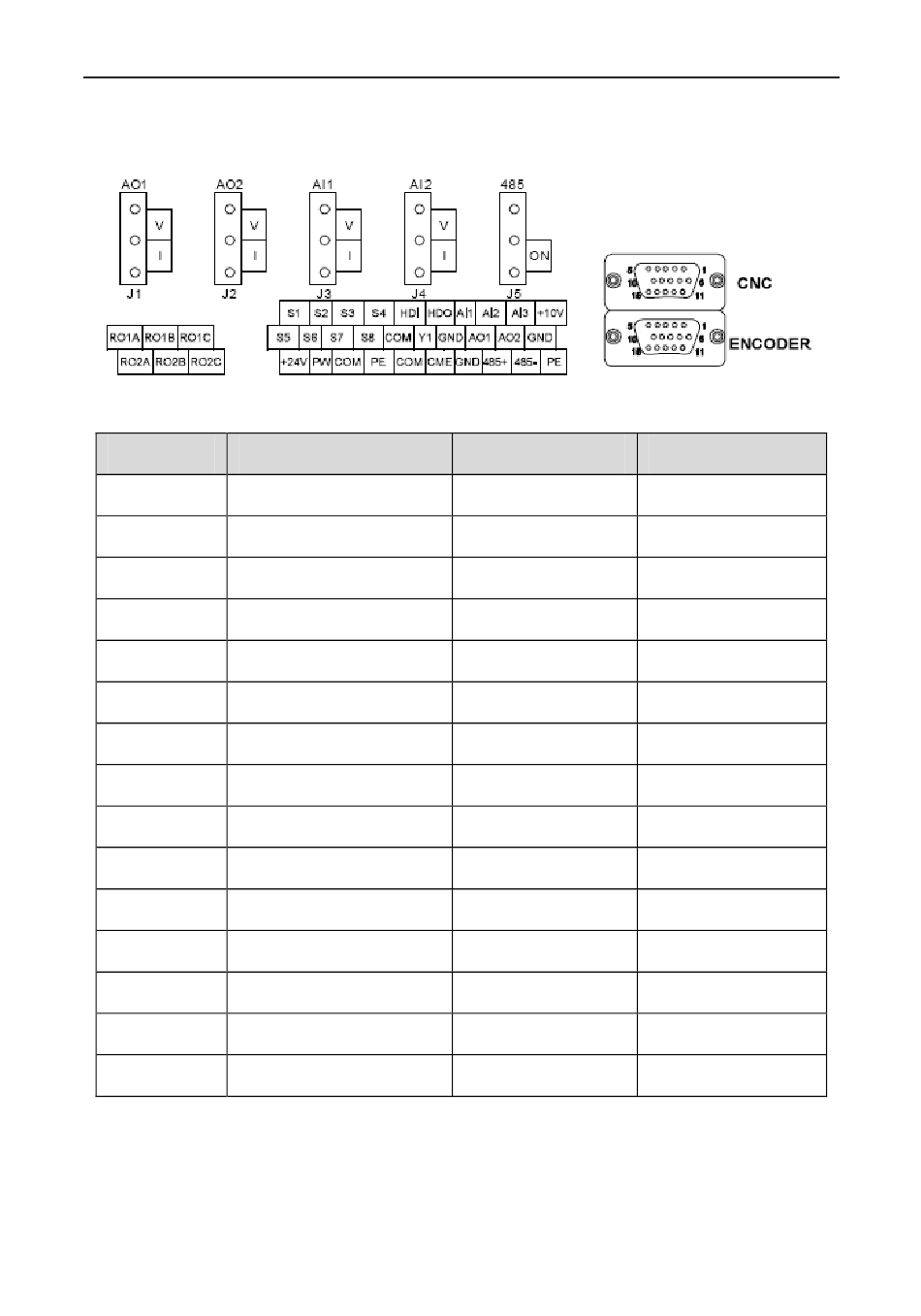

4.4.5 H2 terminal (EC-PG305-05) and the wiring diagram
4.4.5.1 Terminal arrangement
4.4.5.2 Interfaces
DB15(CNC) CNC system interface
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
DB15(ENCODER)
AO+
AO-
BO+
BO-
ZO+
ZO-
CME
COM
S7
S8
A2+
A2-
B2+
B2-
COM
41
www.barghmaher.ir
Installation guidelines
Encoder interface
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
+5V
A1+
B1+
Z1+
U+
U-
V+
V-
GND
A1-
B1-
Z1-
W+
W-
