Cooling Fan - INVT Goodrive 35 Series Operation Manual

inverters
Goodrive35
Checking
Ensure there is no
color-changing caused by
overheating.
Ensure whether there is stuff
Ventilating
or foreign objection in the
duct
cooling fan, air vent.
Consult the local service representative for more details on the maintenance. Visit the official
website.

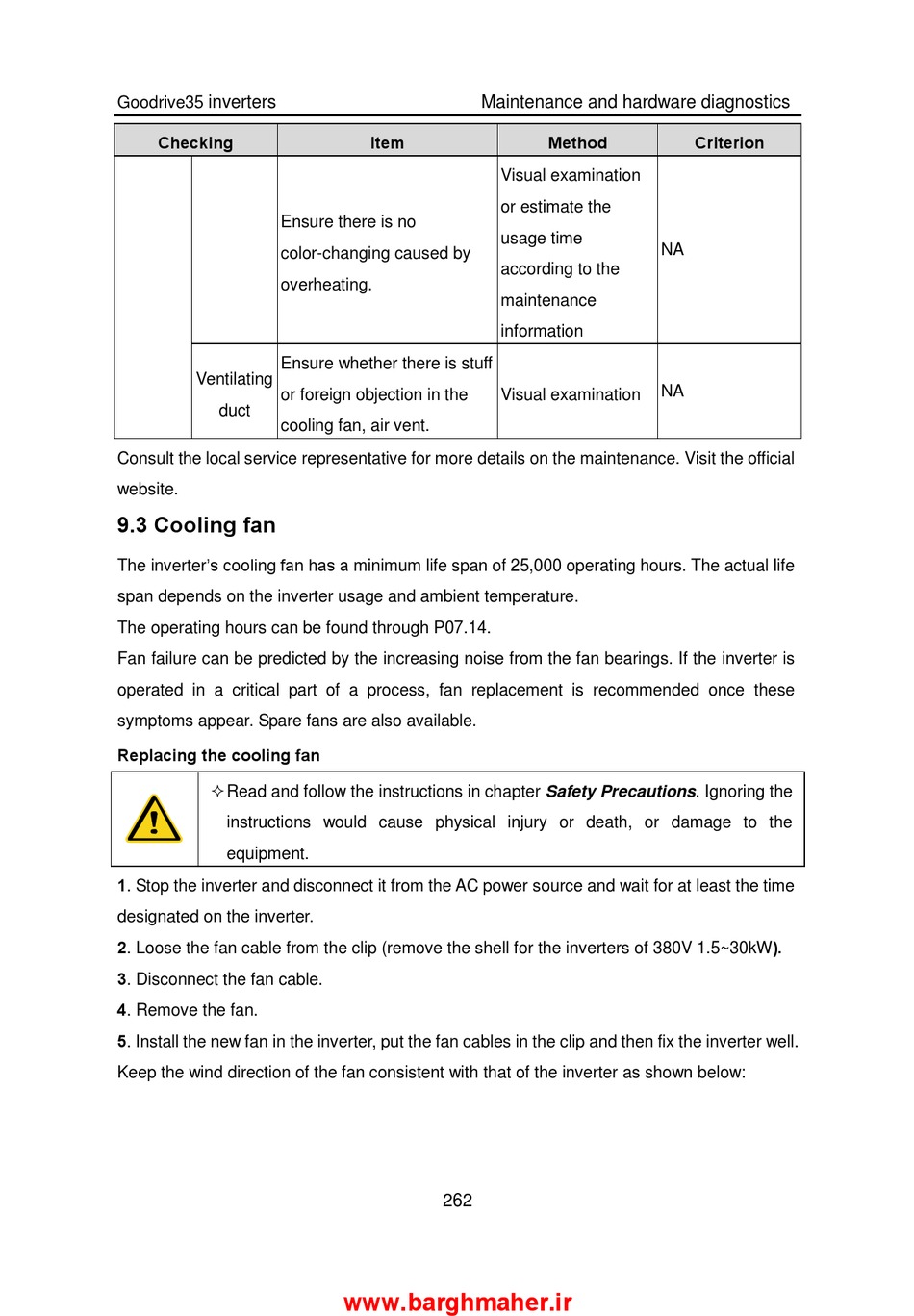

9.3 Cooling fan

The inverter's cooling fan has a minimum life span of 25,000 operating hours. The actual life
span depends on the inverter usage and ambient temperature.
The operating hours can be found through P07.14.
Fan failure can be predicted by the increasing noise from the fan bearings. If the inverter is
operated in a critical part of a process, fan replacement is recommended once these
symptoms appear. Spare fans are also available.
Replacing the cooling fan
 Read and follow the instructions in chapter Safety Precautions. Ignoring the
instructions would cause physical injury or death, or damage to the
equipment.
1. Stop the inverter and disconnect it from the AC power source and wait for at least the time
designated on the inverter.
2. Loose the fan cable from the clip (remove the shell for the inverters of 380V 1.5~30kW).
3. Disconnect the fan cable.
4. Remove the fan.
5. Install the new fan in the inverter, put the fan cables in the clip and then fix the inverter well.
Keep the wind direction of the fan consistent with that of the inverter as shown below:
Maintenance and hardware diagnostics
Item
Visual examination
or estimate the
usage time
according to the
maintenance
information
Visual examination
262
www.barghmaher.ir
Method Criterion
NA
NA
