Goodrive35 inverters

4.3 Standard wiring

4.3.1 Connection diagram of main circuit for the inverters of AC 3PH 380V (-15%)~440V(+10%)

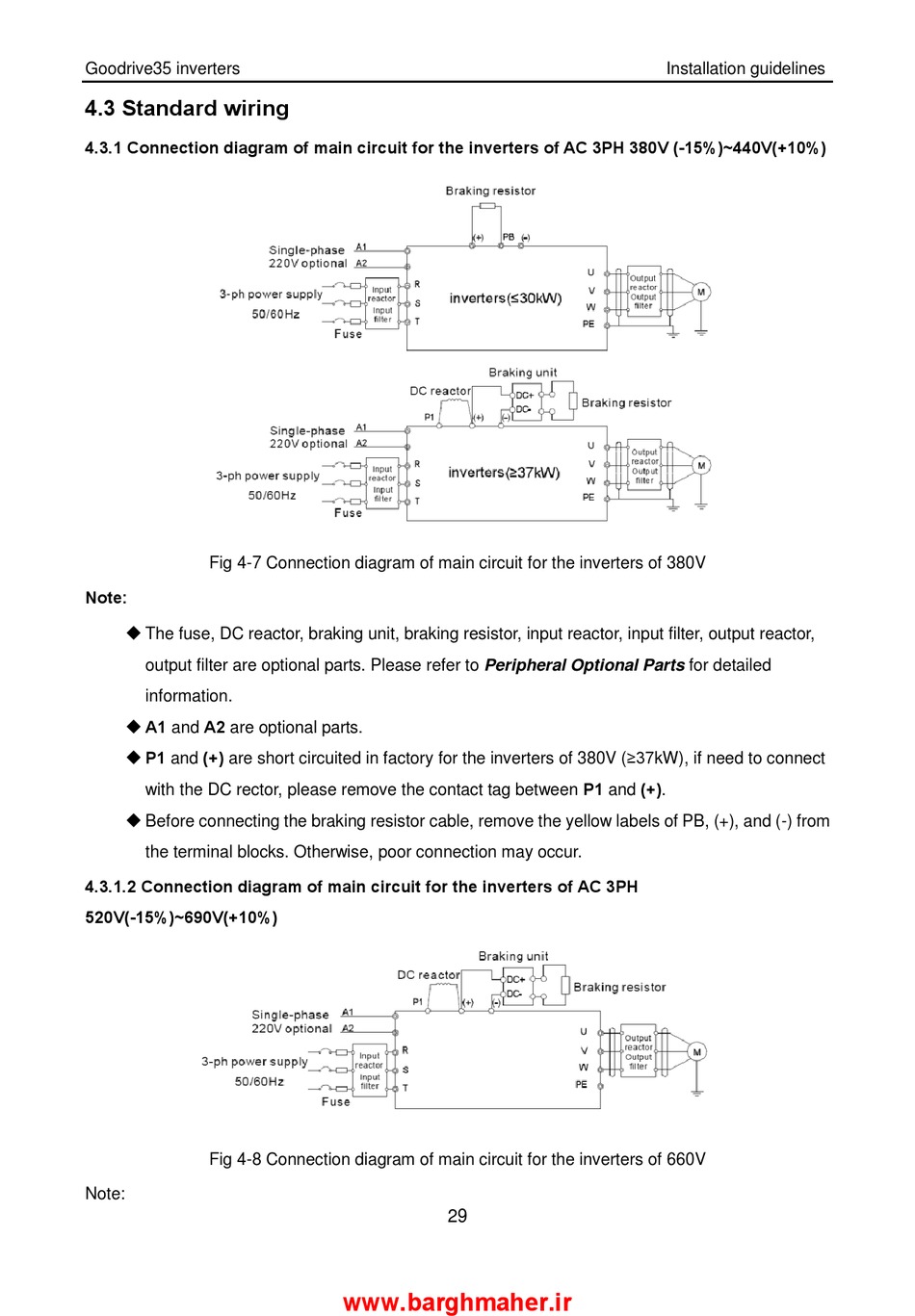

Fig 4-7 Connection diagram of main circuit for the inverters of 380V
Note:
 The fuse, DC reactor, braking unit, braking resistor, input reactor, input filter, output reactor,
output filter are optional parts. Please refer to Peripheral Optional Parts for detailed
information.
 A1 and A2 are optional parts.
 P1 and (+) are short circuited in factory for the inverters of 380V (≥37kW), if need to connect
with the DC rector, please remove the contact tag between P1 and (+).
 Before connecting the braking resistor cable, remove the yellow labels of PB, (+), and (-) from
the terminal blocks. Otherwise, poor connection may occur.
4.3.1.2 Connection diagram of main circuit for the inverters of AC 3PH
520V(-15%)~690V(+10%)
Fig 4-8 Connection diagram of main circuit for the inverters of 660V
Note:
