Product Specification - INVT Goodrive 300 Operation Manual

inverters
Goodrive300
Fig

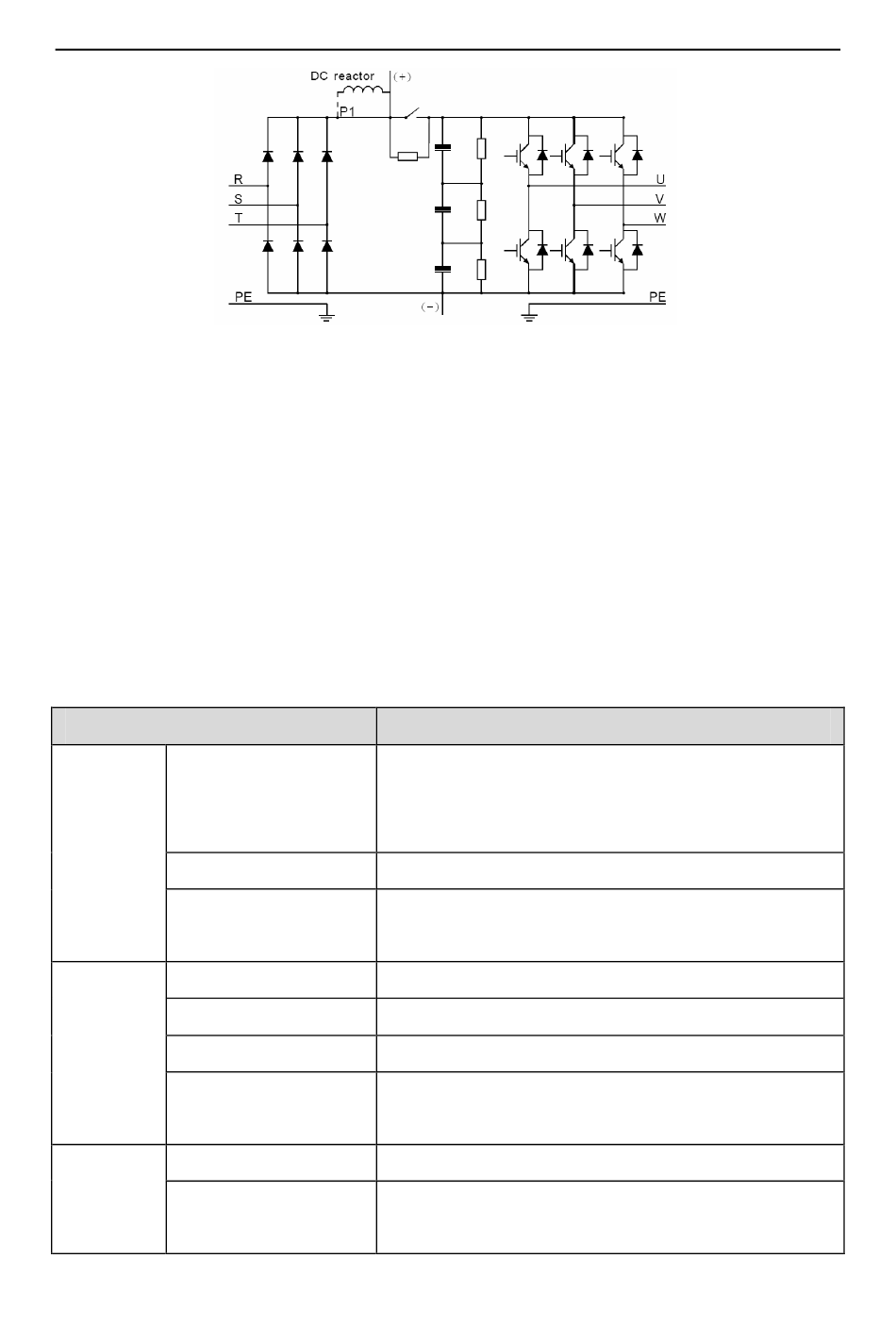

3-3 The simplified main circuit diagram (inverters of 660V)
Note:
1. The inverters of 380V(≥37kW) supports external DC reactors and external braking units,
but it is necessary to remove the copper tag between P1 and(+) before connecting. DC
reactors and external braking units are optional.
2. The inverters of 380V(≤30kW) supports external braking resistors which are optional.
3. The inverters of 660V supports external DC reactors and external braking units, but it is
necessary to remove the copper tag between P1 and(+) before connecting. DC reactors and
external braking units are optional.

3.3 Product specification

Function
Input voltage (V)
Power
input
Input current (A)
Input frequency (Hz)
Output voltage (V)
Output current (A)
Power
Output power (kW)
output
Output frequency
Technical Control mode
control
Motor type
feature
AC 3PH 220V(-15%)~240V(+10%)
AC 3PH 380V(-15%)~440V(+10%)
AC 3PH 520V(-15%)~690V(+10%)
Refer to the rated value
50Hz or 60Hz
Allowed range: 47~63Hz
0~input voltage
Refer to the rated value
Refer to the rated value
0~400Hz
(Hz)
V/F, sensorless vector control
Asynchronous
synchronous motor
Specification
motor and
14
Product overview
permanent magnet
