INVT Goodrive 35 Series Operation Manual page 291

inverters
Goodrive35
2. Bus connector
3. Rotation node address selection switches
4. State display LEDs
5. Ethernet communication interface

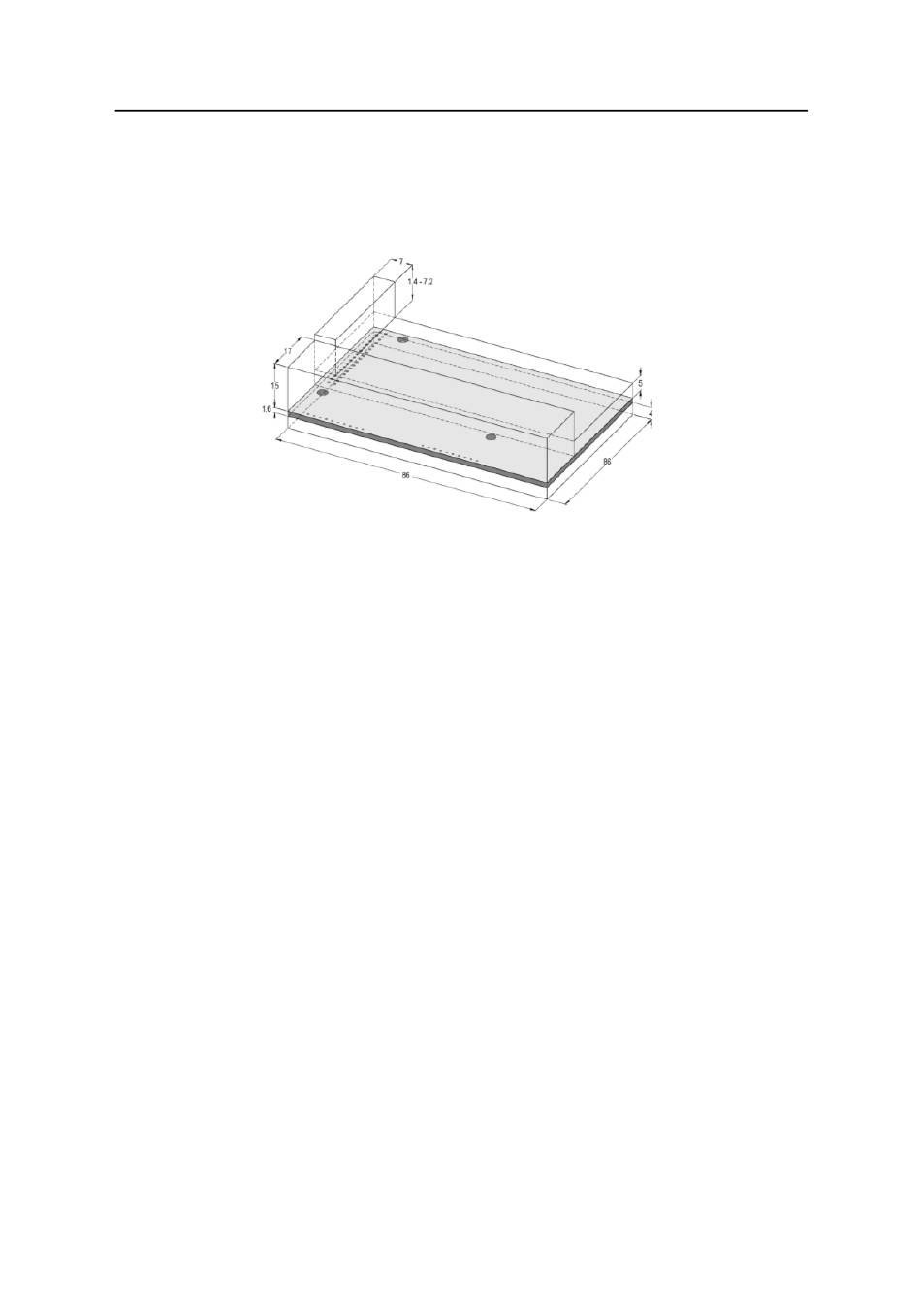

External dimensions of EC-TX-103 communication card (Unit: mm)
A.2.4 Compatible motor of EC-TX-103 communication card
EC-TX-103 communication card is compatible with the following products:
● Goodrive35 series devices and all blasters supporting PROFIBUS/CANOPEN
extension
● Host station supporting PROFIBUS/CANOPEN-DP protocol
A.2.5 Delivery list
The package of EC-TX-103 communication card contains:
● EC-TX-103 communication card
● Three copper columns (M3x10)
● User's manual
Please contact with SHENZHEN INVT ELECTRIC CO., LTD or suppliers if there is
something missing. Notice will not be given for the reason of product upgrades.
A.2.6 Installation of EC-TX-103 communication card
A.2.6.1 Mechanical installation of EC-TX-103 communication card
1. Installation ambient
● Ambient temperature:0℃ ~ +40℃
● Relative humidity:5%~95%
● Other climate conditions: no drew, ice, rain, snow, hail air condition and the solar
radiation is below 700W/m
2
,air pressure 70~106kPa
