INVT Goodrive 35 Series Operation Manual page 294

inverters
Goodrive35
Available

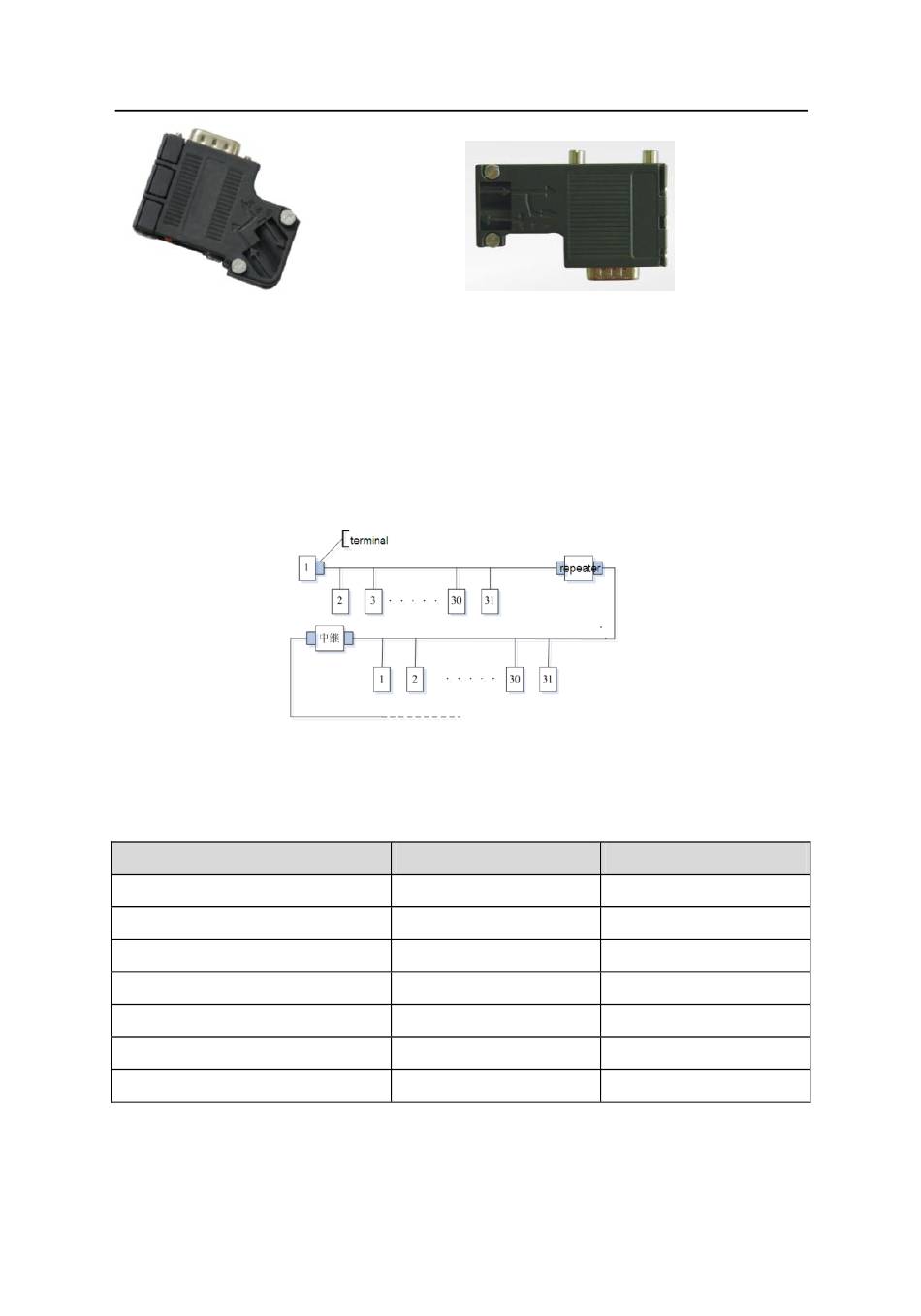

Repeater
Up to 32 stations can be connected to each segment (master station or subsidiary stations),
the repeater have to be used when stations is more than 32. The repeaters in series are
generally no more than 3.
Note: There is no repeater station address.
A.2.6.4 Transmission rate and maximum distance
Maximum length of cable depends on the transmission rate. The Table below shows the
relationship between transmission rate and distance.
Transmission rate (kbps)
9.6
19.2
93.75
187.5
500
1500
12000
Transmission line parameters:
Not available (with interference to the keypad wiring)
A-wire (m)
1200
1200
1200
1000
400
200
100
293
www.barghmaher.ir
Appendix A
B-wire (m)
1200
1200
1200
600
200
-----
-----
