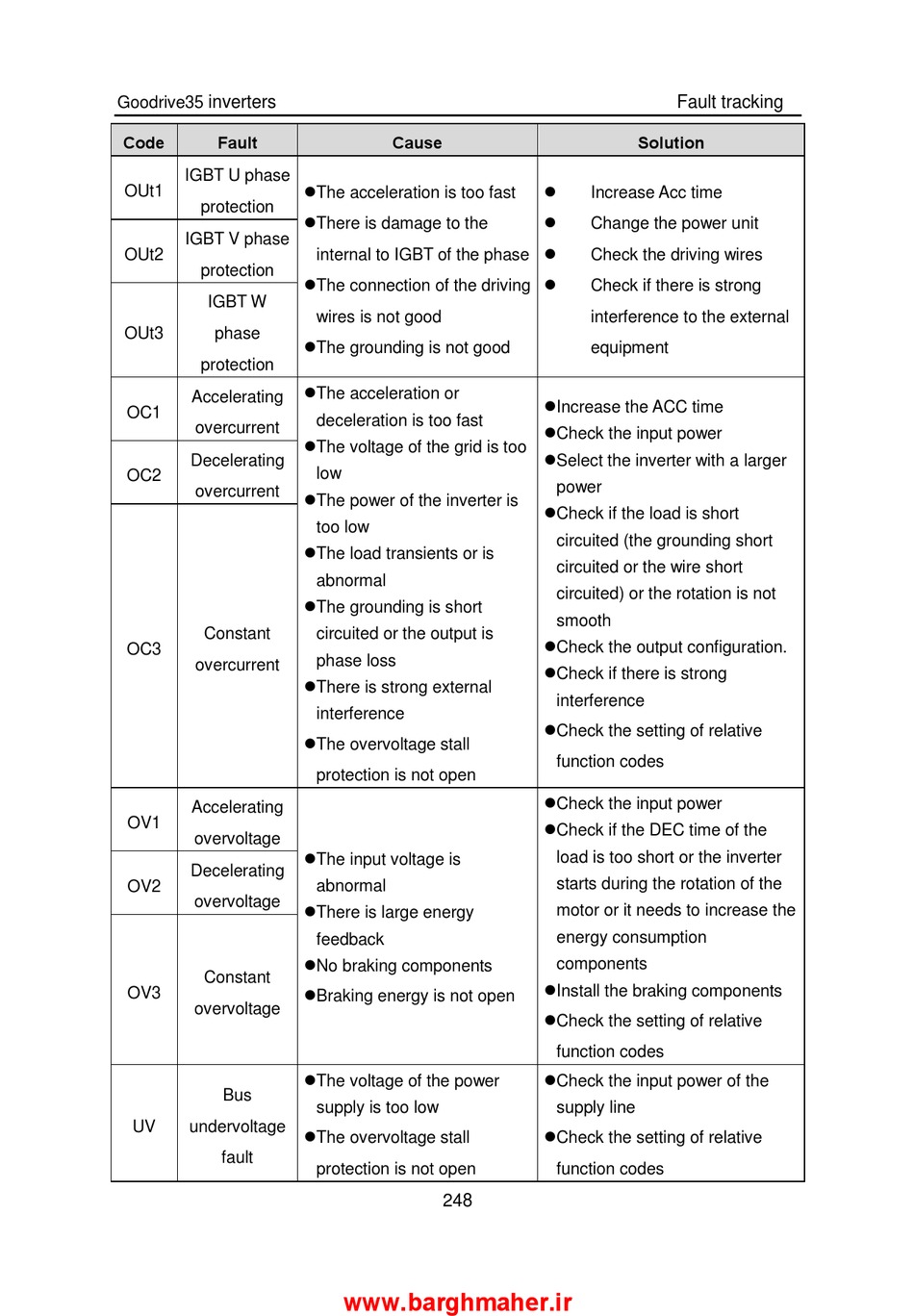

INVT Goodrive 35 Series Operation Manual page 249

inverters
Goodrive35
Code Fault
IGBT U phase
OUt1
protection
IGBT V phase
OUt2
protection
IGBT W
OUt3 phase
protection
Accelerating
OC1
overcurrent
Decelerating
OC2
overcurrent
Constant
OC3
overcurrent
Accelerating
OV1
overvoltage
Decelerating
OV2
overvoltage
Constant
OV3
overvoltage
Bus
UV undervoltage
fault
Cause
The acceleration is too fast
There is damage to the
internal to IGBT of the phase
The connection of the driving
wires is not good
The grounding is not good
The acceleration or
deceleration is too fast
The voltage of the grid is too
low
The power of the inverter is
too low
The load transients or is
abnormal
The grounding is short
circuited or the output is
phase loss
There is strong external
interference
The overvoltage stall
protection is not open
The input voltage is
abnormal
There is large energy
feedback
No braking components
Braking energy is not open
The voltage of the power
supply is too low
The overvoltage stall
protection is not open
