INVT Goodrive 35 Series Operation Manual page 37

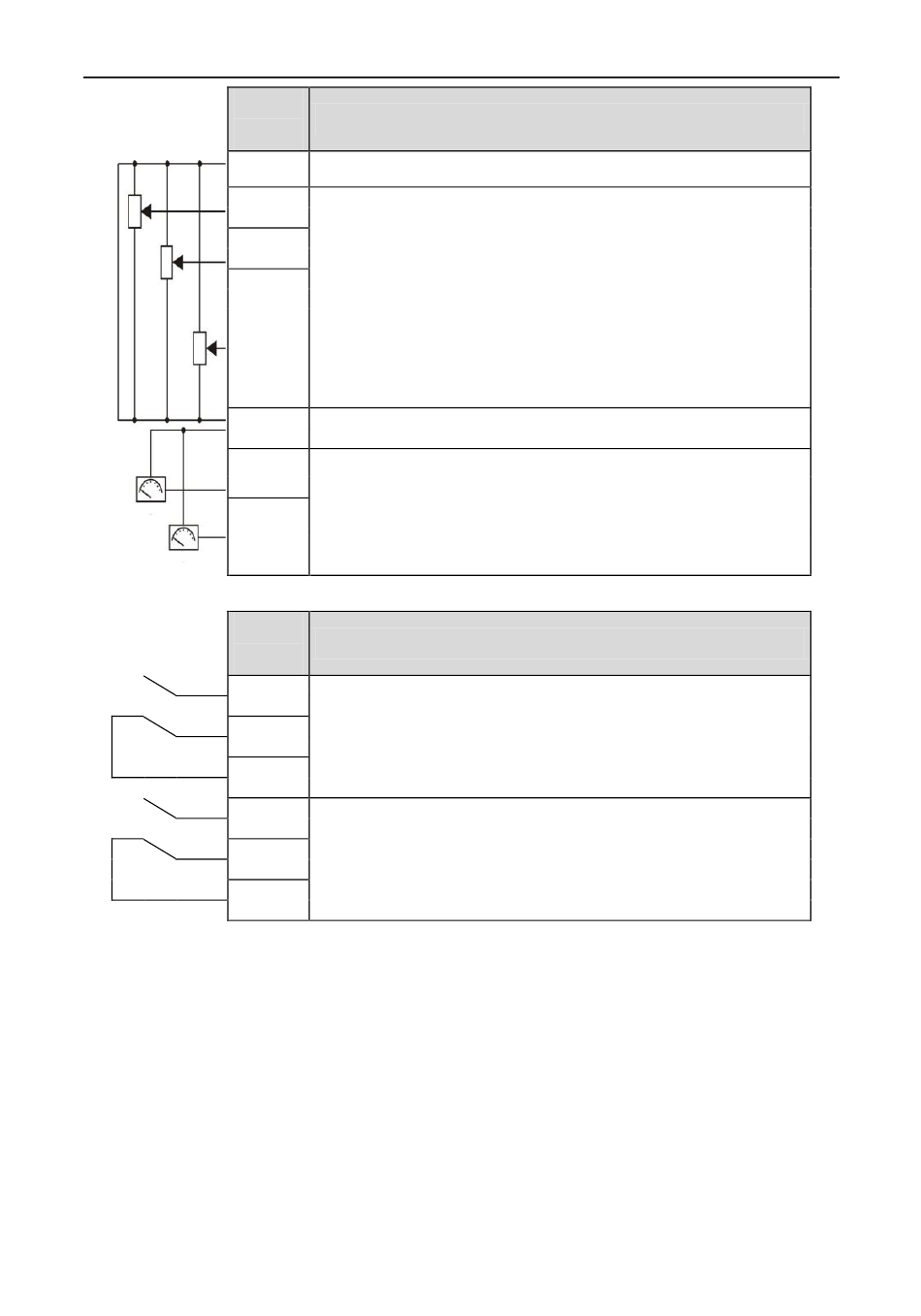

Goodrive35 inverters
Terminal
name
+10V
AI1
AI2
AI3
GND
AO1
AO2
Terminal
name
RO1A
RO1B
RO1C
RO2A
RO2B
RO2C
Local power supply +10V
1. Input range: AI1/AI2 voltage and current can be chose:
0~10V/0~20mA;AI1 can be shifted by J3; AI2 can be shifted by J4
AI3:-10V~+10V
2. Input impedance:voltage input: 20kΩ; current input: 500Ω
3. Resolution: the minimum one is 5mV when 10V corresponds to
50Hz
4. Deviation ±1%, 25℃
+10V reference null potential
1. Output range:0~10V or -20~20mA
2. The voltage or the current output is depended on the jumper.
AO1 is switched by J1 and AO2 is switched by J2
3. Deviation±1%,25℃
RO1 relay output, RO1A NO, RO1B NC, RO1C common terminal
Contactor capability: 3A/AC250V,1A/DC30V
RO2 relay output, RO2A NO, RO2B NC, RO2C common terminal
Contactor capability: 3A/AC250V,1A/DC30V
