INVT Goodrive 35 Series Operation Manual page 265

inverters
Goodrive35
Time
Storing time more than 3
years
Use voltage-adjusting power supply to charge the inverter:
The right selection of the voltage-adjusting power supply depends on the supply power of
the inverter. Single phase 220V AC/2A power surge is applied to the inverter of
single/three-phase 220VAC. The inverter of single/three-phase 220V AC can apply single
phase 220V AC/2A power surge(L+ to R, N to S or T). All DC bus capacitors can charge at
the same time because there is one rectifier.
High-voltage inverter needs enough voltage (for example, 380V) during charging. The small
capacitor power (2A is enough) can be used because the capacitor nearly does not need
current when charging.
The operation method of inverter charging through resistors (LEDs):
The charging time is at least 60 minutes if charge the DC bus capacitor directly through
supply power. This operation is available on normal temperature and no-load condition and
the resistor should be serially connected in the 3-phase circuits of the power supply:
a)380V driven device: 1k/100W resistor. LED of 100W can be used when the power
voltage is no more than 380V. But if used, the light may be off or weak during charging.
b) 660V driven device: 1k/160W resistor.

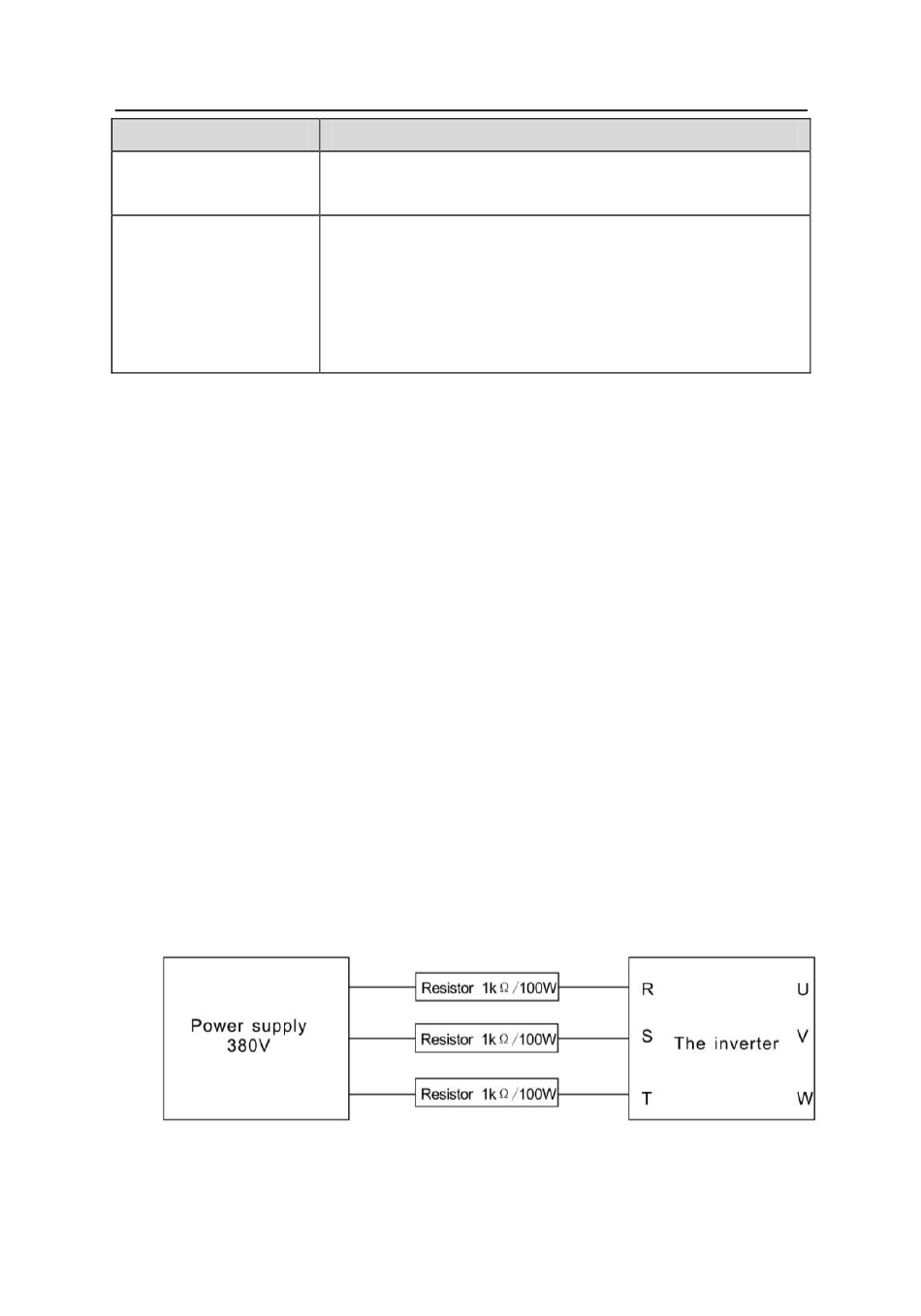

380V charging illustration of the driven device
Maintenance and hardware diagnostics
Operational principle
• charging 75% rated voltage for 30 minutes
• charging 100% rated voltage for 30 minutes
Use power surge to charge for the inverter
• charging 25% rated voltage for 2 hours
• charging 50% rated voltage for 2 hours
• charging 75% rated voltage for 2 hours
• charging 100% rated voltage for 2 hours
