Video Support
The WS-8 and WS-4 each include a high-performance video card. The WS-8 card
supports up to two monitors, with a 'primary' port that must always be used and a
second port to be used for a second monitor. One or two DVI cables are provided.
Important! Standard video connections are disabled when the video card is in use.
Input/Output Connections
The WS includes standard connections for keyboard, mouse, and audio input/output
lines. Two Gigabit Ethernet ports and an RS232 type serial port are also provided.

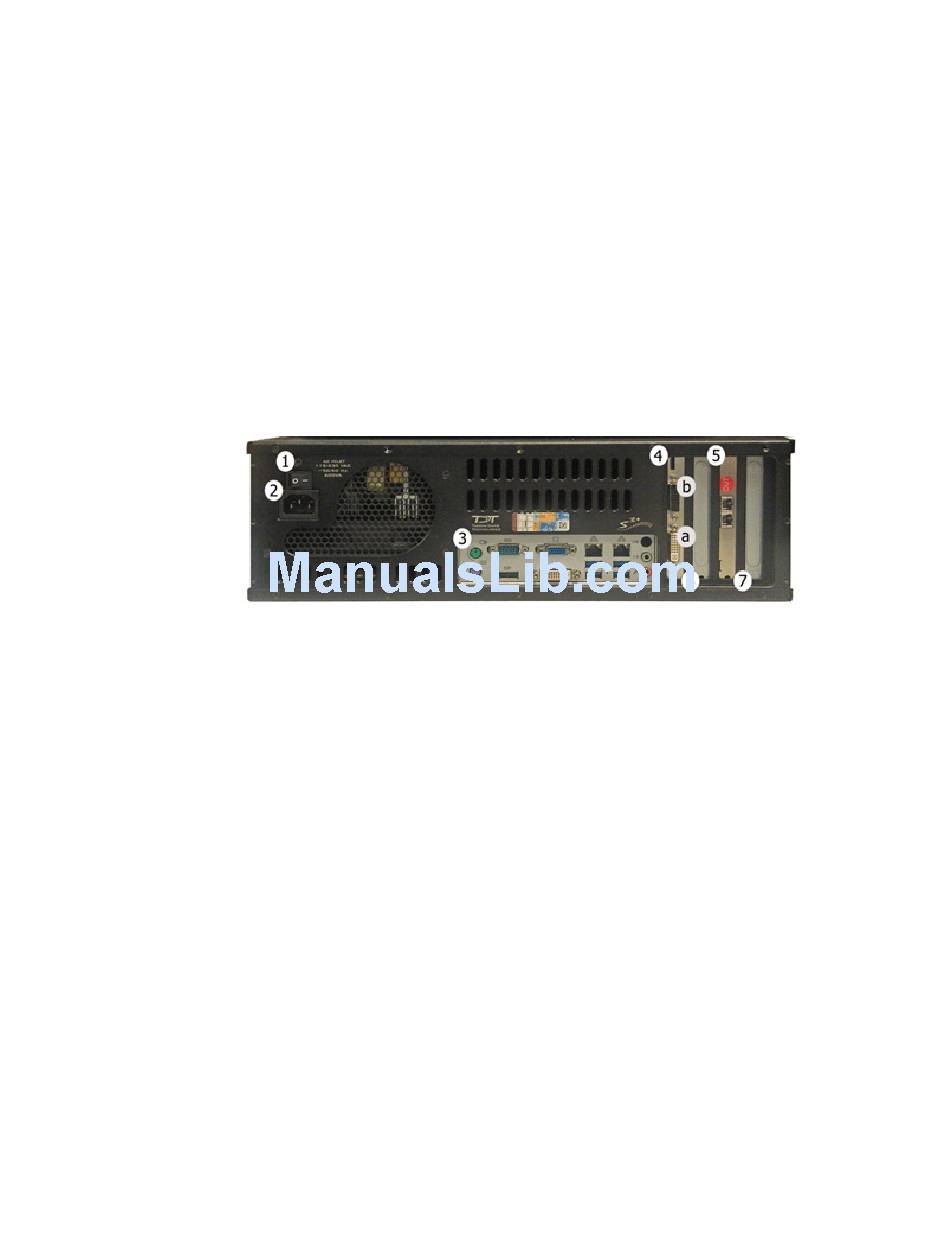

Back Panel Connections
1.
2. AC Power Cord Input
3. Connector Panel (see below)
4. Video Card with Dual(WS8 only) Link DVIs and HDMI-mini
5. PO5 Optical Port
6. Unavailable
7. Open PCIe x4, Half -Length Slot
Note: The provided keyboard and mouse connect via USB ports.
WS4/WS8 High Performance Computer Workstation
On/Off Switch
a. Primary Video Connection
b. Secondary Video Connection
