TDT RZ2 Manual page 219

System 3
2. In the Target field, select a target impedance value.
3. Set the probe signal frequency from the drop-down list.
4. For analog input channels, touch the Next button to cycle through each
5. A limited set of channels is visible at any one time. Swipe vertically on the
When the hardware connections have been made the incoming signals can be
previewed on the front display.
To preview the data:
1.
2. To return to the Main Configuration screen from the Waveform Display
probing option for the selected logical amplifier type. "Probing Options" on
page 6-20.

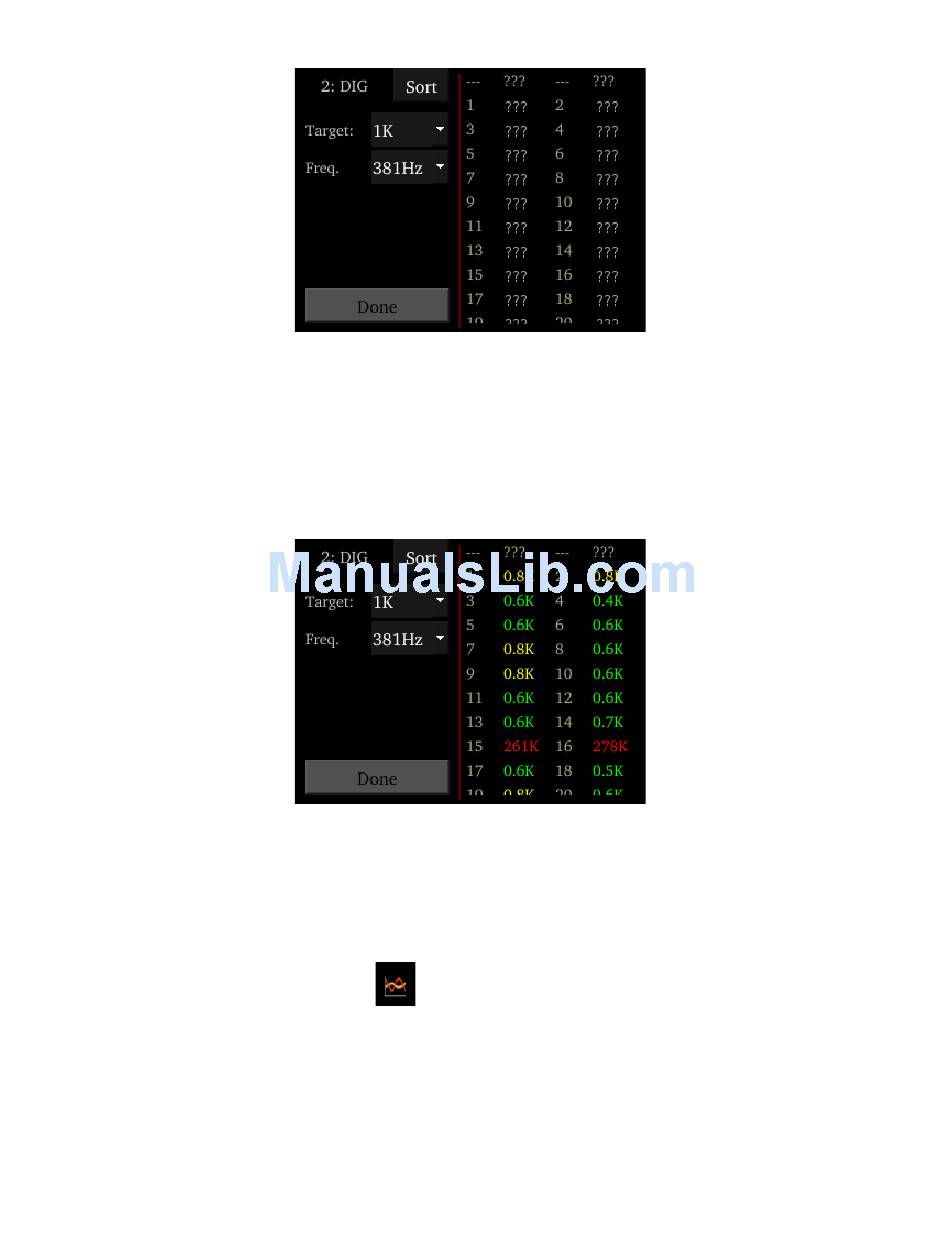

The impedance values of the currently tested set are updated on the right
side of the screen and are color coded for easy identification of problem
channels.
interface to scroll the visible channels or touch the Sort button to sort the list
by channel number or by impedance value.
Touch the Preview icon on the desired logical amplifier to enter the
Waveform Display screen.
screen, swipe three fingers across the screen in any direction.
6-11
PZ5 NeuroDigitizer
