8-14

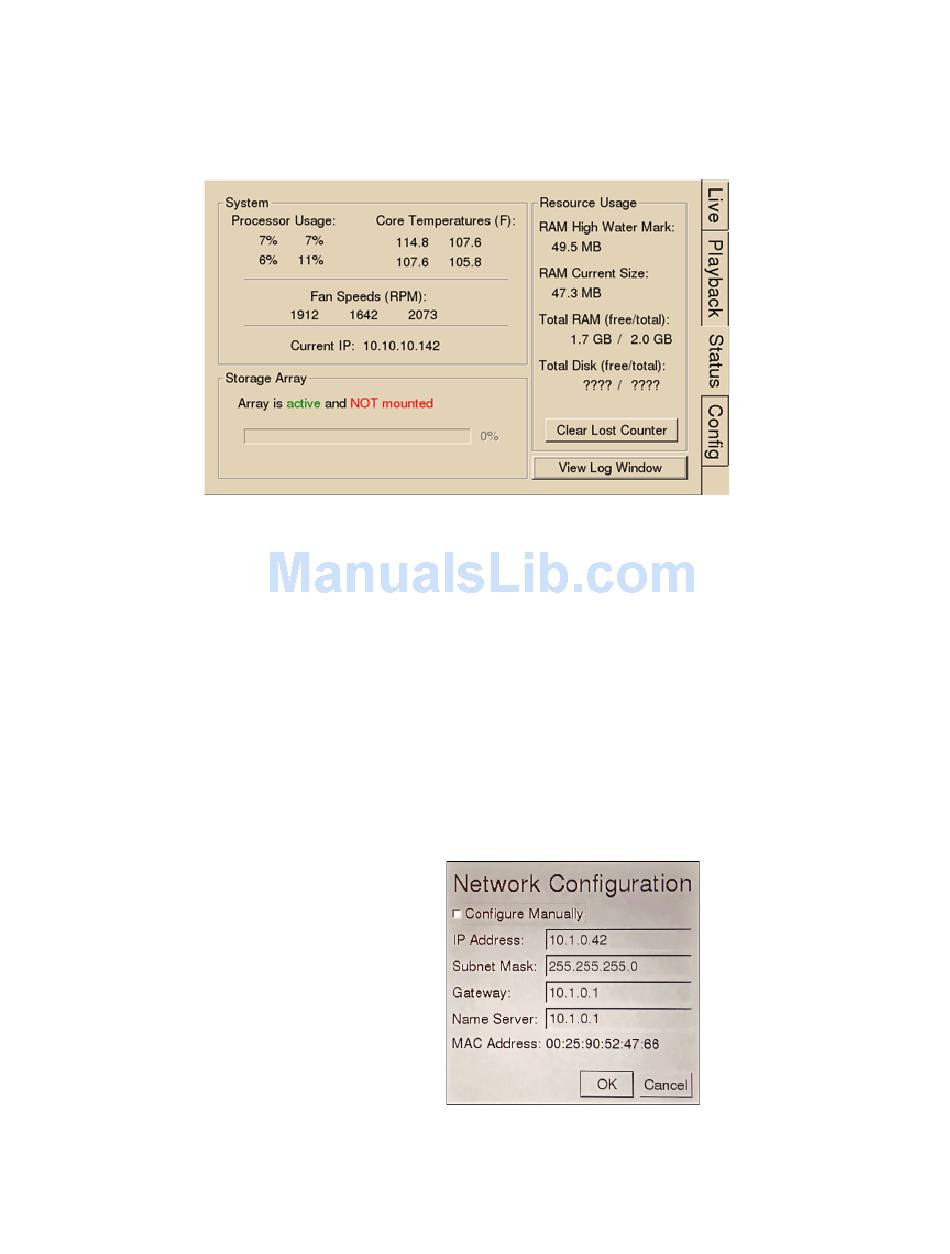

Status
The Status tab provides system information such as processor usage rates, core
temperatures, fan speeds, device IP address, array reformat progress, memory buffer
allocation, and communication errors. Log information can also be retrieved from this
tab.
System:
Processor Usage:
Core Temperatures (F): Displays the current processor core temperatures
Fan Speeds (RPM):
Current IP:
RV2 Video Processor
Displays important system status information.
Displays the current percent usage for each processor
core.
measured in Fahrenheit. The text will turn yellow or
red if the processor gets too hot. This can occur if
there is an issue with the heatsink or internal fans.
When this happens the RV2 will sound a warning
and should be shut down immediately.
Displays the approximate rpm for all three fans located
inside of the RV2.
Displays the IP address currently assigned to the RV2.
Press to display Network Configuration Window.
Configure Manually - select to enable manual
configuration and make fields editable.
