ZCA‐OMN96 ZIF‐Clip® Headstage to 96‐Channel
Omnetics Probe
The ZCA-OMN96 adapter connects a 96-channel chronic omnetics connector to a
96-channel ZIF-Clip® headstage. For single-ended operation, tie Com (ground)
and IND (indifferent reference) together.

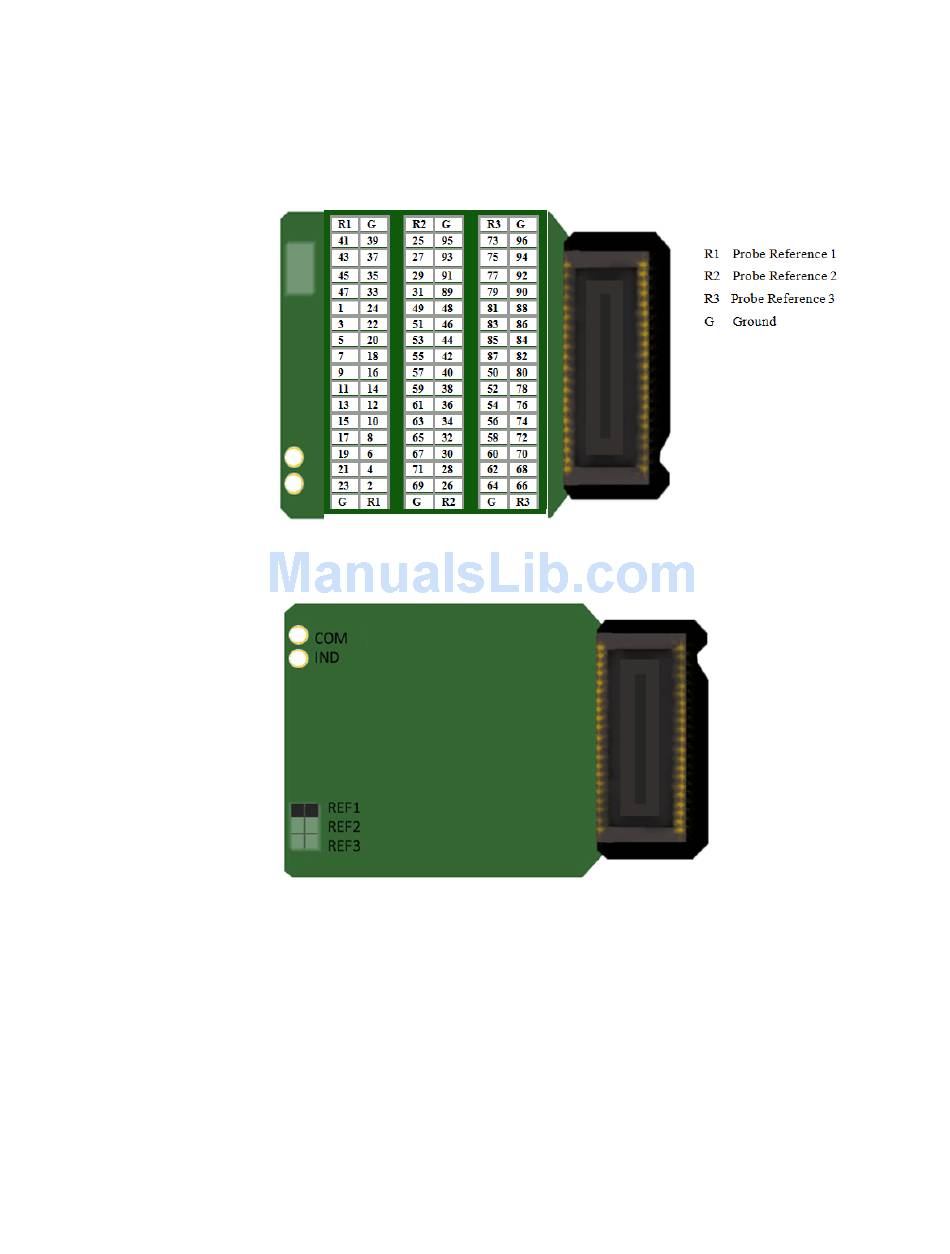

Pinouts are looking into the connector and reflect the preamplifier channels.
Use jumper to choose which reference (R1, R2, R3) to use for all channels. Only
one reference may be selected.
ZCA‐CK96A ZIF‐Clip® Headstage to 96‐Channel
Chronic Probe
The ZCA-CK96A adapter connects a 96-channel chronic CyberKinetics CerePort
connector to a 96-channel ZIF-Clip® headstage. For single-ended operation, tie the
ground and reference pins (shown in diagram) together.
12-11
ZIF-Clip® Headstage Adapters
