2-8

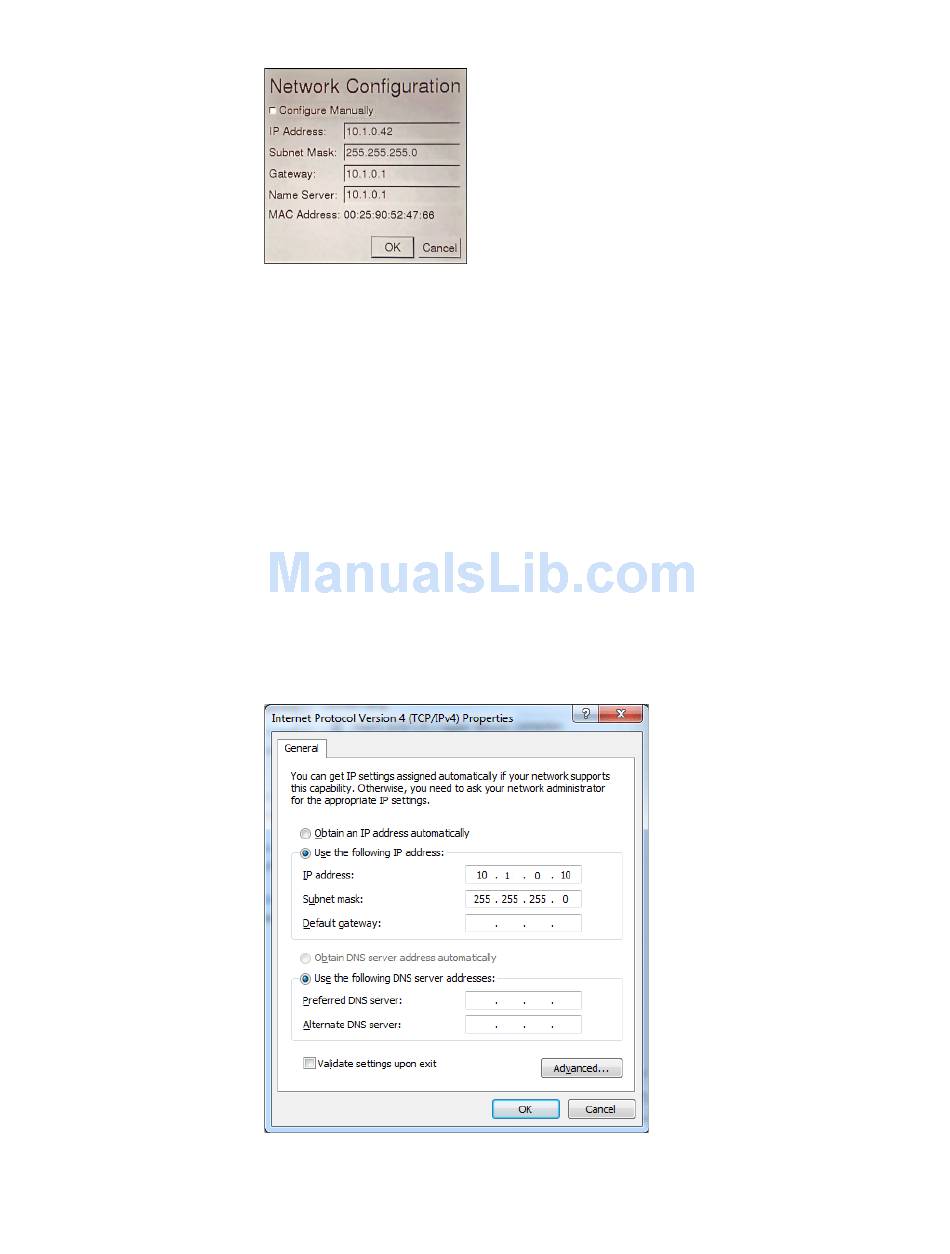

2. Touch the Configure Manually check box and click OK to accept the
Using Windows 7
To access the RS4 file system through a PC, running Windows 7:
3. You will have to configure the PC TCP/IP settings. Open Control Panel then
4. Click the desired connection link (this is usually a Local Area Connection).
5. In the status dialog, click the Properties button.
6. In the item list, select Internet Protocol (TCP/IP) or if there are multiples,
7. Click the Properties button.
8. Select Use the following IP address and enter these values:
9. Click OK. The RS4 can now be accessed by the PC.
10. Obtain the RS4 device address.
RS4 Data Streamer
default value.
double-click Network and Sharing Center.
select Internet Protocol (TCP/IPv4).
IP address: 10.1.0.x; where x can be any value, 1 to 254 except 42
Subnet mask: 255.255.255.0
Default gateway: Leave empty
System 3
