TB32 32‐Channel Digitizer
TB32 Overview
The TB32 32 channel
digitizer interfaces directly
with Triangle BioSystems,
Inc. (TBSI) wireless
headstage and receiver
allowing up to 31-channels
of recording from a free
moving subject.
TBSI's wireless headstage captures the analog signals and wirelessly transmits them
up to 3 meters from the subject to the TBSI receiver. The analog signals are then
passed to the TB32 for digitization through a 37-pin connector. Signals are digitized
at up to ~25 kHz on the digitizer and sent over two fiber optic links to a DSP
device such as the RZ5 base station, where they are filtered and processed in real-
time.
Hardware Setup

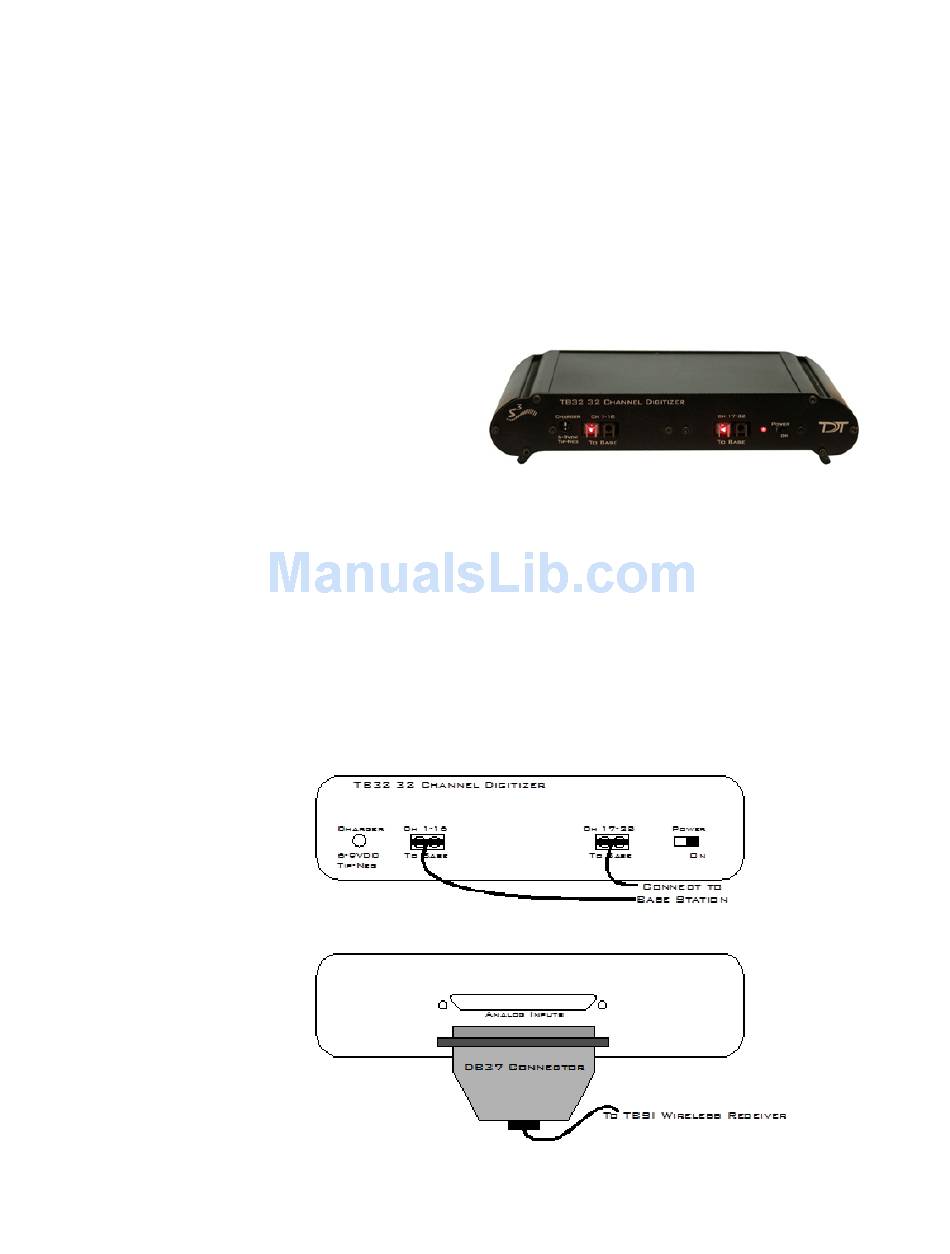

The diagram below shows the connections made to the front and back panels of the
TB32 digitizer.
TB32 Front (top) and Back (bottom) Panels
6-97

TB32 32-Channel Digitizer
