6-22
Done Button
Return to the Main Configuration window.

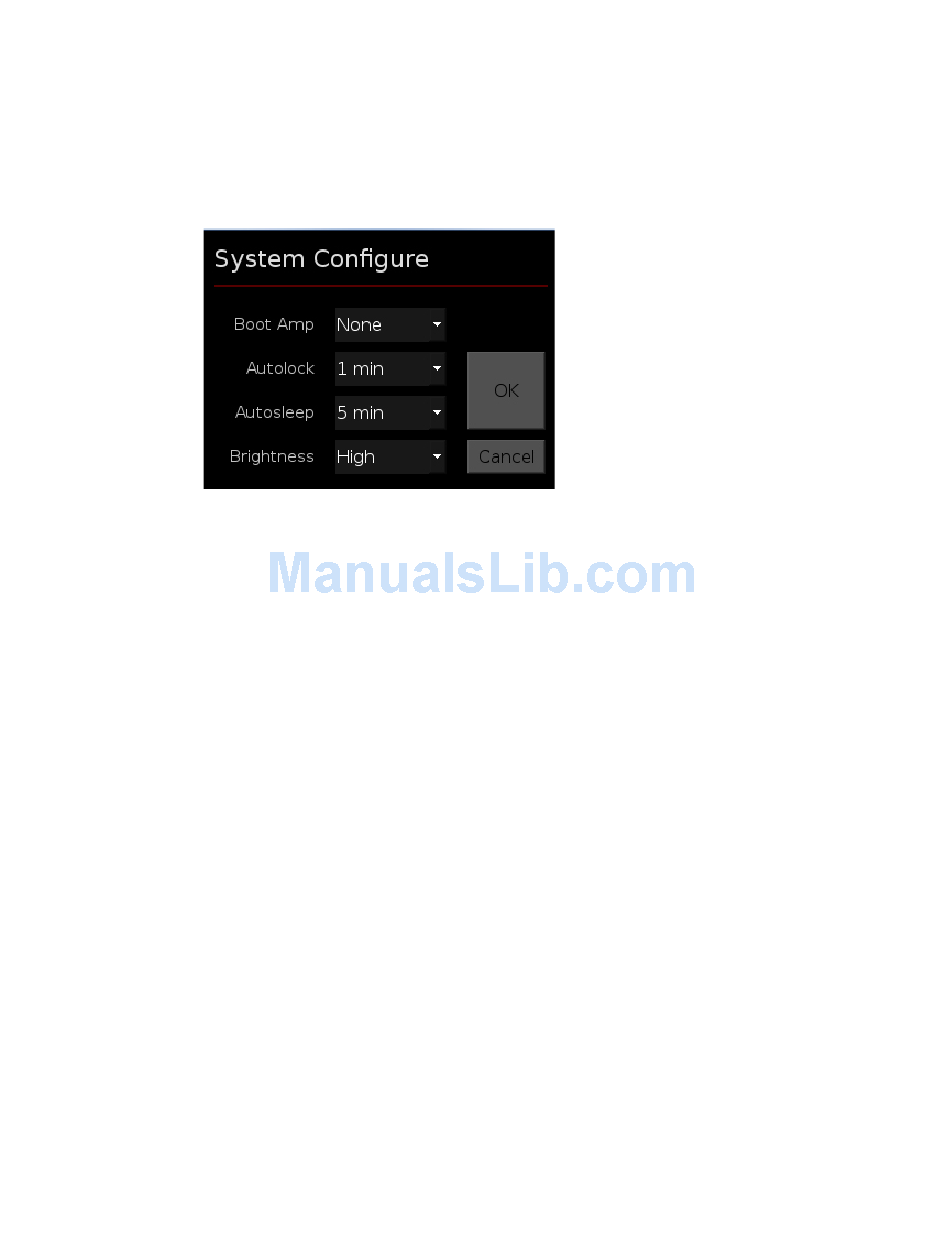

System Configure Screen
The System Configure screen is displayed by touching Config on the System Setup
screen.
Settings include:
Boot Amp
Autolock
Autosleep
Brightness
Wireless
OK Button
Save changes and return to the System Setup screen.
Cancel Button
Return to the System Setup screen without saving changes.
PZ5 NeuroDigitizer
Select the default logical amplifier settings when the PZ5 is first
powered on.
None – boots with no logical amplifiers specified.
PZ2 – all banks configured as one Single Unit amplifier.
PZ3 – all banks configured as one EEG amplifier.
PZ3 Diff – all channels configured as one EEG amplifier in
differential referencing mode.
Last – reboots into the last used configuration.
Smart – Does not overwrite any existing logical amplifier
configuration on boot. For example, if you configure the logical
amplifiers via the PZ5_Control macro before the PZ5 boots then
the PZ5 will NOT overwrite that configuration. If the PZ5 boots
and NO logical amplifiers are configured it will behave the same
as Last.
Select an option to lock the configuration screen after 1, 2 or 5
min of screen inactivity or select Never to turn off autolocking.
Select an option to turn off the screen after 5, 10 or 30 min of
screen inactivity or select Never to turn off autosleep.
Select High, Medium, or Low to set touchscreen brightness.
Enable/disable the wireless connection.
