7-14
System 3

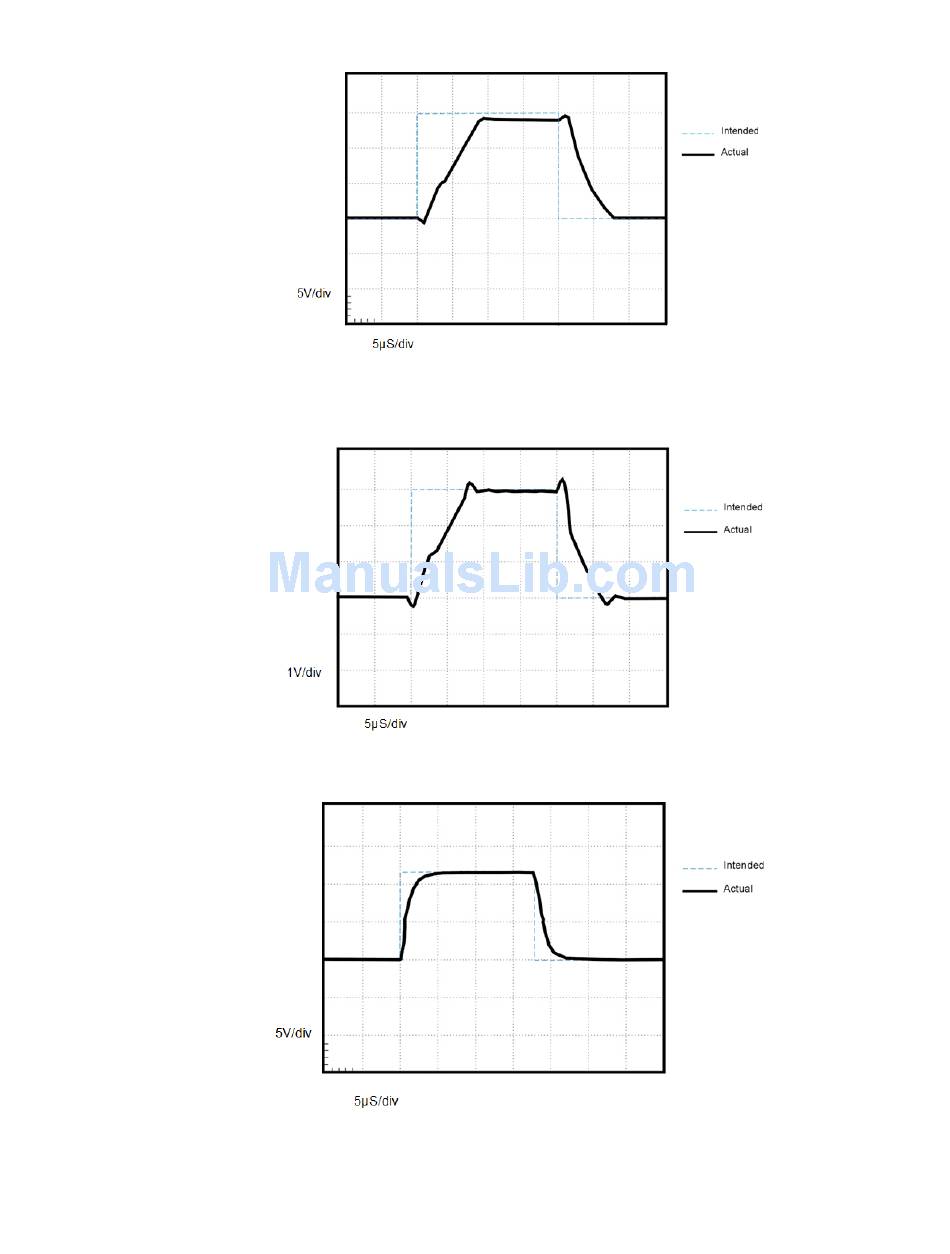

5k load, 3 mA stim, 50 kHz sampling rate. Slew rate: ~ 1.6 V/us
Devices SN < 2018: ~0.21V/us
1k load, 3mA stim, 50kHz sampling rate. Slew rate: ~0.38V/us
5k load, 12V stim, 50kHz sampling rate. Slew rate: ~2.0V/us
Devices SN < 2018: ~ 0.16V/us
Note:
Changes to the device improved the slew for IZH-16s, SN 2018 and greater.
IZ2/IZ2H Stimulator
