TDT RZ2 Manual page 609

System 3

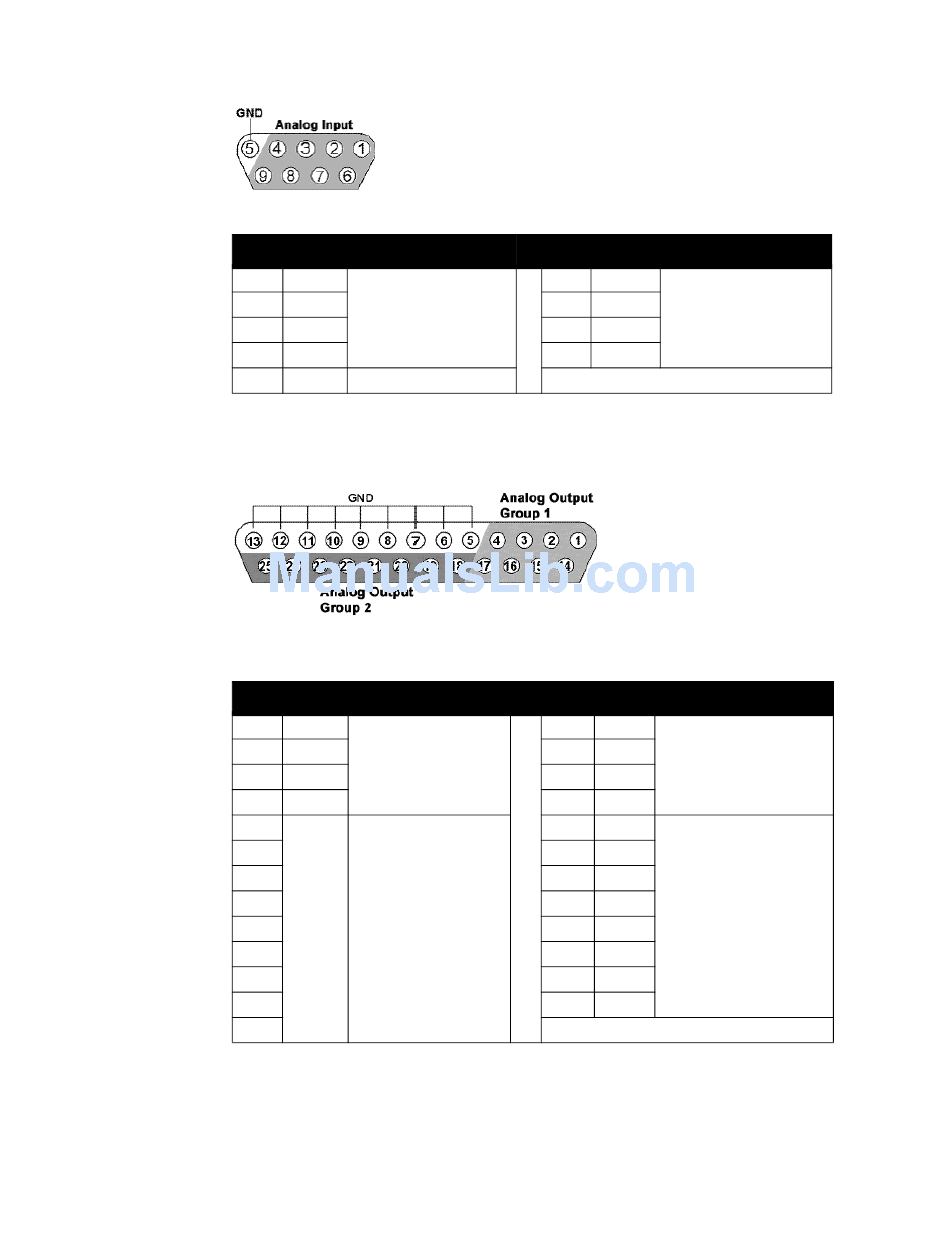

Analog Input Pinout Diagram
Pin
1 A1
2 A3
3 A5
4 A7
5 GND
Analog Output Pinout Diagram
Pin
1 A1
2 A3
3 A5
4 A7
5 GND
6
7
8
9
10
11
12
13
Name Description
Analog Input Channels
Ground
Name Description
Analog Output
Channels
Group 1
GND
Pin Name Description
6 A2 Analog Input Channels
7 A4
8 A6
9 A8
Pin Name Description
14 A2 Analog Output Channels
Group 1
15 A4
16 A6
17 A8
18 A1 Analog Output Channels
Group 2
19 A2
20 A3
21 A4
22 A5
23 A6
24 A7
25 A8
SA8 Eight Channel Power Amplifier
16-31
