RX8 Multi I/O Processor

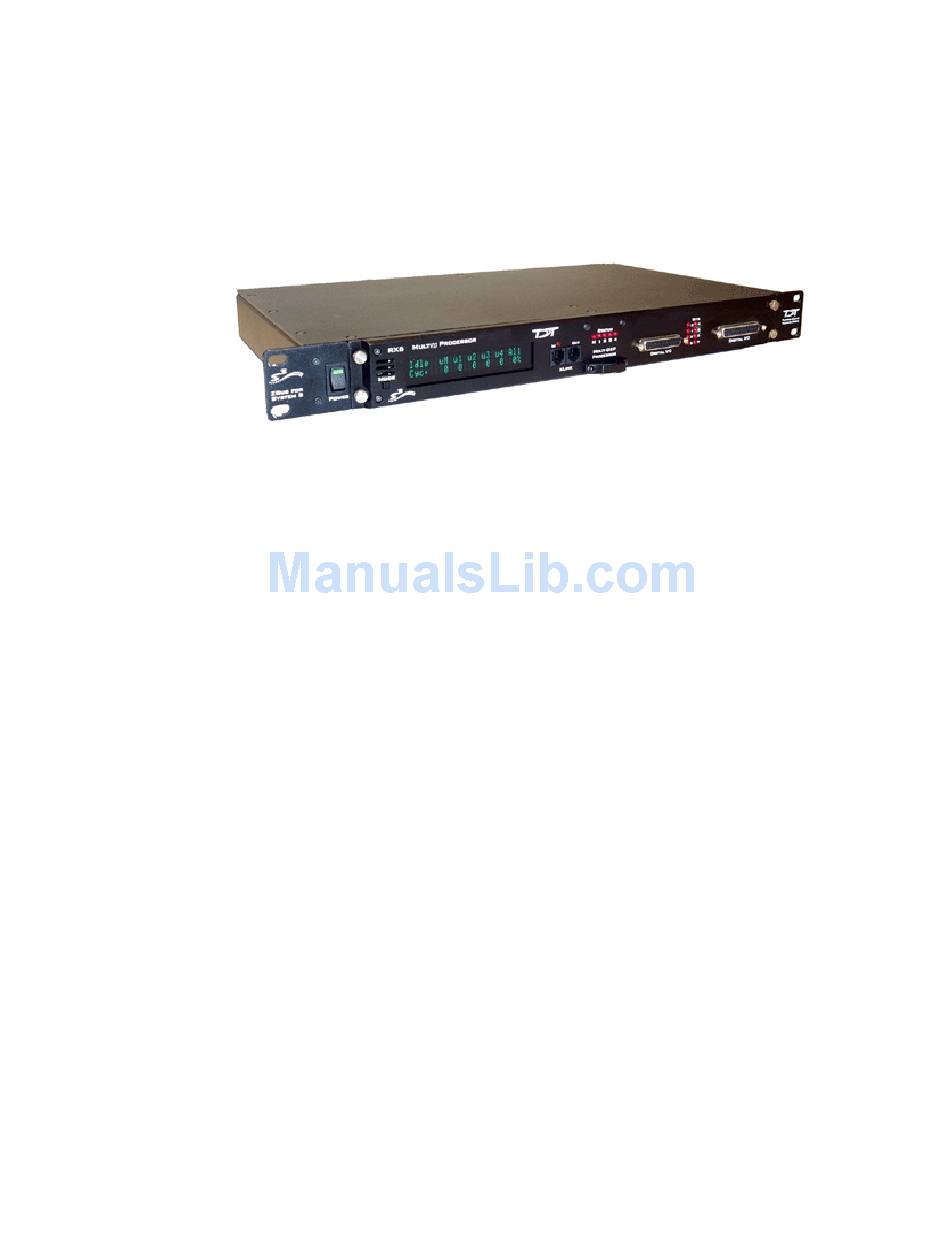

RX8 Overview
The RX8 is a high channel count, high sample rate analog I/O system which
provides a maximum of 24 channels of analog I/O and generates a maximum
sampling rate of 100 kHz per channel. Each bank of four or eight channels of I/O
is user configurable with either PCM or sigma-delta converters. The 24-bit sigma-
delta converters are ideal for audio applications. The 16-bit PCM analog converters
have an excellent dynamic range and almost no group delay. These converters are
excellent for acquiring signal information and controlling external devices, such as
motors.
The RX8 is equipped with either two or five 100 MHz, 1600 MFLOPS Sharc DSPs
and can control audio feedback systems or motor controls in real-time. Built in digital
filters, waveform generators, and logic control components give end users the ability
to design and control virtually any presentation system.
Power and Communication
The RX8 mounts in a System 3 zBus Powered Device Chassis (ZB1PS) and
communicates with the PC using the Optibit (PO5/FO5) PC interface. The ZB1PS
is UL compliant, see the
Software Control
Software control is implemented with circuit files developed using TDT's RP Visual
Design Studio (RPvdsEx). Circuits are loaded to the processor through TDT run-
time applications or custom applications. This manual includes device specific
information needed during circuit design. For circuit design techniques and a complete
reference of the RPvdsEx circuit components, see the
ZB1PS Operations Manual
for power and safety information.
RPvdsEx Manual
.

RX8 Multi I/O Processor

3-3
