ZIF‐Clip® Passive Headstages
ZIF-Clip passive headstages contain no active electronics. They provide passive
cabling in 16, 32, 64, 96, 128 channel ZIF-Clip form factors.
Part Numbers:
ZC16-P – 16 channel ZIF-Clip® passive headstage
ZC32-P – 32 channel ZIF-Clip® passive headstage
ZC64-P – 64 channel ZIF-Clip® passive headstage
ZC96-P – 96 channel ZIF-Clip® passive headstage
ZC128-P – 128 Channel ZIF-Clip® passive headstage
ZIF‐Clip® LED Headstages
Note: ZIF-Clip headstage LEDs cannot be added to existing non-LED headstages.
Part Numbers:
ZC16-LED – 16-channel ZIF-Clip® headstage with LEDs
ZC32-LED – 32-channel ZIF-Clip® headstage with LEDs
ZC64-LED – 64-channel ZIF-Clip® headstage with LEDs
Adapter and Probe Connection
handling.
ZIF-Clip® headstages are designed to automatically position the high density
connectors on the headstage and probe (or adapter).
ZIF-Clip® Analog Headstages

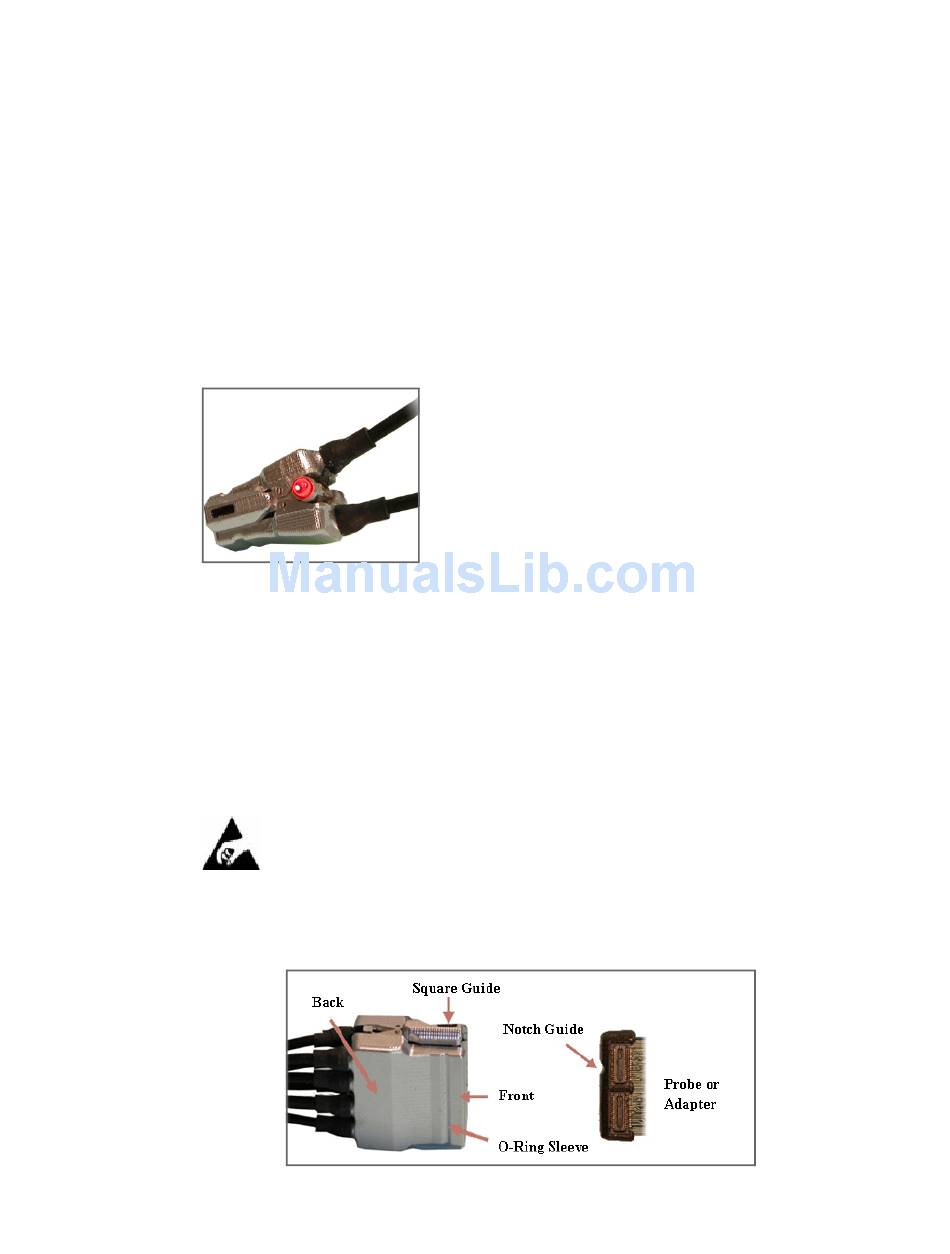

ZIF-Clip LED headstages have built-in red and green
LEDs on each side. The LEDs provide an ample
amount of light for tracking test subjects and are
available for 16, 32 and 64-channel ZIF-Clip standard
headstages.
The headstage has sensitive electronics. Always ground yourself before
Standard ZIF‐Clip® Headstage
