TDT RZ2 Manual page 502

12-20

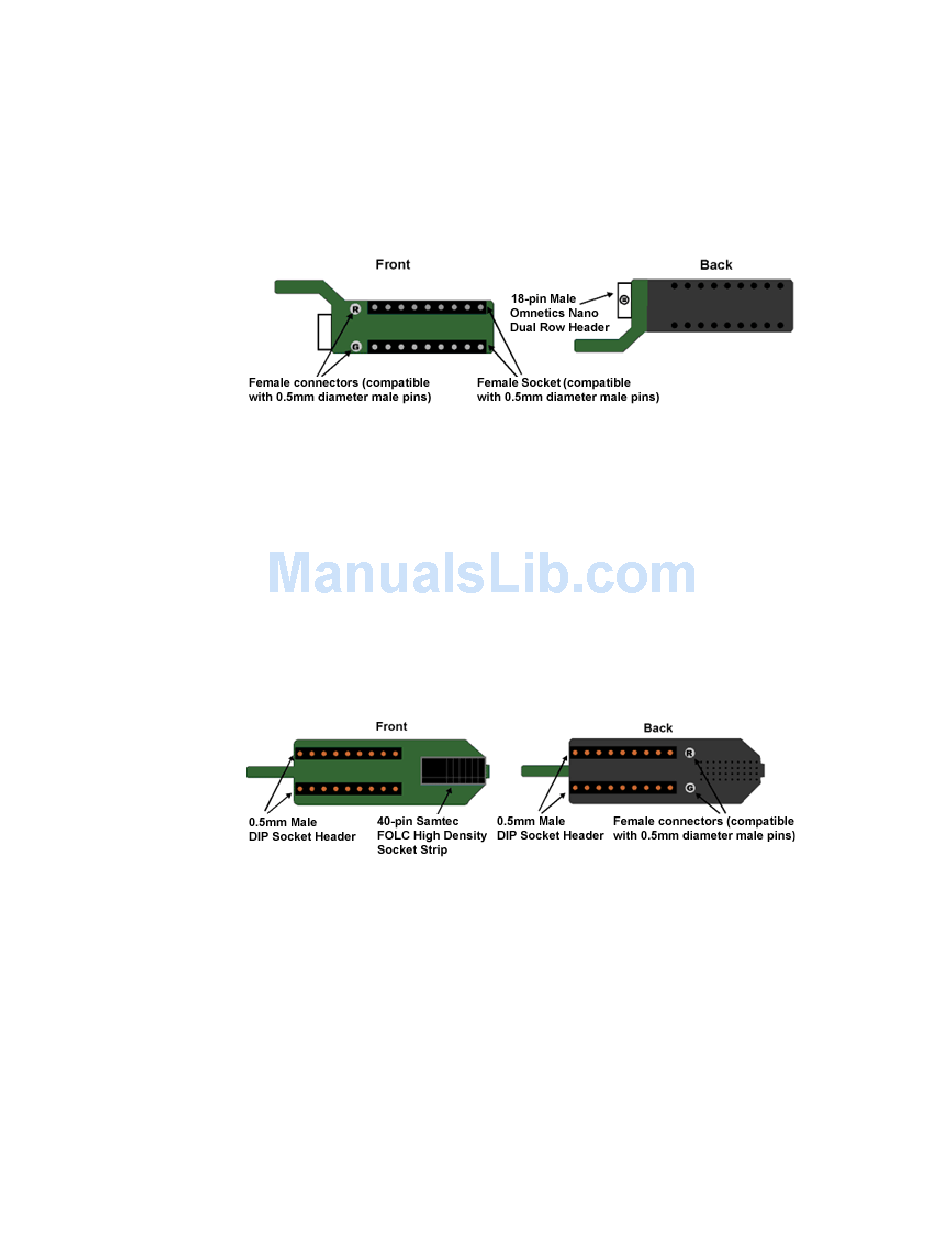

CH‐AC Chronic Headstage to Acute Probe (16
Channels)
The CH-AC adapter connects a 16-channel acute probe to a TDT chronic headstage
(RA16CH). Reference and ground are tied together by default on the chronic
headstage so in general only one pin connection is necessary. A jumper is provided
on the RA16CH for differential operation. See "RA16CH/LP16CH/LP16CH-ZNF - 16
Channel Chronic Headstage" on page 10-42, for information.
Pinouts are looking into the connector and reflect the preamplifier channels.
TDT probe adapters are designed for specific TDT headstage to probe connections. If
you are using a third party headstage, please contact TDT support for assistance.
ACx2‐NN 16 Channel Acute Headstage to 32
Channel Acute Probe
The ACx2-NN adapter connects a 32-channel acute NeuroNexus probe to two 16-
channel acute TDT headstages (RA16AC/RA16AC4). Standard operation with the
NeuroNexus probe is differential. If you wish to use the Reference pad on the probe,
do not tie G and R together.
Pinouts are looking into the connector and reflect the preamplifier channels.
TDT probe adapters are designed for specific TDT headstage to probe connections. If
you are using a third party headstage, please contact TDT support for assistance.
Important! When using these adapters with NeuroNexus probes, keep in mind that there are
several versions of each of the probes. TDTs ACx2-NN is designed for use with
Rev 2 of the 32-channel NeuroNexus acute probe. Check the NeuroNexus website
for pin diagrams. Also see MCMap in the
and examples on how to re-map channel numbers.
Probe Adapters
RPvdsEx User Guide
, for a description
System 3
