TDT RZ2 Manual page 467

System 3

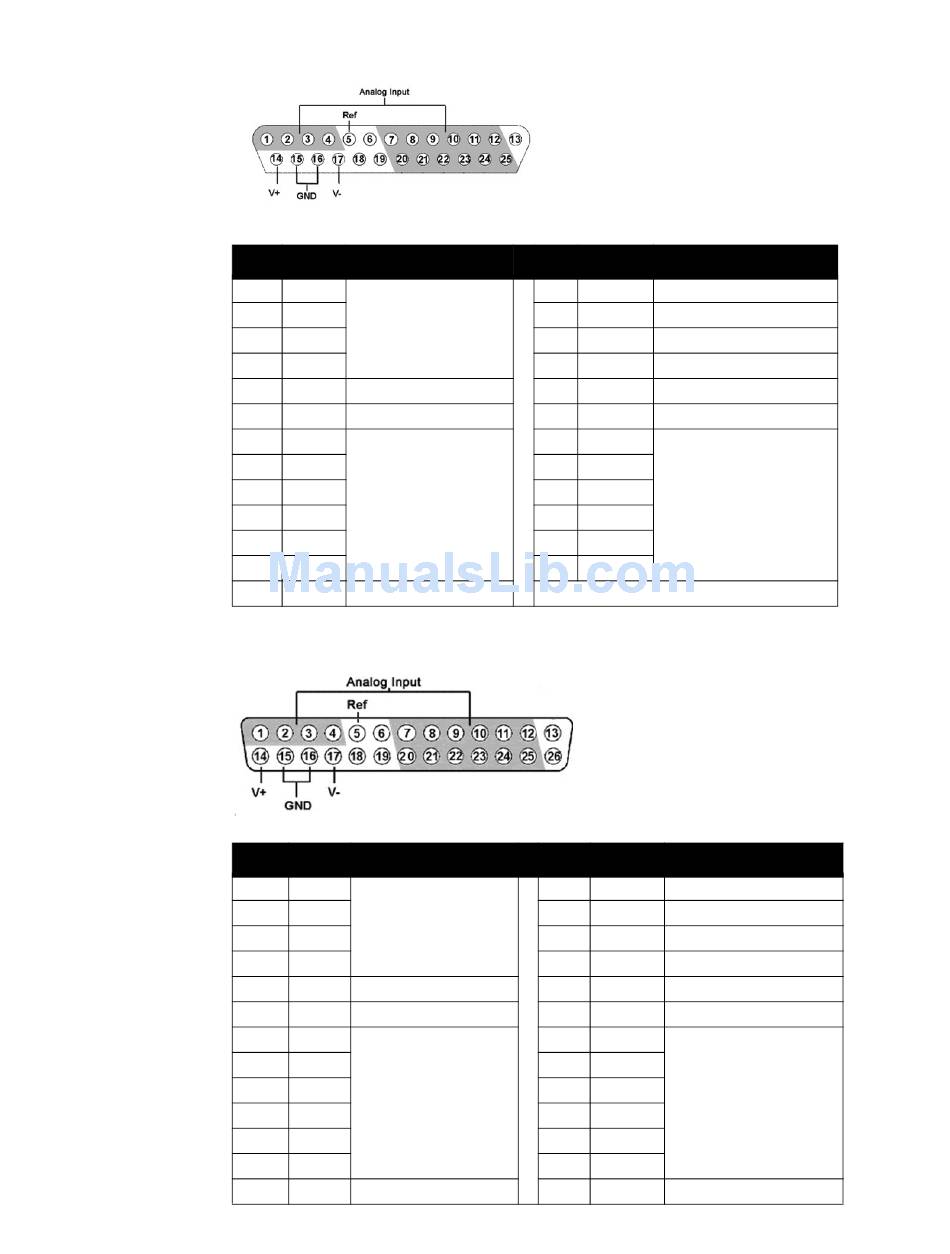

DB25 Pinout Connections for use with Medusa PreAmps
Pin
1 A1
2 A2
3 A3
4 A4
5 REF
6 NA
7 A5
8 A7
9 A9
10 A11
11 A13
12 A15
13 NA
Mini DB26 Pinout Connections for use with PZ PreAmps
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
Name Description
Analog Input Channel
Number Ch 1-4
Reference Pin
Not Used
Analog Input Channel
Number Ch 5, 7, 9,
11, 13, and 15
Not Used
Name Description
A1
Analog Input Channel
A2
Number Ch 1-4
A3
A4
REF Reference Pin
NA Not Used
A5 Analog Input Channel
Number Ch 5, 7, 9,
A7
11, 13, and 15
A9
A11
A13
A15
NA Not Used
Pin Name Description
14 V+ Positive Voltage
15 GND Ground
16 GND Ground
17 V- Negative Voltage
18 NA Not Used
19 NA Not Used
20 A6 Analog Input Channel
Number Ch 6, 8, 10, 12,
21 A8
14, and 16
22 A10
23 A12
24 A14
25 A16
Pin Name Description
14 V+ Positive Voltage
15 GND Ground
16 GND Ground
17 V- Negative Voltage
18 NA Not Used
19 NA Not Used
20 A6
Analog Input Channel
21 A8
Number Ch 6, 8, 10,
22 A10
12, 14, and 16
23 A12
24 A14
25 A16
26 NA Not Used
SH16 Switchable Headstages
10-53
