MS2 Monitor Speaker
MS2 Overview

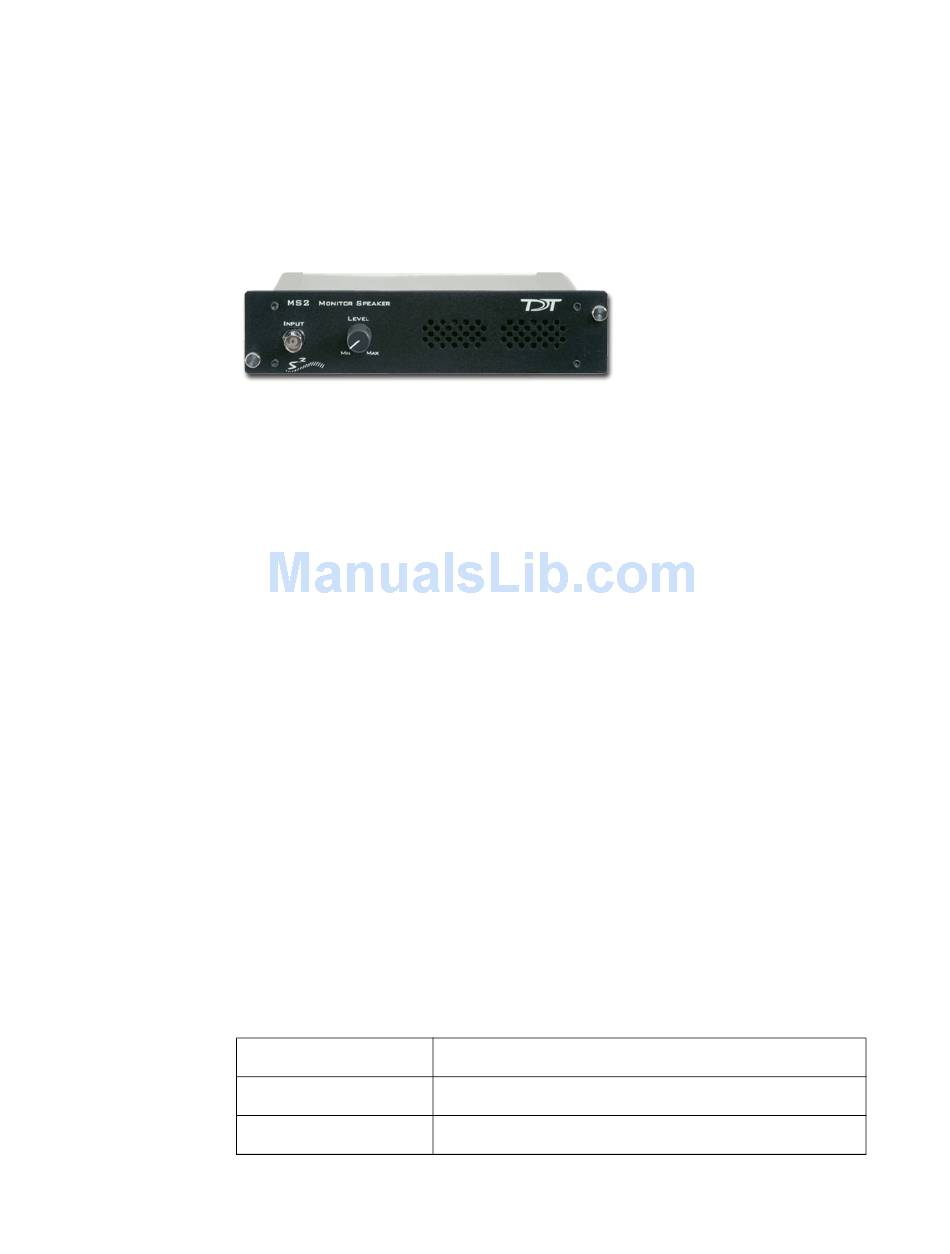

The MS2 Monitor Speaker is used as an audio monitor for signals up to ± 10 V.
The MS2 output level is controlled manually using a 1-turn potentiometer on the front
panel interface. Maximum output is greater than 90 dB SPL at 10 cm. The
frequency response ranges from 300Hz to 20 kHz. A typical use of the MS2 is for
audio monitoring of electrophysiological potentials.
Power
The MS2 Monitor Speaker is powered via the System 3 zBus (ZB1PS). No PC
interface is required.
MS2 Features
Manual control is via a single LEVEL knob, which provides control over the signal
output level. The MS2 has one input channel for signals up to ±10 V, accessed
through a front panel BNC connector
The MS2 is useful for monitoring the output signal that may be going to headphones
in a soundproof room and for monitoring physiological signals that are being acquired,
such as neurophysiology recordings.
MS2 Technical Specifications
Input Signal Range
Max Output
Input Impedance
±10V peak
> 90 dB SPL at 10 cm
10 kOhms
16-25

MS2 Monitor Speaker
