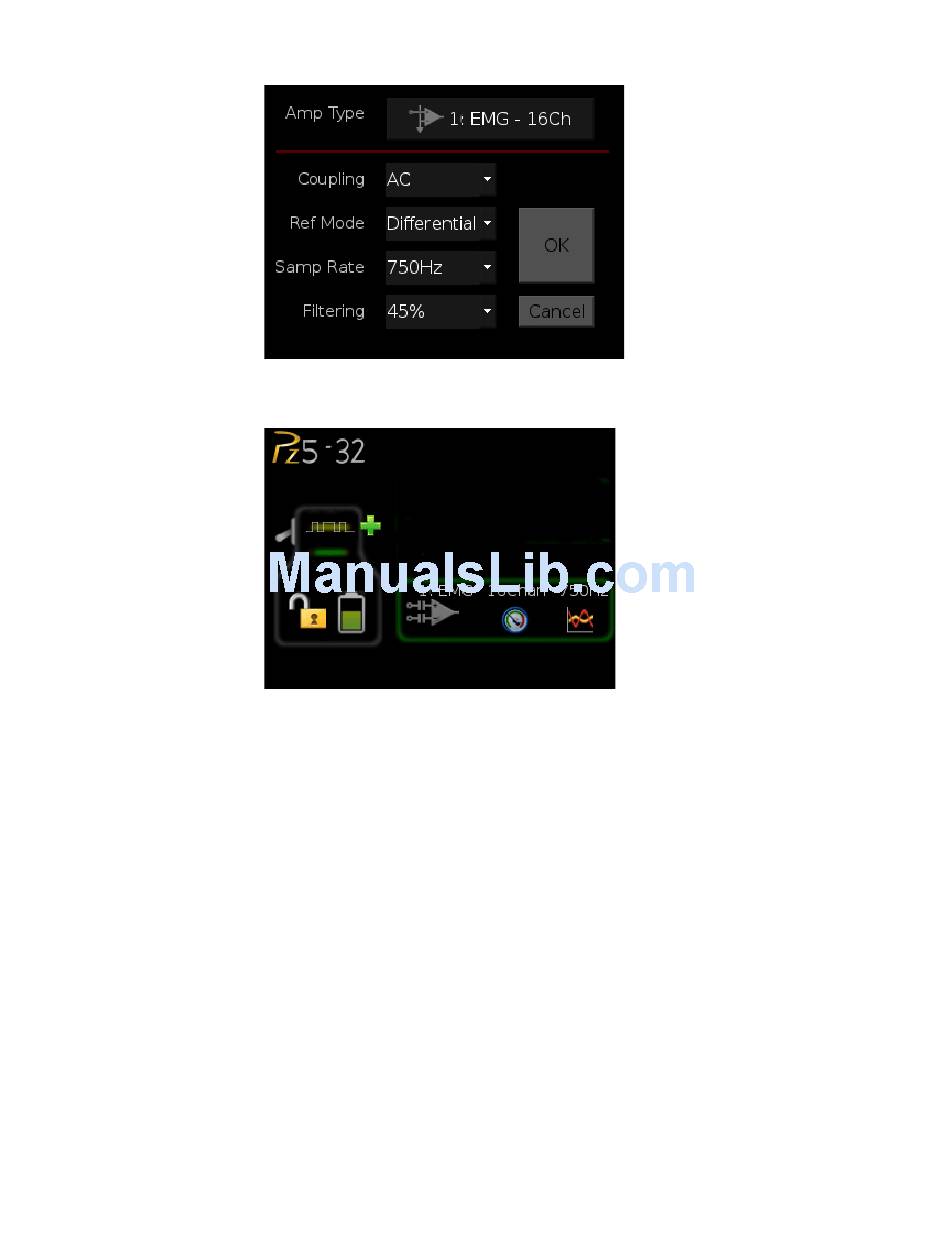

5. Touch the OK button. The Configuration Options screen is displayed.
6. Make any desired changes to the default settings then touch the OK button
7. To configure additional logical amplifiers, repeat these steps as needed.
The sections below provide additional information and serve as a reference for each
screen.
Main Configuration Screen
The Main Configuration screen provides a touchscreen interface for configuring logical
amplifiers and previewing waveforms in real-time. It also provides access to the PZ5
settings, such as the screen auto lock and auto sleep features, as well as tools for
viewing system information, such as battery status, and updating the device software.
PZ5 NeuroDigitizer
to save the selections and return to the Main Configuration screen.
The logical amplifier is configured and a representative diagram is added to
the screen.
