Power and Communication
The RZ6's Optibit optical interface ensures fast and reliable data transfer from the
RZ6 to the PC and is integrated into the device. Connectors are provided on the
back panel and are color coded for correct wiring. The RZ6's power supply is also
integrated into the device and is shipped from the factory configured for the desired
voltage setting (110 V or 220 V). If you need to change the voltage setting,
please contact TDT support at 386.462.9622 or email support@tdt.com.
The RZ6 is UL compliant, see the
and safety information.
Software Control
TDT Synapse or BioSigRZ software controls the RZ6 and provides users a high level
interface for device configuration. Device programming is implemented with circuit files
developed using TDT's RP Visual Design Studio (RPvdsEx). Circuits are loaded to
the processor through TDT run-time applications or custom applications. Several RZ6
macros are provided and are required to handle all programmable features related to
the RZ6. This manual includes device specific information needed during circuit
design. For circuit design techniques and a complete reference of the RPvdsEx circuit
components, see the
RZ6 Multi‐Bus Architecture
The RZ6 processor utilizes a multi-bus architecture and offers four dedicated, data
buses for fast, efficient data handling. While the operation of the system architecture
is largely transparent to the user, a general understanding is important when
developing circuits in RPvdsEx.
RZ6 Multi I/O Processor
RZ5/RZ5D/RZ6 Operations Manual
RPvdsEx Manual
.

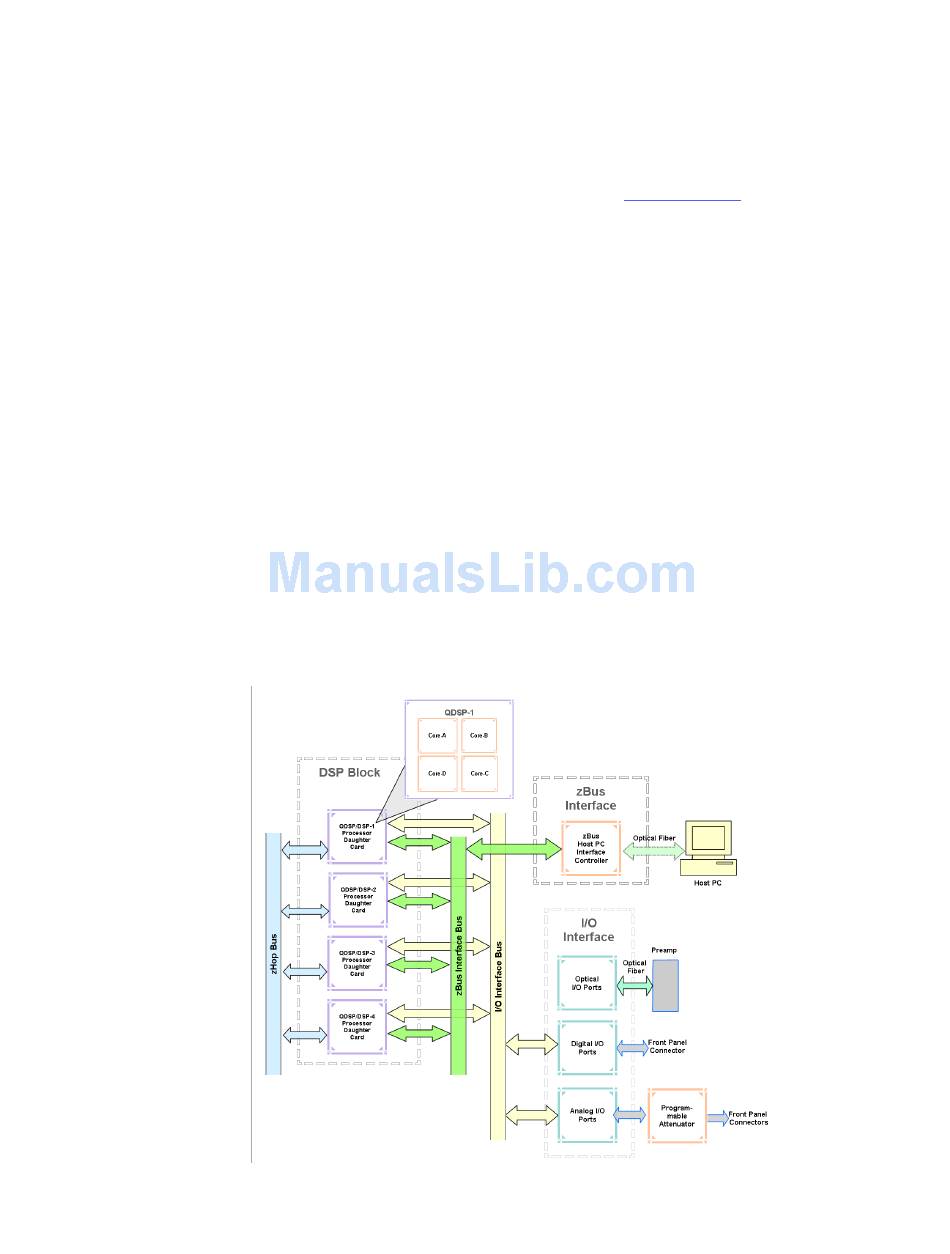

RZ6 Architecture Diagram
System 3
for power
