TDT MF1 Quick Set-Up Manual And Fast Facts Manual

Fast Facts

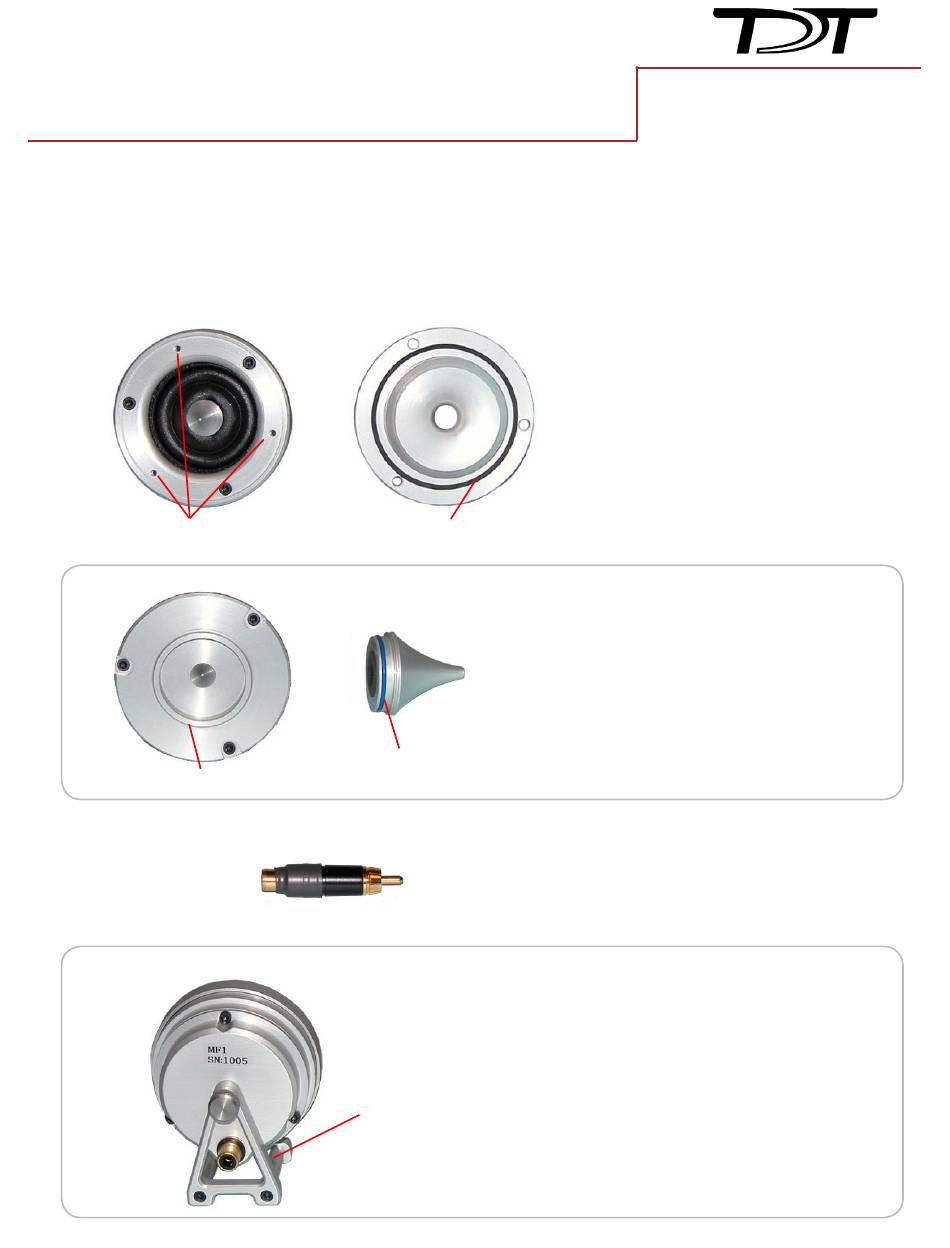

Configuring the MF1 for Closed Field Operation
Important: Closed Field Adapter, Tip, and CF Line Filter used only for Closed Field Configuration!
1.
Front of Speaker
Holes for Hex Screws
Speaker with CF Adapter
2.
Groove for Tip
3.
For Closed Field Configuration Only
4.
Back of CF Adapter
Black O-ring
3mm Tube Tip
Blue O-ring
CF Line Filter
Back of Speaker
(shown with included stand)
Amplifier Line In
Ensure Black O-ring is in place on
back of CF Adapter, as shown.
Attach the CF Adapter to the front
of the speaker using three of the
provided 1/4 x 4-40 hex screws.
Ensure the blue O-ring is in place at
the base of the tip, as shown.
Insert the tip into the groove on
the CF adapter. Ensure the tip is
bottomed in its socket.
Gently insert the tube into the narrow
end of the tip.
Attach the CF filter to the provided
RCA cable.
Attach a BNC to RCA adapter to the
BNC amplifier port of your source
device.
Connect the MF1 to the amplifier
using the RCA cable (with CF filter
attached).
See the System 3 Manual for more
information on the MF1 Speaker.
