TDT RZ2 Manual page 433

System 3

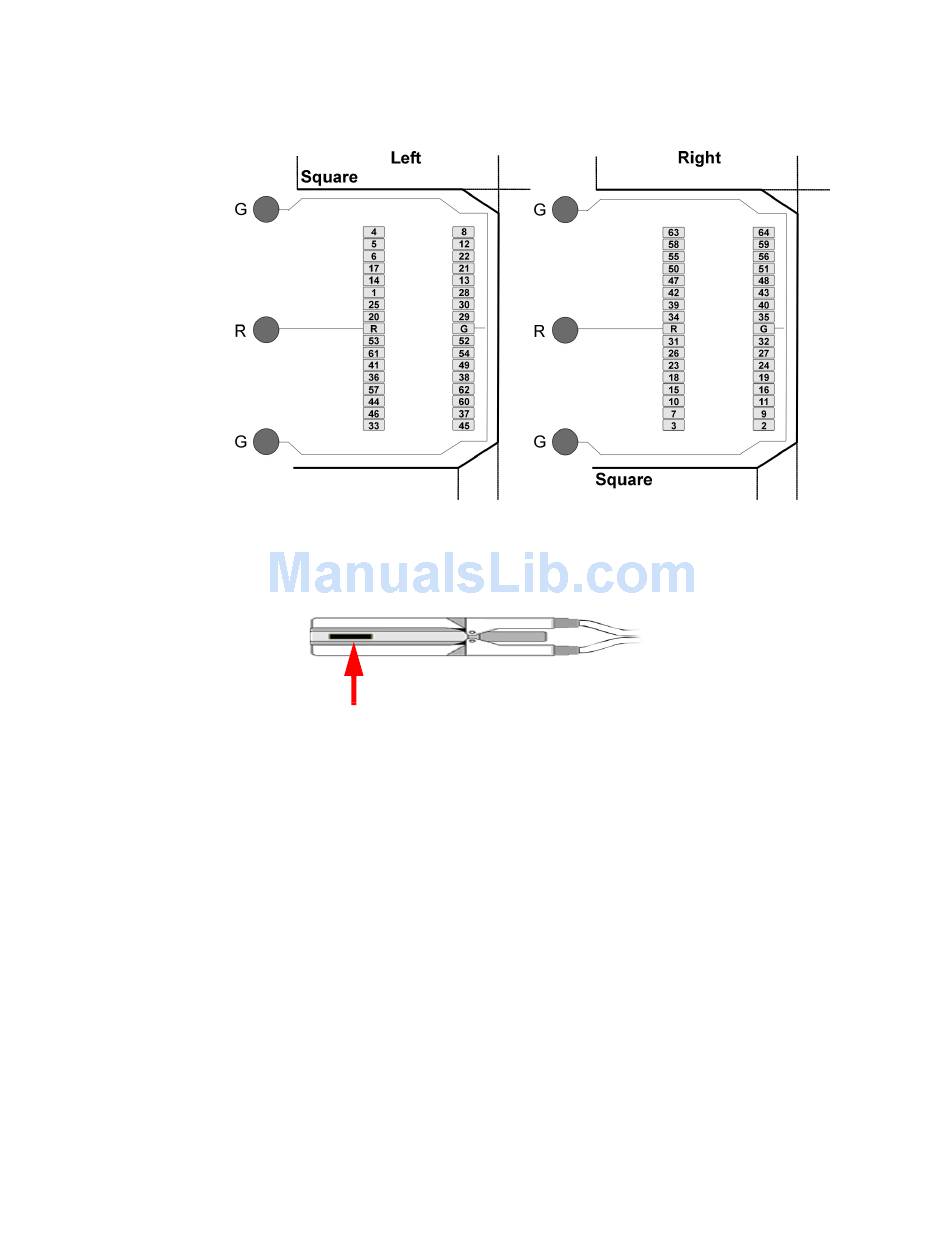

64‐Channel Headstage Pinouts
Images are not to scale. Pinouts are looking through the headstage shell (or into a
matching board connector). All board dimensions are in millimeters and are identical
for both sides, board thickness is 0.75 mm, and connectors are centered as shown.
G Common/Ground Connection
R Reference Connection
See Hirose specification for recommended footprint.
Hirose Connectors:
ZD64 - DF30FC-34DS-0.4V x 2
Square Guide
Right
Left
ZIF-Clip® ZD Digital Headstages
10-19
