Gigabit Interface
PI5 Overview

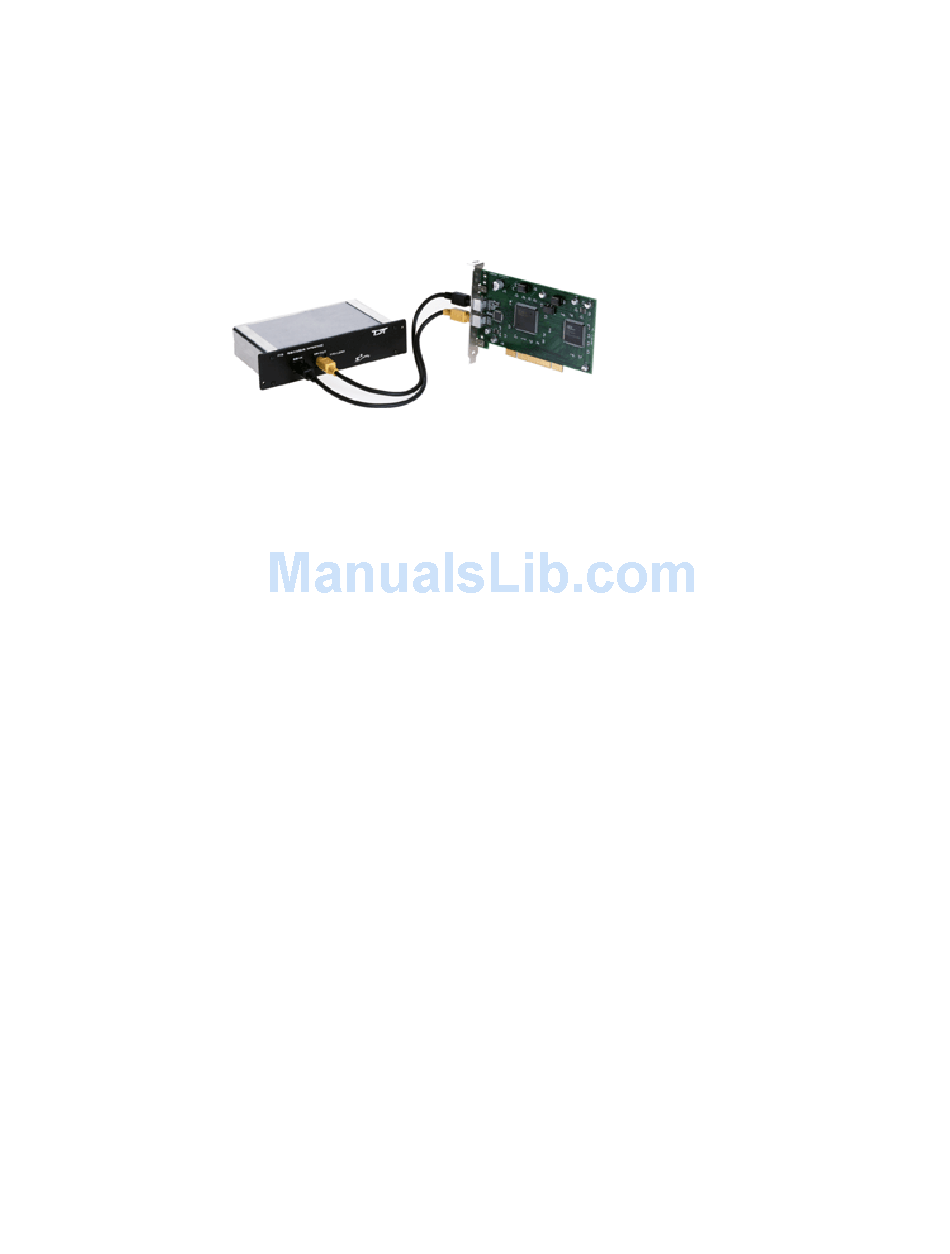

The Gigabit system is no longer available. It consists of a PCI card (PI5) that fits
in the computer and one or more GBit-to-zBus interface modules (FI5) that mounts
in the rear slot of a zBus device chassis. Devices are connected in a simple loop
using provided cabling. When using the gigabit-interface all devices (across all
chassis) are automatically phase locked to a single clock. Over 100 devices can be
connected in a single Gigabit loop with automatic device identification and system
initialization.
Part Numbers:
PI5—PCI Card for Hardware/Software Control
FI5—PI5 to zBus Interface
PI5 Technical Specifications
The PI5 zBus to PC interface card must be installed in a standard size, PCI v 2.2
or greater, compliant 3.3 V slot.
Maximum cable length: 30 meters
Interface Transfer Rates vary by transfer type and device.
Notes: Do not install in a PCI-X slot—the interface might fail.
Do not attempt to install in low-profile PCI slots. While low profile and standard PCI
cards maintain the same electricals, protocols, PC signals, and software drivers as
standard PCI expansion cards, the low profile bracket is not compatible with standard
cards.
Gigabit Anomalies and Tech Notes
The PI5 is not compatible with the WindowsXP and 2000 Standby and Hibernate
features. We recommend configuring PC Power Options to never use these modes
for any PC used to run TDT applications.
