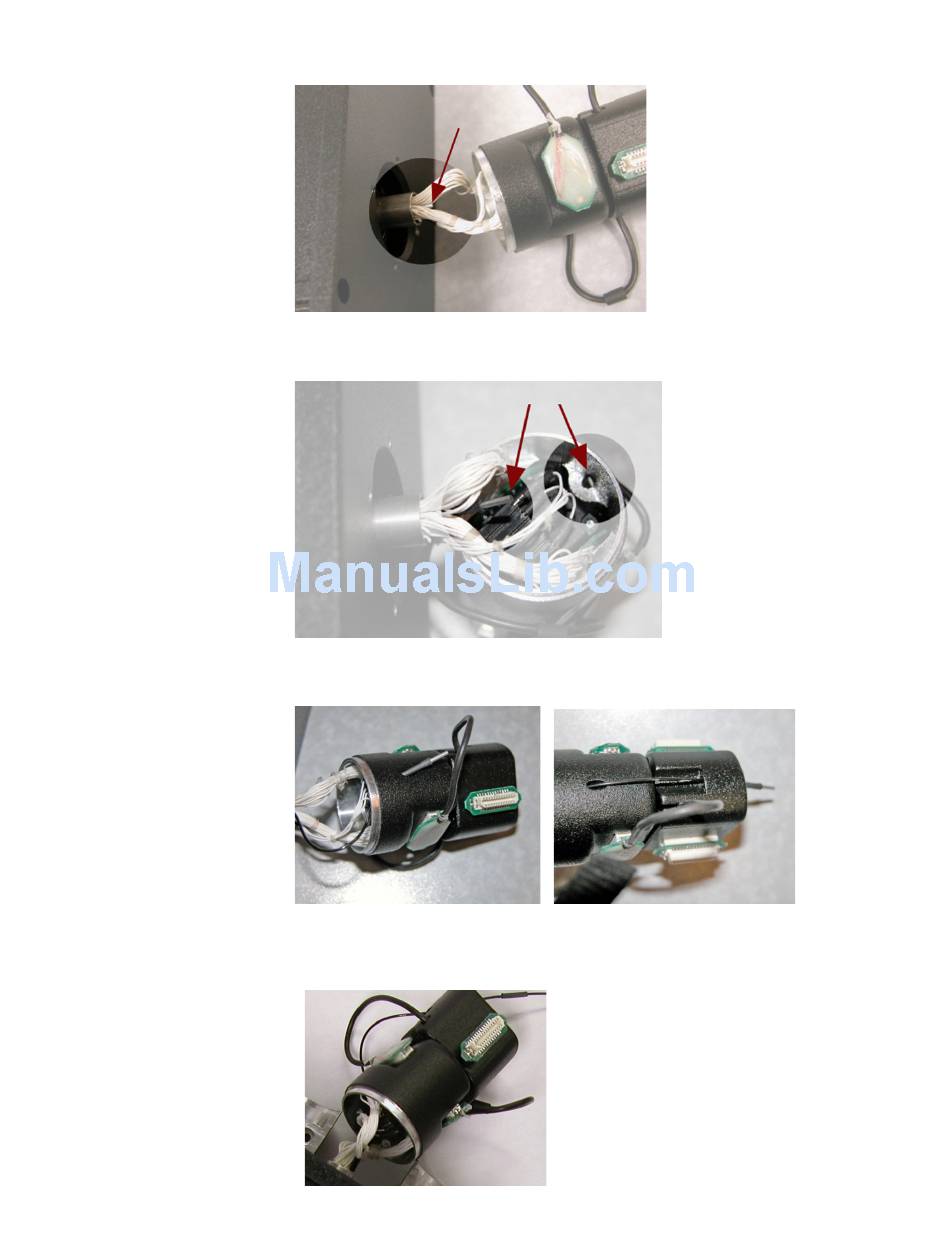

2. Slowly push fiber through hole until the end appears among the wires on the
3. Using a pair of tweezers, carefully pull the end of the fiber and insert it into
4. Pull the end of the fiber through the hole and insert it through the hole in
5. Leave enough slack in the section of fiber between the encoder and
other side of the ACO32.
the hole next to the encoder.
the groove of the connector module.
connector modules to match the loop of the other wires. A small lightweight
tie can be loosely attached to hold the fiber adjacent to the wires.
