- Page 1 WS4/WS8 Computer Workstation Hardware Reference Updated 2022-10-31...
- Page 2 WS4/WS8 Computer Workstation | 2 © 2016-2022 Tucker-Davis Technologies, Inc. (TDT). All rights reserved. Tucker-Davis Technologies 11930 Research Circle Alachua, FL 32615 USA Phone: +1.386.462.9622 Fax: +1.386.462.5365 Notices The information contained in this document is provided "as is," and is subject to being changed, without notice.
-
Page 3: Table Of Contents
Table of Contents | 3 Table of Contents WS4/WS8 Computer Workstation WS Overview Power and Interface WS Hardware Setup Connecting Multiple Devices WS Features LED Display System Hard Drive (C:) Data (D: & E:) USB Ports Video Support Input/Output Connections... -
Page 4: Ws4/Ws8 Computer Workstation
Additional storage drives are available from TDT. The WS is available in two configurations. The WS8 is optimized for the most demanding applications, including high-channel count neurophysiology. The WS4 is targeted for less demanding applications, such as ABR and DPOAE testing with BioSigRZ software or fiber photometry. -
Page 5: Power And Interface
WS4/WS8 Computer Workstation | 5 Power and Interface The WS comes factory installed with an Optibit optical interface card. The power supply is auto-switching for 110 V or 220 V. A soft on/off button is provided on the front panel and a hard power cutoff switch is provided on the back panel. - Page 6 WS4/WS8 Computer Workstation | 6 Multiple RZ Processors Mixed RZ and RX or RP Processors...
-
Page 7: Ws Features

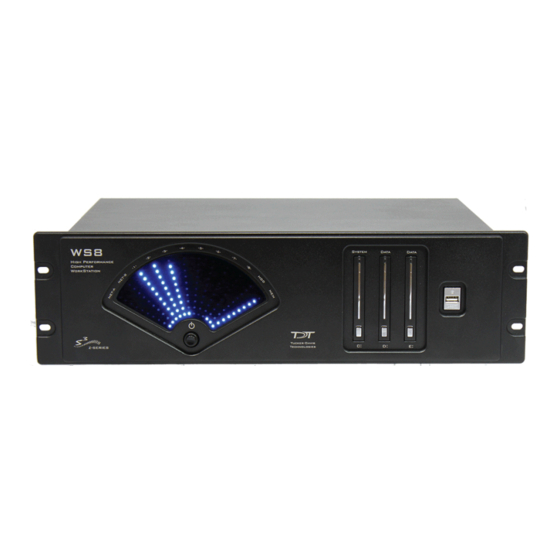

WS4/WS8 Computer Workstation | 7 Multiple ZB1 Mounted Devices (RX, RP, PA5) WS Features LED Display The LED display provides visual representation of system performance. The display includes 12 angled lines of LEDs representing percentage of performance capacity in use, from 0 - 100%, for each system element. -
Page 8: Data (D: & E:)
WS4/WS8 Computer Workstation | 8 Data (D: & E:) The WS supports up to two removable data drives for storage of experiment data. The drives slots are accessible from the front panel and are labeled D: and E:. The standard system ships with one storage drive and additional drives may be purchased separately. -
Page 9: Video Support
The WS4 (SN >2000) supports up to two monitors. One DVI to HDMI cable is provided*. Note * WS4 (SN >2000) built after approximately 29 June 2021 may have a mini-Display Port to Display Port (DP) adapter and a DP-DP cable instead. -
Page 10: Input/Output Connections
WS4/WS8 Computer Workstation | 10 Input/Output Connections The WS includes standard connections for keyboard, mouse, and audio input/output lines. Two Gigabit Ethernet ports and an RS232 type serial port are also provided. Back Panel Connections WS serial number 2000 and above 1. -
Page 11: Connector Panel
WS4/WS8 Computer Workstation | 11 Note * WS4 (SN >2000) built after approximately 29 June 2021 may have three mini-Display Port connectors instead. Connector Panel 1. Serial (RS232) port 5. USB 3.0 2. DVI-D * 6. Gigabit Ethernet 3. Display Port / HDMI * 7. -
Page 12: Ws8 Technical Specifications
WS4/WS8 Computer Workstation | 12 Warning * Do not connect a monitor to the motherboard video connections (labeled '2' and '3'). Only connect monitors to the graphics card (labeled '4' in the Back Panel Connections). WS8 Technical Specifications s/n >2000: 4.0 GHz Intel Core i7-6700K s/n <2000: 3.4 GHz Intel Core i7-3770... -
Page 13: Ws4 Technical Specifications
WS4/WS8 Computer Workstation | 13 WS4 Technical Specifications s/n >2000: 3.5 GHz Intel Core i5-6600K s/n <2000: 3.4 GHz Intel Core i5-3570 Memory s/n >2000: 4 GB DDR4-2133 s/n <2000: 4 GB DDR3-1600 Video Card s/n >2000: GeForce GT 1030 with 2 GB RAM Built after appox.
