System 3
Differential Reference Mode

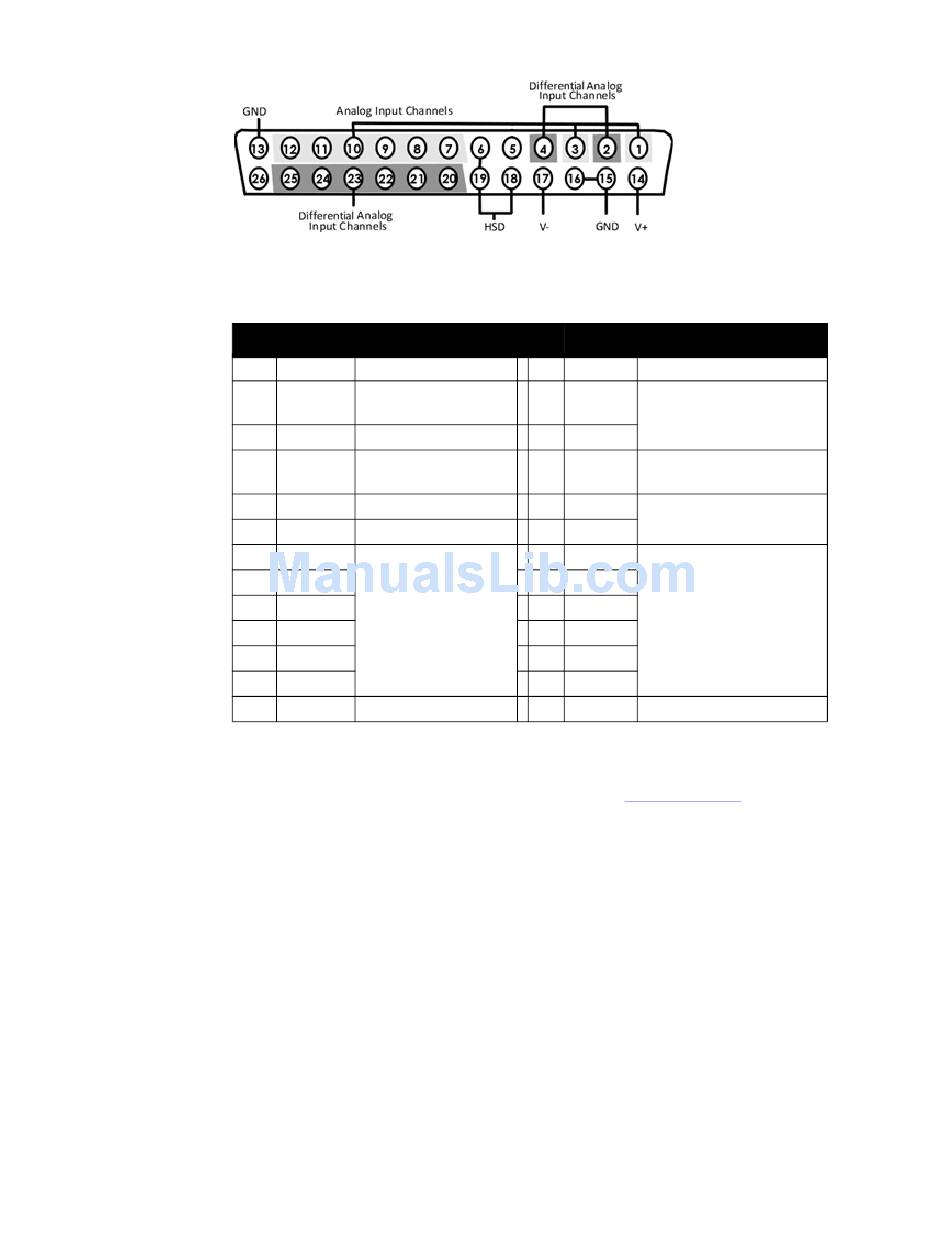

Note: There are 8 (+) channels and 8 (-) channels per DB26 connector. Subsequent
banks are indexed by an additional 8 channels.
Pin
1 A1(+)
2 A1(-)
3 A2(+)
4 A2(-)
5 NA
6 HSD
7 A3(+)
8 A4(+)
9 A5(+)
10 A6(+)
11 A7(+)
12 A8(+)
13 GND
Note: Contact TDT technical support (386-462-9622 or support@tdt.com) before
attempting to make any custom connections.
Digital Connectors
The digital input connector is a self-aligning 12-pin Omnetics PZN-12 polarized nano
connector that mates directly to an Intan RHD2000 SPI interface cable.
Name Description
Analog Input Channel
Differential Analog
Input Channel
Analog Input Channel
Differential Analog
Input Channel
Not Used
Headstage Detect
Analog Input Channels
Ground
Pin Name Description
14 V+ Positive Voltage (+2.5V)
15 GND Ground
16 GND
17 V- Negative Voltage (-2.5V)
18 HSD Headstage Detect
19 HSD
20 A3(-) Differential Input Channels
21 A4(-)
22 A5(-)
23 A6(-)
24 A7(-)
25 A8(-)
26 NA Not Used
