TDT RZ2 Manual page 710

20-4
Power Supply
The ZB1PS chassis features an onboard, switchable (115V/220V) power source.
The power supply is integrated into the chassis and cannot be removed. A small fan
is located inside of the power supply and provides cooling while the power supply is
active.
See the
Using the ZB1PS
Applying Power to the Chassis
CAUTION! Allow at least 2 cm clearance from each side of the chassis for
proper cooling. A ventilation fan is provided on the right side of the chassis.
Ventilation holes are also provided on the power supply panel and another internal
fan is provided inside the power supply housing. Installation of the chassis with the
ventilation obstructed may cause a malfunction or fire.
CAUTION! Use only the supplied power cord.
To turn the ZB1PS on:
1.
2. Ensure that the power switch is off then connect the power cord.
3. Ensure that the voltage region switch is set correctly. For standard outlets in
4. Turn the power switch on. The power switch's green LED should be
ZB1PS - Powered zBus Device Chassis
ZBPS1 Operations Manual
Position the chassis so that both the power switch and power cord may be
accessed easily.
the United States it should be switched to 115 V.
illuminated.
for power and safety information.

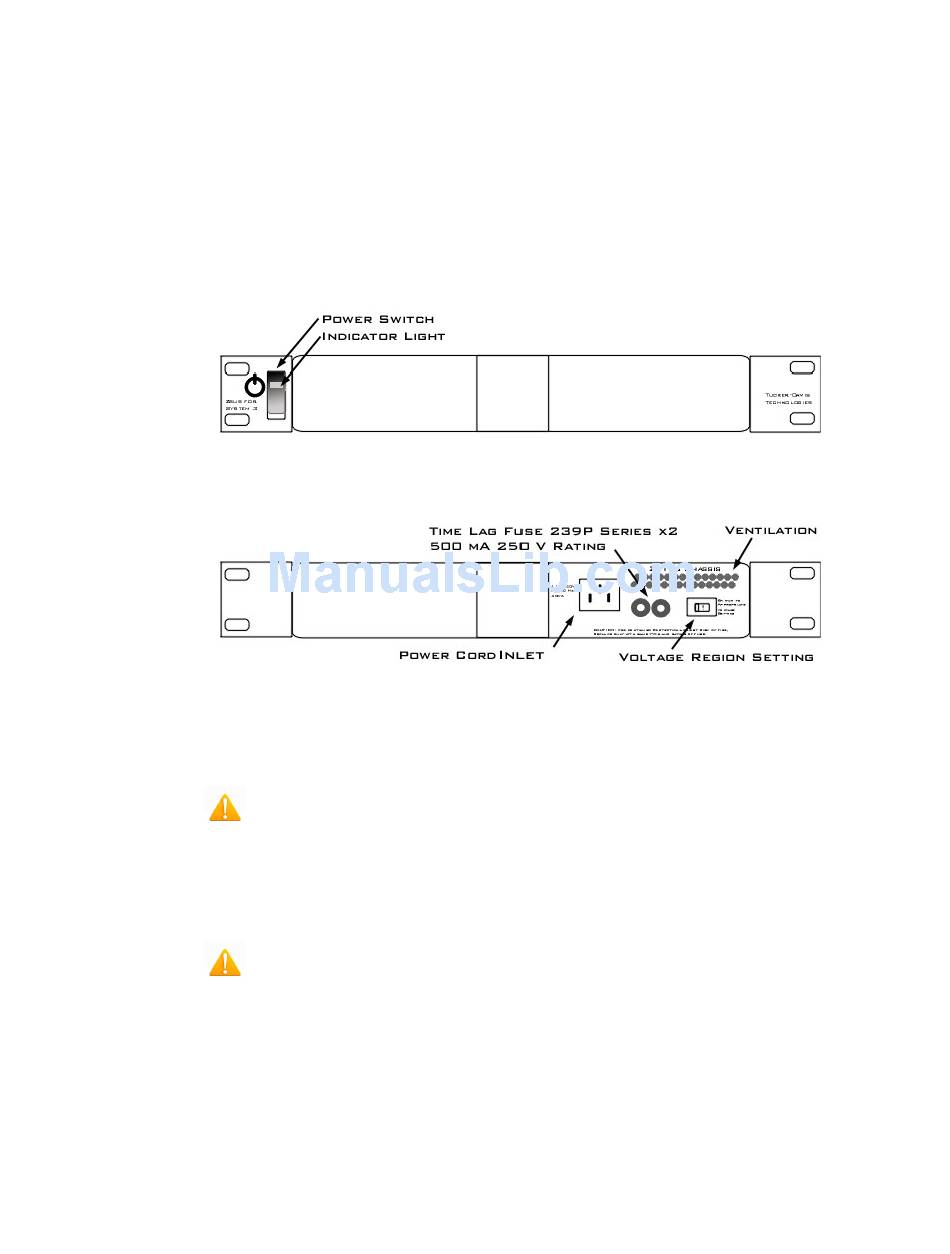

Front View
Back View
System 3
