Functional Signal Flow Diagrams

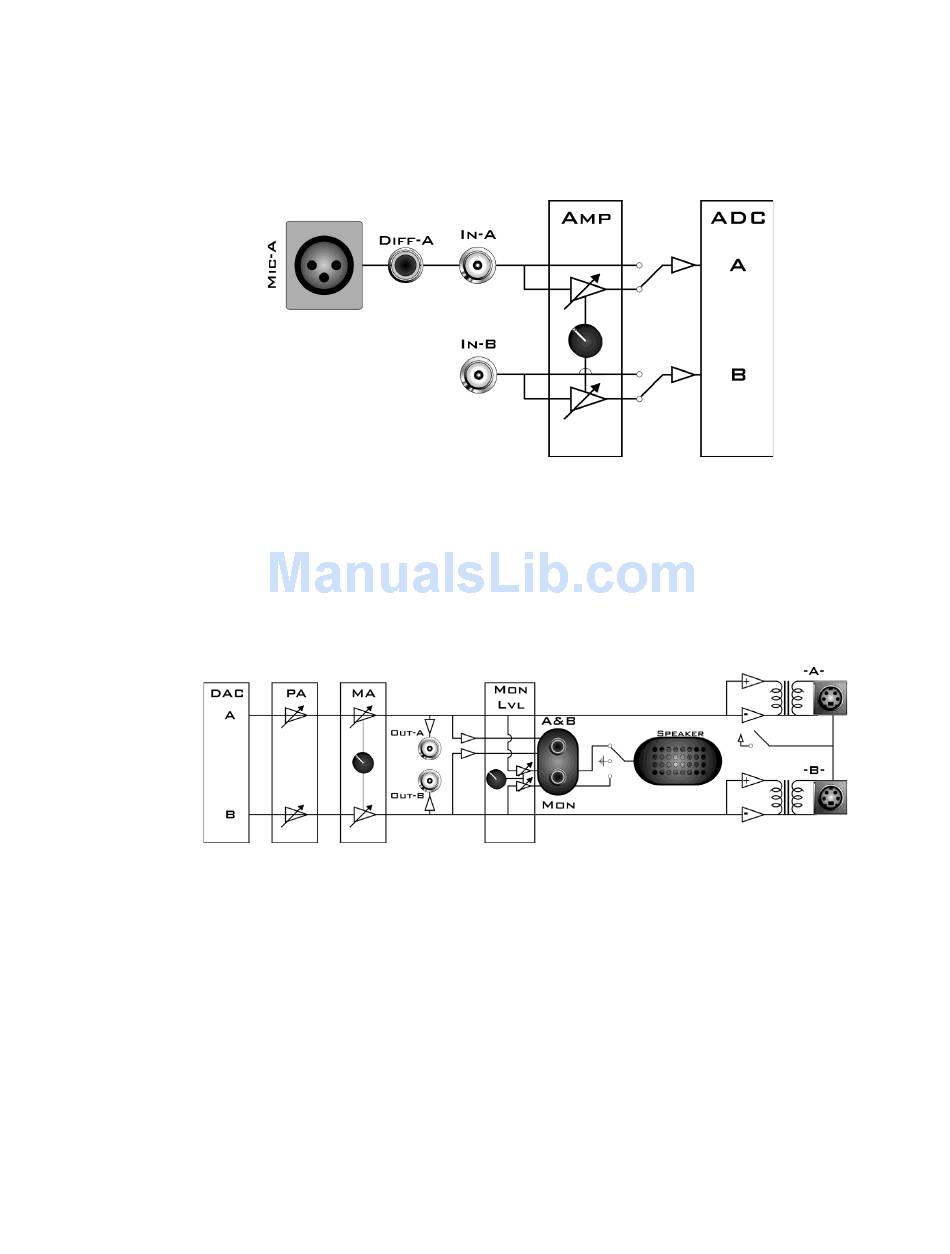

The following diagrams illustrate how analog signals for channels A and B flow
through the RZ6 and its modules. For more information on analog input and output
see "Onboard Analog I/O and Optional Amplifier Input" on page 1-39.
The diagram to the below depicts the analog input flow for the RZ6.
Input signals for channel A are input either through the XLR input (Mic-A), the
audio jack input (Diff-A), or BNC (In-A). Input signals for channel B are input
through the BNC (In-B).
A switch located to the left of the gain control knob allows a single gain setting for
both channels to be applied or bypassed completely.
The diagram below depicts analog output flow through the RZ6.
Signals A and B flow out of the DAC and pass through the programmable and
manual attenuation modules prior to being output on the front panel BNC connectors
(Out-A and Out-B).
The signals for channels A and B are also passed to two stereo headphone output
ports labeled A&B and Mon. Individual stereo power amplifiers are used for the BNC
and stereo headphone outputs.
A single channel monitor speaker is connected either to signal A, signal B, or
disabled based on the monitor control switch setting. The monitor level knob controls
the sound level of both the stereo headphone jack labeled Mon and the monitor
speaker.
Finally, if the electrostatic speaker driver is enabled via its switch, located on the
front panel, signals A and B are output from the mini-DIN ports located on the RZ6
front panel.
RZ6 Multi I/O Processor
RZ6 Analog Input Flow Diagram
RZ6 Analog Output Flow Diagram
