TDT RZ2 Manual page 488

12-6

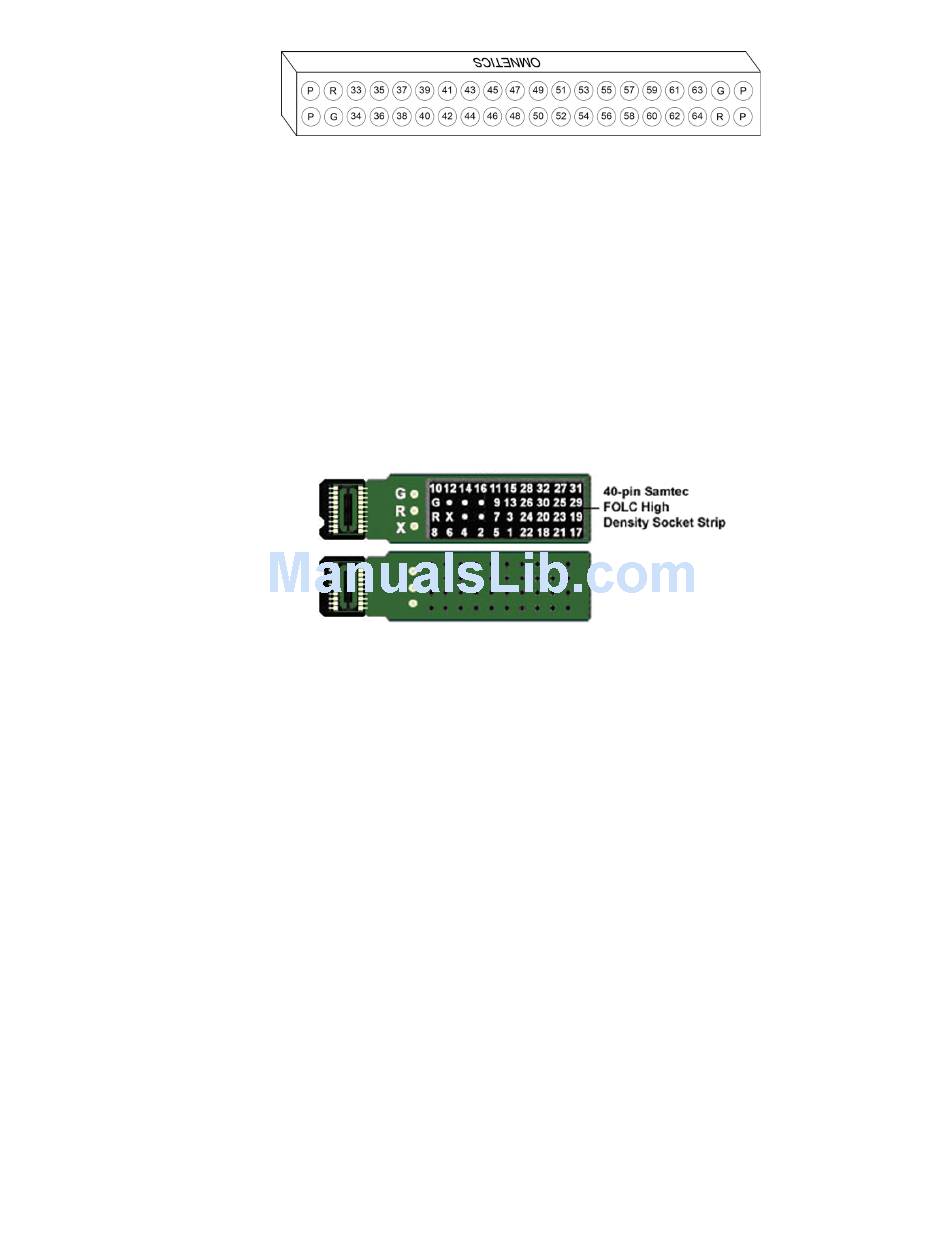

Side B pinouts are looking into the connector and reflect the preamplifier channels
ZCA‐NN32 ZIF‐Clip® Headstage to 32 Channel
Acute Probe)
The ZCA-NN32 adapter connects a 32-channel acute NeuroNexus probe to a 32-
channel ZIF-Clip® headstage.
Note: X (Ref) is a reference pin that is connected from the adapter to the probe only.
See the jumper configuration below for more information.
Pinouts are looking into the connector and reflect the preamplifier channels.
ZCA‐EIB16 ZIF‐Clip® Headstage to Electrode
Interface Board (16 Channels)
The ZCA-EIB16 adapter allows the user to connect 16 channels of electrode wire to
a 16-channel ZIF-Clip® headstage plus ground and reference.
Wires can be soldered to holes or connected using EIB pins, such as the large EIB
tapered pins available from NeuraLynx.
To guard against noise pickup, the lengths of any additional wires should be
minimized and the wires should be bundled together to avoid creating open loops
that can pick up inductive interference.
Specifications:
Hole diameter:
Row Spacing:
ZIF-Clip® Headstage Adapters
.3 mm
0.69 mm from center to center
System 3
